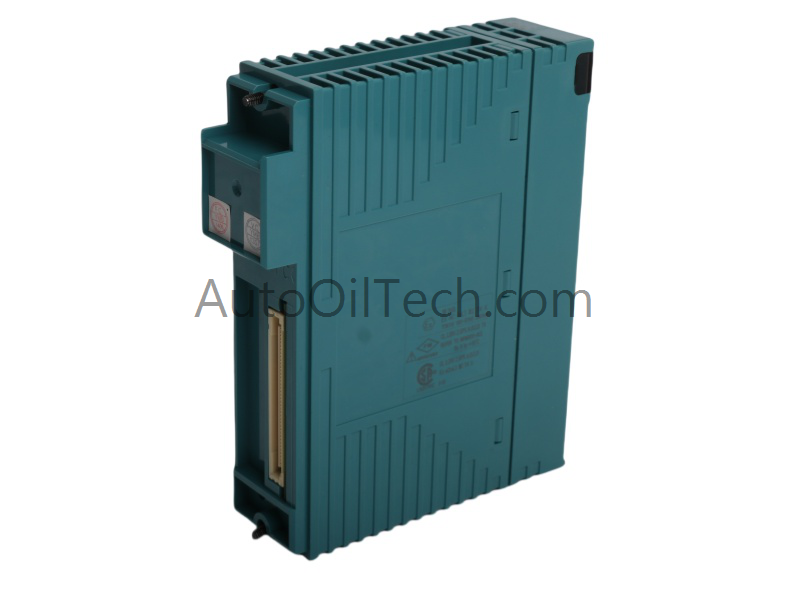

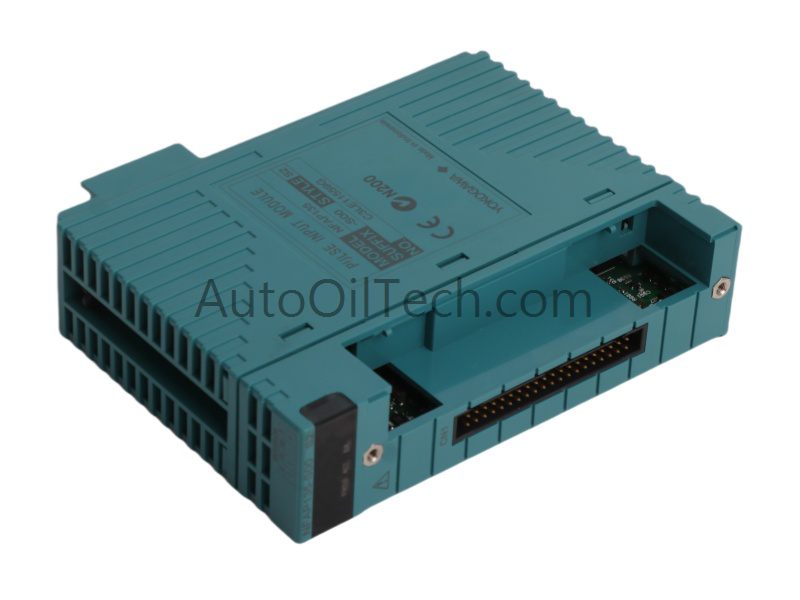

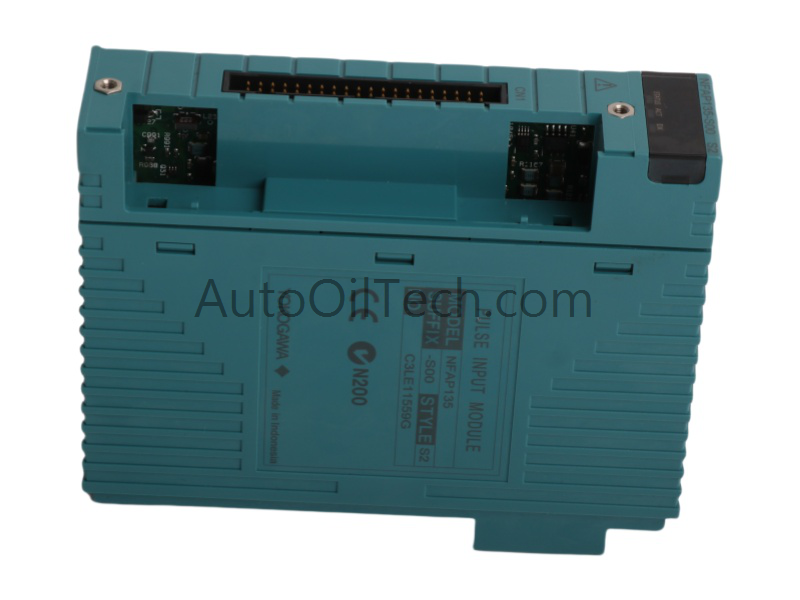

The NFAP135-S00 S2 Pulse Input Module from Yokogawa is engineered for high-speed frequency measurement in industrial automation. With 8 isolated input channels and configurable resistance and voltage settings, it ensures precise signal acquisition and stable performance in demanding environments.
Technical Specifications
Parameter
Value
Model Number
NFAP135-S00 S2
Product Series
Yokogawa
Manufacturer
Yokogawa
Module Type
Pulse Input Module
Input Channels
8 (isolated)
Input Frequency Range
0–10kHz
Minimum Pulse Width
40μs
Data Refresh Cycle
2ms
Shunt Resistance Options
OFF / 200 / 500 / 1000Ω
Pull-Up Resistance
68kΩ
Pull-Up Voltage Options
12V / 24V DC
Transmitter Power Supply
Selectable 12V / 24V DC
Filter Function
Configurable
Dimensions
3.2 × 10.6 × 13 cm
Weight
0.25 kg
HS Code
8537101190
System Compatibility
DCS
Communication Service
Ethernet router
Product Origin
Japan
Condition
Brand New
MOQ
1
Lead Time
In Stock
Lifecycle Status
Active
Applications & Compatibility
The NFAP135-S00 S2 module is ideal for turbine monitoring, production counting, and rotary encoder feedback in high-speed manufacturing. Its isolated design prevents ground loop interference, while selectable resistance and voltage options ensure compatibility with a wide range of pulse-generating sensors. Fully compatible with Yokogawa DCS platforms, it delivers real-time data for precision control and diagnostics.
