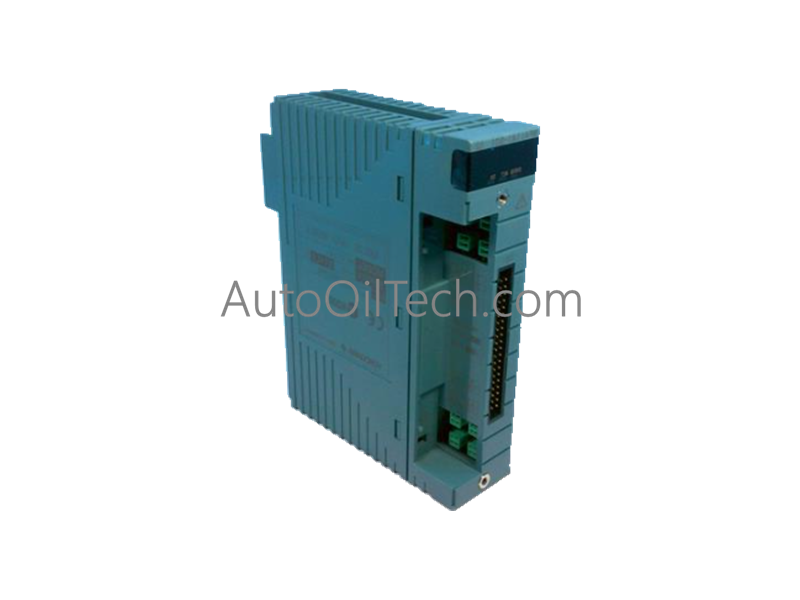

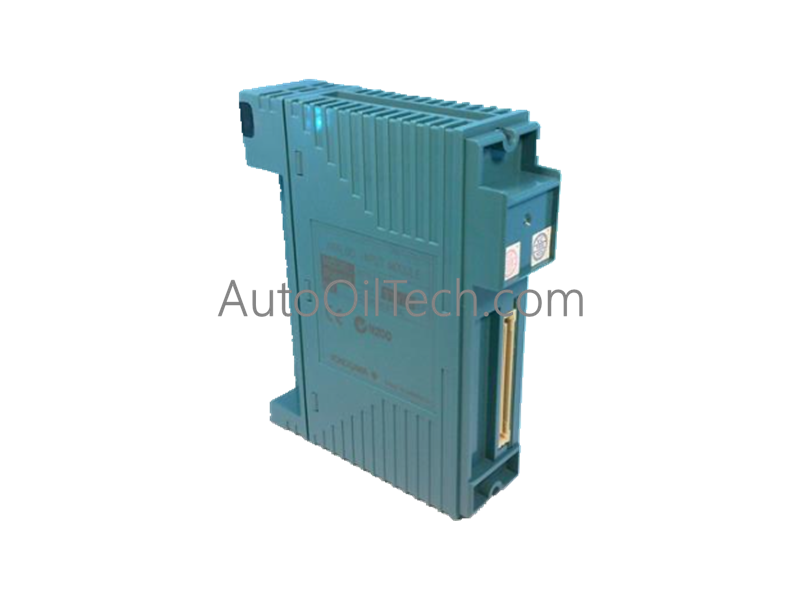

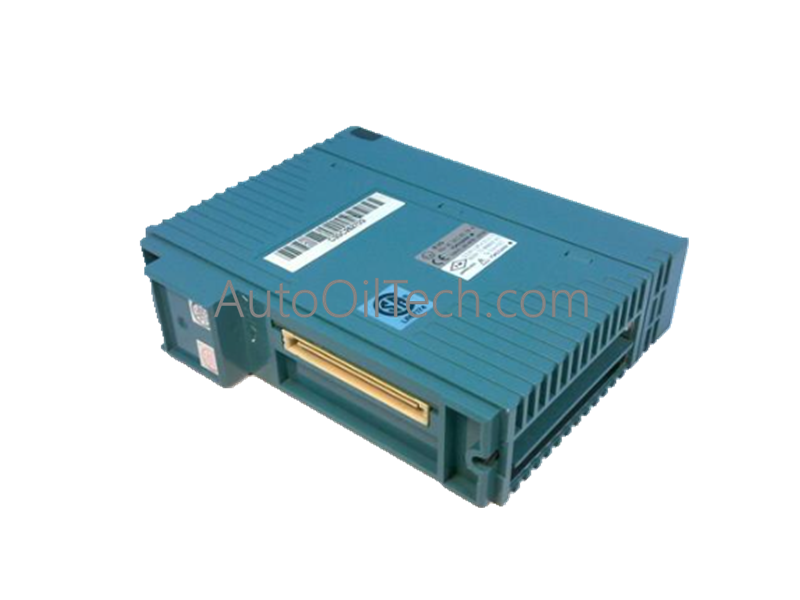

Yokogawa NFAF135-S50 Isolated Analog Input

The Yokogawa NFAI135-S50 operates as a dedicated hardware component for multi-channel current signal evaluation, localized instrument loop regulation, and analog-to-digital parameter conversion within Yokogawa STARDOM FCN/FCJ autonomous controller platforms. Configured with 8 individually isolated tracking paths and built-in transmitter power supplies, the solid-state module provides direct physical/electrical execution to digitize high-accuracy process variables across demanding plant environments.

Hardware Specifications

Process Control & Distributed System Infrastructure

• Channel-to-Channel Isolation and Noise Suppression Rails The hardware architecture enforces full galvanic channel-to-channel and channel-to-system electrical separation rated at 500 V AC for 1 minute. This physical barrier stops ground loop currents and common-mode voltage spikes from propagating between parallel field transmitter circuits, preventing variable data skew on the system bus while maintaining a stable +/- 0.1% full-scale accuracy.
• Dual/Quad Wire Transmitter Conditioning and Impedance Control The module's input channels feature hardware pin configurations supporting both 2-wire (loop-powered) and 4-wire (externally powered) instrumentation networks. During normal operation (Power ON), the channel maintains a standard 250 Ohm precision loop burden; upon a system power loss (Power OFF), the input impedance shifts autonomously to >= 500 kOhm to eliminate parasitic current loading on active field transmitters.

Frequently Asked Questions

Q: How does the integrated 27 mA transmitter power supply current limit protect the control loop during a field wiring fault?

A: If a field instrument malfunction or physical wire short-circuit creates an overcurrent condition, the module's internal power management stage clamps the loop current at a 27 mA maximum threshold. This localized current-limiting action prevents the fault from causing thermal stress, dropping the shared 24 V DC internal distribution rail, or interrupting data acquisition on adjacent operational channels.

Q: What operational latency impacts process variable tracking during rapid step changes in pressure or flow loops?

A: The module executes internal analog-to-digital conversion routines on a continuous 10 ms data refresh cycle, driving a total analog step response time of 100 ms to reach full signal value. This hardware timing constraint is optimized for high-speed industrial control loops, ensuring real-time process parameters update in the controller memory without introducing signal processing lag.
