Yokogawa F3YD18-0N Transistor Output Module

Yokogawa F3YD18-0N Transistor Output Module

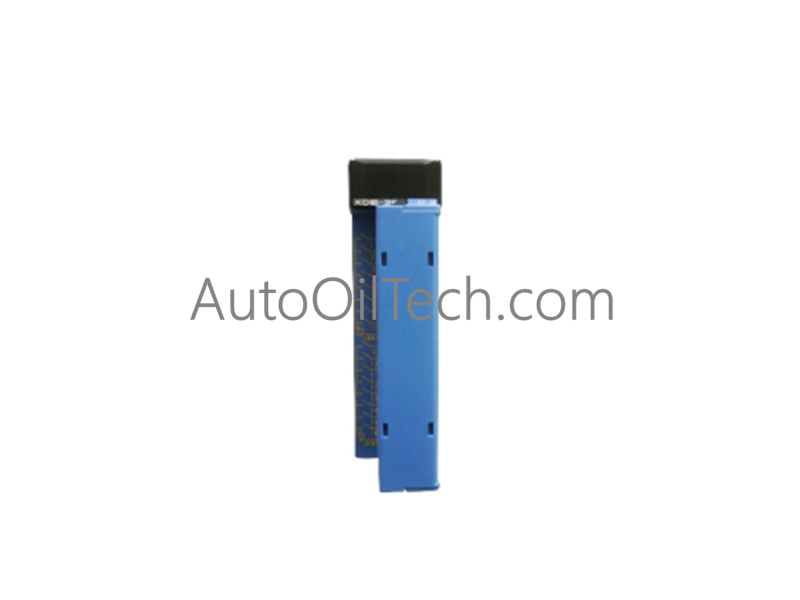

Configured for discrete transistor-based actuation in FA-M3 control nodes, the Yokogawa F3YD18-0N (F3YD18 transistor output module) provides direct physical/electrical execution. It drives DC load circuits through solid-state switching paths within FA-M3 PLC architectures.

Hardware Specifications

Channel-to-Channel Isolation for Digital Output Stability

Yokogawa transistor output modules maintain channel-to-channel isolation to prevent interference between adjacent digital actuation paths. When mixed-signal wiring is present in the same FA-M3 base unit, PCB trace geometry and isolation barriers minimize impedance coupling. This ensures deterministic switching behavior even when analog loops, HART-enabled channels, or Fieldbus PA segments coexist nearby. Isolation prevents backfeed conditions and stabilizes output timing under varying load conditions.

Frequently Asked Questions

Q: Can the F3YD18-0N be removed while the FA-M3 base unit is energized? A: Removal under power is not recommended. De-energize the base unit to avoid transient faults on connected output circuits.

Q: Does the module impose additional backplane current load? A: It draws standard transistor-output conditioning power. No abnormal backplane loading occurs beyond typical Yokogawa FA-M3 output modules.

Q: How does the module behave in redundant digital-output configurations? A: Redundancy is managed by the controller. The module provides continuous solid-state switching without internal buffering or switchover logic.

Field Installation Guidelines

• Use shielded wiring when output circuits operate near high-noise conductors.
• Bond cable shields at the cabinet end only to prevent ground-loop formation.
• Maintain separation from high-voltage conduits to reduce electromagnetic interference.
• Verify terminal torque to ensure stable contact for DC switching circuits.
• Avoid sharp bends or mechanical strain on wiring to prevent output distortion.
• Confirm correct polarity and wiring orientation before energizing the load device.
