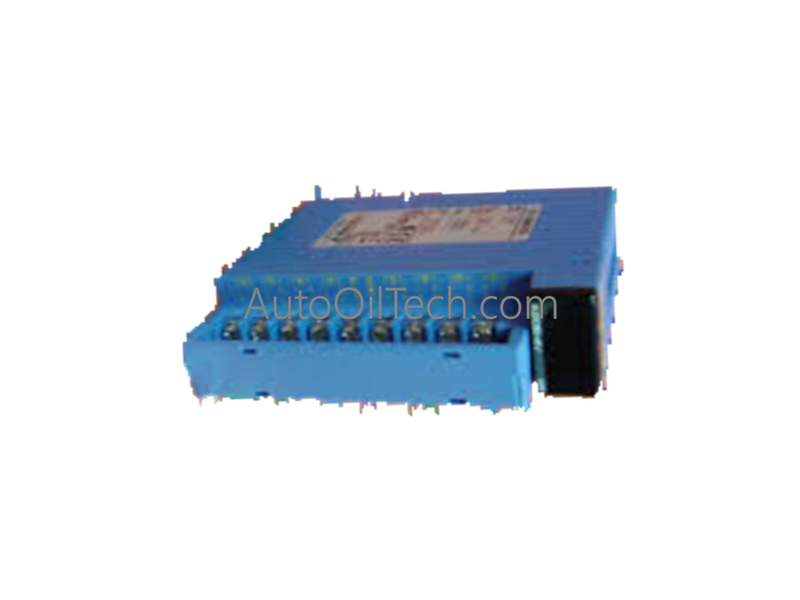

Yokogawa F3CX04-0N Temperature Monitoring Module

Description

The Yokogawa F3CX04-0N Temperature Monitoring Module is a single‑slot FA‑M3 PLC module designed for multi‑channel thermal data acquisition. It supports universal inputs, enabling flexible sensor integration for industrial automation and process safety monitoring.

Specifications

• Manufacturer: Yokogawa Electric Corporation

• Model Number: F3CX04-0N

• Type: Temperature Monitoring Module

• Channels: 4 independent universal input channels

• Supported Sensors: Thermocouples (15 types), RTDs (9 types), DC voltage (mV/V)

• Measurement Range: −200 °C to +1370 °C (depending on sensor type)

• Accuracy: ±0.1% of full scale

• Resolution: 0.1 °C

• Sampling Period: 200 ms (4 channels), 100 ms (2 channels)

• Isolation: Photocoupler & transformer isolation, withstand 1500 V AC

• Alarm Functions: High/low temperature alarms with ON delay

• Burnout Detection: Configurable (upscale/downscale/none)

• Power Consumption: 440 mA at 5 V DC (~4 W)

• Dimensions: 28.9 × 100 × 106.1 mm

• Weight: 0.2 kg

• Operating Temperature: 0 °C to +55 °C

Features

• Universal Input: Each channel configurable for thermocouple, RTD, or DC voltage

• High Precision: ±0.1% accuracy with 0.1 °C resolution

• Fast Sampling: 200 ms for 4 channels, ensuring real‑time monitoring

• Alarm Capability: Built‑in high/low temperature alarms with relay outputs

• Burnout Detection: Detects sensor failures with configurable response

• Data Retention: Stores input conditions internally, no need for reset at startup

• Industrial Reliability: Compact design with robust isolation for harsh environments
