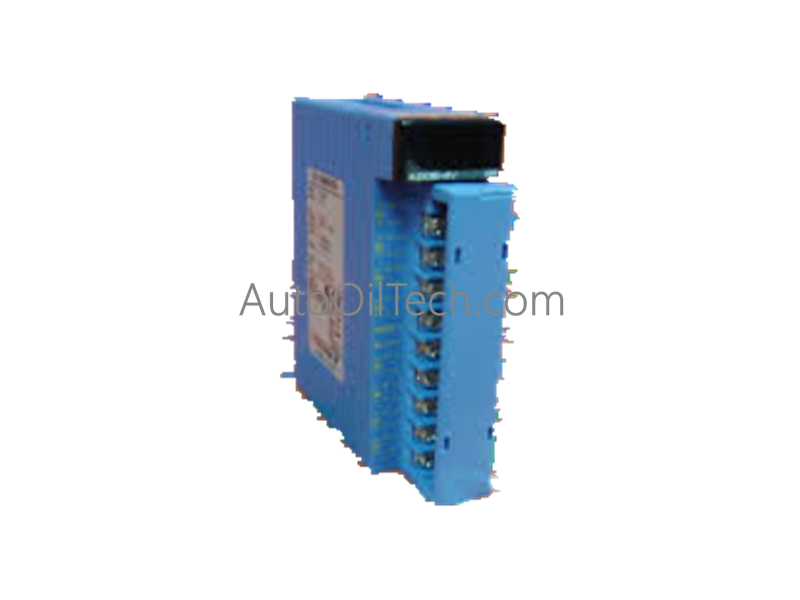

Yokogawa F3AD08-4V Analog Input Module

The Yokogawa F3AD08-4V, also cataloged as the F3AD08-4V Analog Input Module, operates as a dedicated hardware component for multi-channel voltage signal evaluation, high-resolution analog-to-digital conversion, and real-time parameter tracking within Yokogawa FA-M3 range industrial controllers. Configured with 8 differential input paths and channel-to-channel electrical separation, the solid-state module provides direct physical/electrical execution to digitize external sensor spans for localized processing cores.

Hardware Specifications

Industrial Control & Distributed System Infrastructure

• 16-Bit Analog Conversion Resolution and Processing Constraints The module utilizes an integrated 16-bit differential analog-to-digital converter matrix to process incoming voltage vectors into precise numerical data registers. This high-resolution signal framework converts full-scale inputs into stable binary counts natively at the hardware tier, allowing the primary processor to track minor process variances without encountering stepping noise or quantization lag.
• Channel-to-Channel Isolation and Noise Suppression Rails The internal hardware layout incorporates complete channel-to-channel galvanic isolation barriers across all 8 differential pathways. This physical architecture separates individual field loops from adjacent channels and internal backplane circuitry, neutralizing localized common-mode voltage offsets, ground loop currents, and high-frequency industrial noise to maintain data integrity across the shared communication bus.

Frequently Asked Questions

Q: How do differential inputs compare to single-ended configurations regarding signal distortion in high-noise zones?

A: Differential inputs utilize two separate signal lines (positive and negative) per channel to measure the potential voltage delta. When electromagnetic noise impacts the field wireway, the interference acts equally on both conductors as a common-mode voltage; the differential input stage rejects this shared noise component completely, preserving the true sensor signal far more effectively than a single-ended setup.

Q: What protection behavior occurs if a field sensor malfunction drives an input channel beyond the +/- 10 V DC limit?

A: The module incorporates overvoltage protection networks on each input stage to handle minor signal overshoots. If the input voltage breaches the designated span boundaries significantly, internal clamping circuits redirect the excess energy away from the 16-bit A/D converter, while the channel register flags an overrange data warning code inside the controller status registers.
