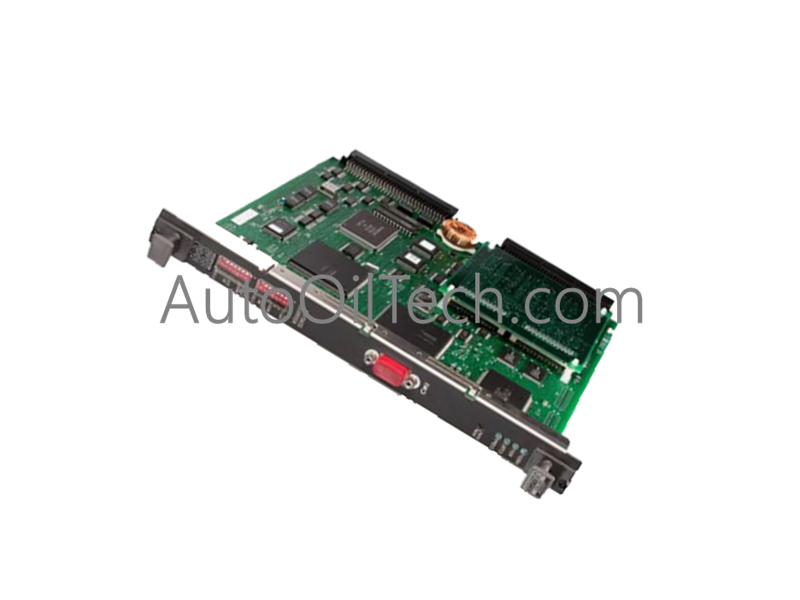

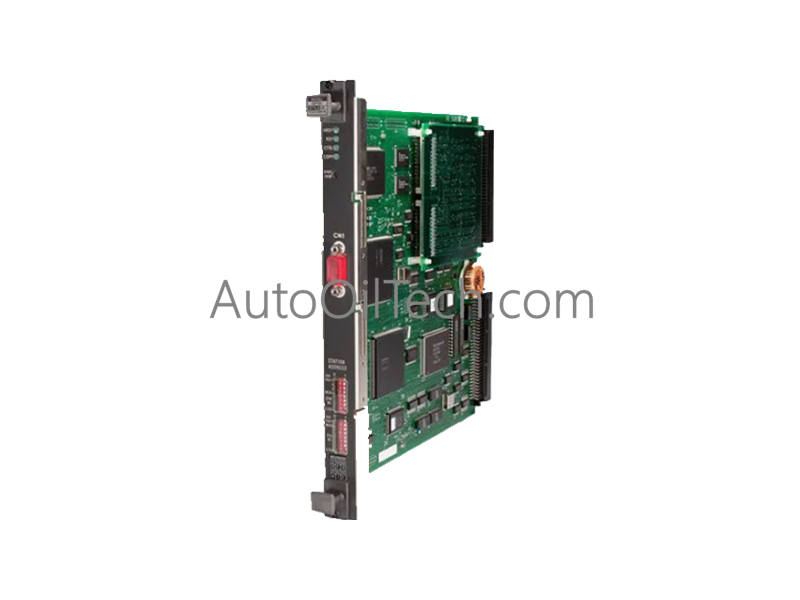

Configured for complex control tasks within Yokogawa distributed control platforms, the Yokogawa CP701/S1 (CP701/S1 Field Control CPU Module) provides direct physical and electrical execution.
Suffix Breakdown & Model Matrix
The module identifier is designated as CP701/S1, corresponding to the base hardware model CP701 paired with the specific S1 operational suffix variant. This hardware variant configuration establishes the baseline memory allocation, communication bus interfaces, and rack-mounting physical profile defined for standard Yokogawa Field Control Unit architectures.
Hardware Specifications
Parameter
Specification
Model
CP701/S1
Brand
Yokogawa
Origin
Industrial Standard
Weight
0.5 kg
Dimensions
26 cm x 6 cm x 28 cm
Operating Temp
Not specified
Power Consumption
Not specified
Channel Isolation and Process Control Execution
The hardware architecture supports channel-to-channel isolation to prevent electrical interference across mixed signal paths. Integration with 4-20 mA HART loop protocols enables precise telemetry transmission, while cold junction compensation (CJC) maintains thermocouple measurement accuracy. Direct I/O instruction refreshing executes data updates without intermediate scan delays across the backplane bus.
Frequently Asked Questions (FAQ)
Q: What is the hardware upgrade path for memory and I/O capacity on the CP701/S1?
A: The CP701/S1 module features fixed onboard processing and memory specifications. System expansion is achieved by integrating additional I/O or processor modules into the rack-based backplane architecture.
Q: Is the module compatible with standard engineering software tools?
A: Yes, the unit interfaces directly with standard Yokogawa engineering environments utilized for logic development, hardware configuration, and system monitoring.
Field Installation Guidelines
Verify that the incoming system power supply remains within the rated voltage tolerances prior to inserting the processor module into the rack.
Ensure proper chassis grounding of the backplane assembly to maintain electrical noise immunity and surge voltage protection limits.
Maintain minimum spatial clearances around the module housing to allow unobstructed convective airflow and prevent localized thermal accumulation.
Secure all backplane locking mechanisms and verify that signal cable shields are terminated correctly to prevent electromagnetic interference along communication lines.
