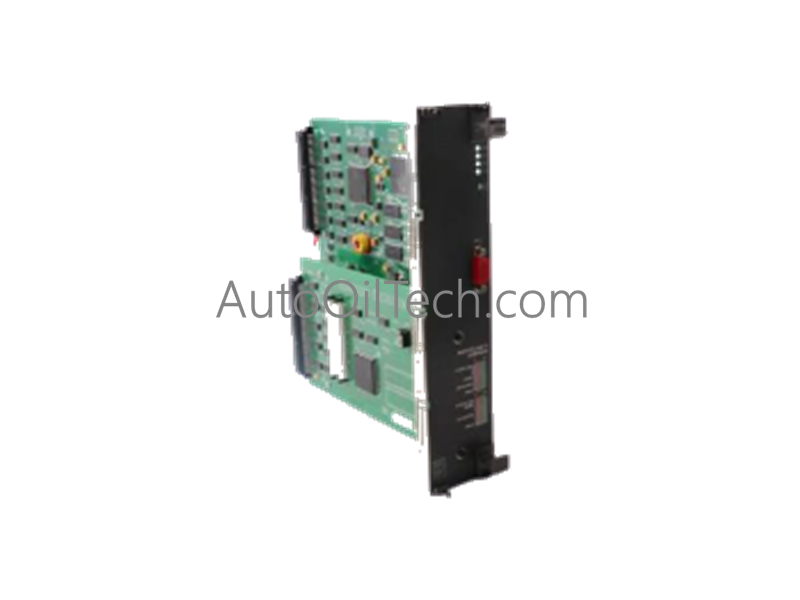

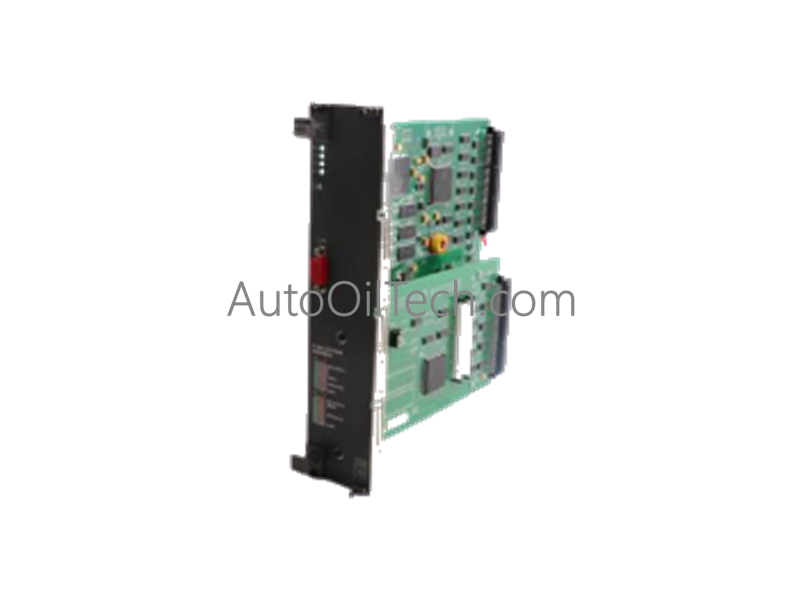

Yokogawa CP133E-64 S3 CENTUM VP/CS 3000 CPU Module

The Yokogawa CP133E-64 S3, also cataloged as the CP133E-64 CPU Module, operates as a dedicated hardware component for control algorithm execution and deterministic data acquisition within CENTUM VP and CENTUM CS 3000 DCS platforms.

Hardware Specifications

DCS Process Control & Signal Conditioning Specifications

• 4-20 mA HART Loop Protocol Integration: Processes digital device management signals superposed on analog 4-20 mA loops without interrupting process control execution cycles.
• Fieldbus & Subsystem Connectivity: Communicates directly with FOUNDATION Fieldbus and Profibus PA network interfaces, routing process variables and diagnostic frames across internal system buses.
• Channel-to-Channel Isolation & CJC Processing: Supports galvanically isolated field interfaces and cold junction compensation (CJC) algorithms to maintain accurate temperature and process signal acquisition across distributed I/O racks.

Frequently Asked Questions

Q: Does the Yokogawa CP133E-64 S3 require a specific backplane voltage supply configuration?

A: The module operates via dual redundant power lines integrated into the main system rack baseplate to ensure continuous power delivery during single-supply failures.

Q: How does the unit maintain data integrity during high-speed Ethernet communication tasks?

A: The dual-core processor and 4 GB DDR3 system memory process control loop algorithms independently from communication tasks, preventing network traffic spikes from affecting real-time loop execution.

Field Installation Guidelines

• Rack Mounting & Mechanical Engagement: Insert the module vertically into the dedicated slot on the CENTUM controller rack. Fully tighten the upper and lower retaining screws to ensure proper backplane connection and frame grounding.
• Grounding & Shielding: Connect all field bus and communication cable shields directly to the cabinet signal ground bar. Keep signal wiring physically separated from high-voltage AC lines to prevent noise coupling.
• Thermal Management: Ensure vertical airflow slots remain unobstructed. Maintain minimum 50 mm clearance above and below the card cage to operate within standard cabinet ambient temperature limits.
