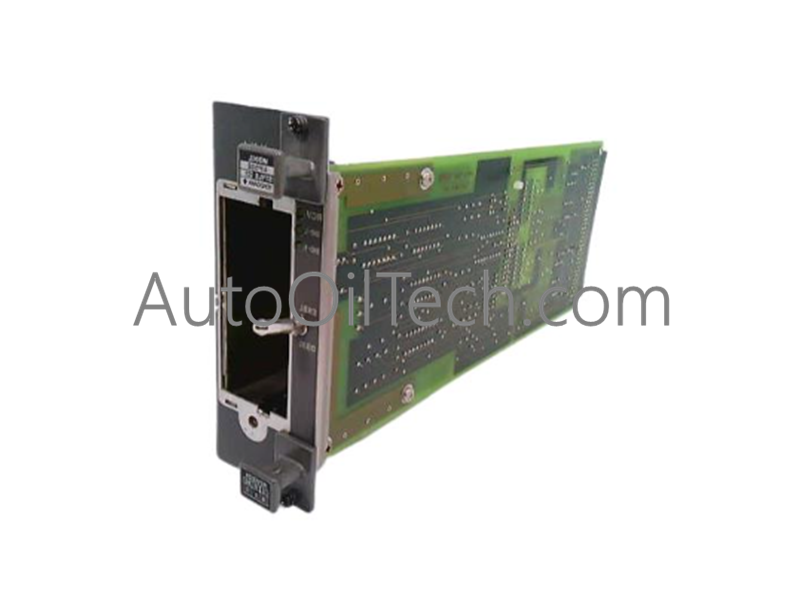

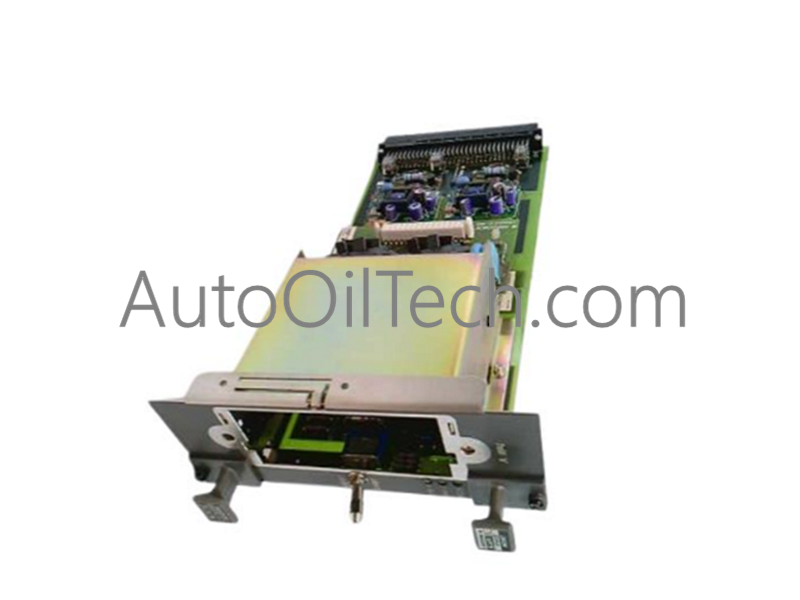

Yokogawa BUS1 Versatile Module

Configured for high-speed data transmission across distributed control networks, the Yokogawa BUS1 (BUS1 Versatile Module) provides direct physical/electrical execution of inter-component communication and signal routing.

Hardware Specifications

DCS Network Routing and Channel Isolation

• Interconnects central controllers with remote I/O and operator interfaces, utilizing protocol bridging to maintain low-latency data frames across Modbus, Profibus, and Ethernet networks.
• Incorporates channel-to-channel isolation hardware to protect internal bus communication processors from transient electrical noise and potential earth loops.
• Executes real-time fieldbus signal conditioning, supporting the 4-20 mA HART loop protocol overlay across analog communication lines without data integrity degradation.

Frequently Asked Questions

Q: What communications protocols are natively supported by the BUS1 module?

A: The module supports industrial network standards including Ethernet, Modbus, Profibus, and Yokogawa proprietary DCS backplane protocols.

Q: How does the BUS1 module isolate field-side electrical interference from the backplane?

A: The unit incorporates internal channel-to-channel isolation barriers that decouple field wiring signals from sensitive logic-side bus components.

Q: Can the BUS1 hardware be installed without reconfiguring adjacent rack hardware?

A: Yes, the modular 90 x 60 x 30 mm footprint is designed for direct integration into existing Yokogawa system slots and mounting assemblies.

Field Installation Guidelines

• Mount the module securely onto the targeted backplane slot or DIN-rail base, ensuring locking latches are fully engaged to withstand industrial vibration.
• Maintain proper separation between high-voltage power lines and low-voltage fieldbus or communication cabling to prevent electromagnetic noise coupling.
• Verify that all shield wires from fieldbus cables are terminated to a single ground point on the cabinet's low-impedance earth bar.
• Ensure adequate passive convection space around the module's 90 x 60 x 30 mm casing to maintain ambient operating temperatures within safe limits.
