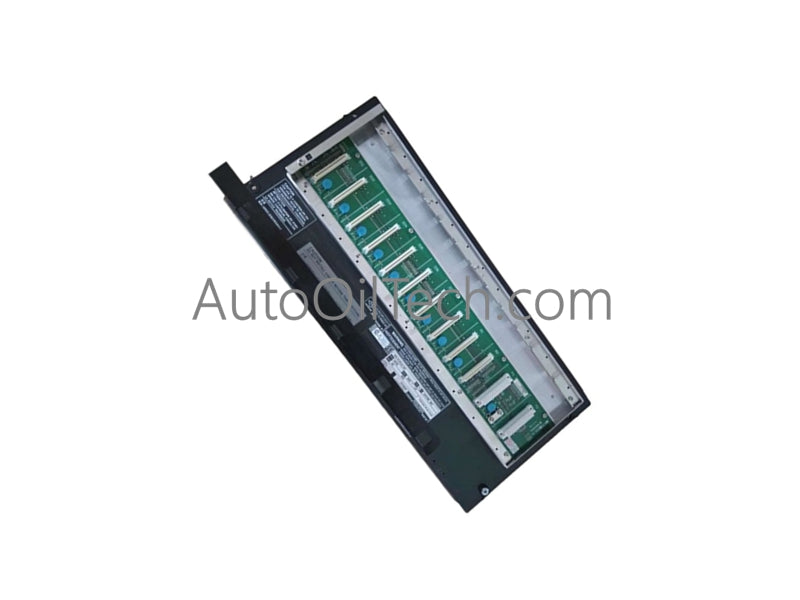

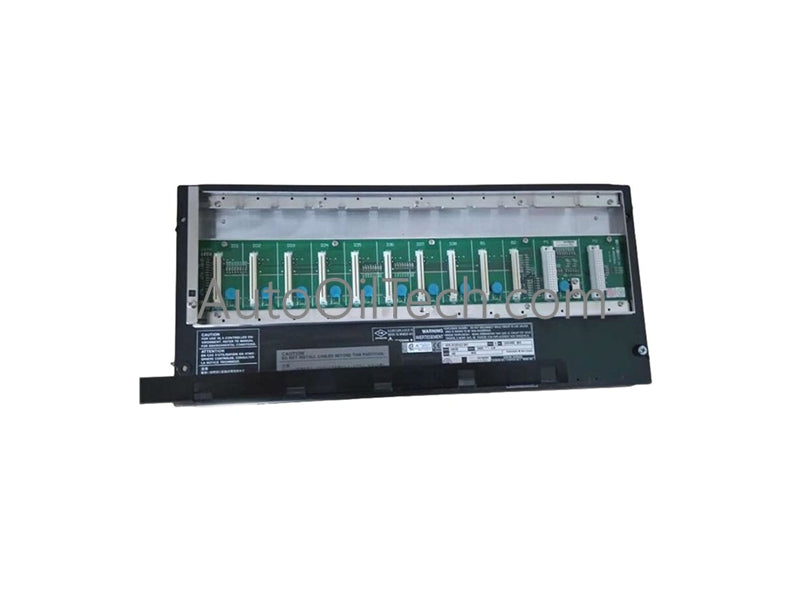

Yokogawa AVR10D-Q22020 V-net Router Module
No reviews
In stock!
- Part Number: AVR10D-Q22020
- Brand: Yokogawa
- Type: Network Communication Modules
- Dimensions: 3.3x10.7x13cm
- Country of Origin: Japan
- Barcode: 8537101190
Share
Additional Specifications
| Color / Pattern |
|
| Power Source |
|
| Communication Protocols |
|
| Controller Design |
|
Product Description
The Yokogawa AVR10D-Q22020, also cataloged as the AVR10D Dual-redundant V-net Router, operates as a dedicated hardware component for dual-redundant network routing and protocol conversion within CENTUM DCS networks.
Suffix Breakdown & Model Matrix
| Base Model | Suffix / Option Code | Technical Description |
|---|---|---|
| AVR10D | -Q22020 | Dual-redundant V-net router assembly |
| -Q2 | For Dual-Redundant V net (10BASE-2) interface | |
| 2 | Dual redundant power supply unit configuration | |
| 0 | Always 0 (Standard specification) | |
| 2 | 220-240 V AC primary power supply voltage | |
| 0 | Basic module functional type |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | AVR10D-Q22020 |
| Brand | Yokogawa |
| Origin | Unspecified |
| Weight | 0.23 kg |
| Dimensions | 210 mm (W) x 230 mm (H) x 80 mm (D) |
| Operating Temp | -10 to 55 deg C |
| Storage Temp | Unspecified |
| Humidity | 5 to 95 percent RH, non-condensing |
| Power Supply | 220-240 V AC (50/60 Hz) dual power input |
| Power Consumption | 20 W |
| Network Protocols | Vnet (10 Mbps, 10BASE-2 BNC), Vnet/IP (100 Mbps RJ45) |
| Redundancy | Dual-redundant power and network path support |
| Isolation | Channel-to-channel isolation on network interfaces |
| Certifications | Unspecified |
DCS Network Routing and Signal Compensation
- Integrates dual-redundant V-net 10BASE-2 coaxial physical layer routing with high-speed Vnet/IP Ethernet bridges to maintain deterministic data packet delivery across distributed control segments.
- Implements channel-to-channel isolation between field network segments to prevent common-mode electrical noise and earth potential differences from degrading bus signal integrity.
- Executes hardware-level switchover between dual communications paths without packet loss, preserving real-time control variable synchronization across CENTUM architecture domains.
Frequently Asked Questions
Q: What physical media connectors are utilized for network bridging on the AVR10D-Q22020?
A: The router utilizes BNC connectors for the 10 Mbps V-net coaxial interface and standard RJ45 connectors for the 100 Mbps full-duplex Vnet/IP interface.
Q: How does the power supply configuration function in high-availability installations?
A: The Q22020 specification incorporates dual AC power supply circuits accepting 220-240 V AC input, enabling continuous router operation during a failure of one line feed.
Q: What is the primary functional isolation rating between the network channels?
A: The hardware incorporates channel-to-channel electrical isolation to suppress loop currents and shield internal logic components from transient ground surges.
Field Installation Guidelines
- Mount the router chassis onto a flat vertical surface or within a standard control enclosure, maintaining a minimum 50 mm clearance around ventilation slots for convective cooling.
- Terminate V-net coaxial connections using 50-ohm BNC connectors and verified bus terminators at the physical ends of the cable segment to prevent signal reflections.
- Connect the frame ground (FG) terminal directly to a dedicated low-impedance industrial earth ground bar using a short, heavy-gauge conductor.
- Verify dual AC feed voltage levels with a calibrated multimeter before energizing the individual power terminal blocks on the router assembly.
