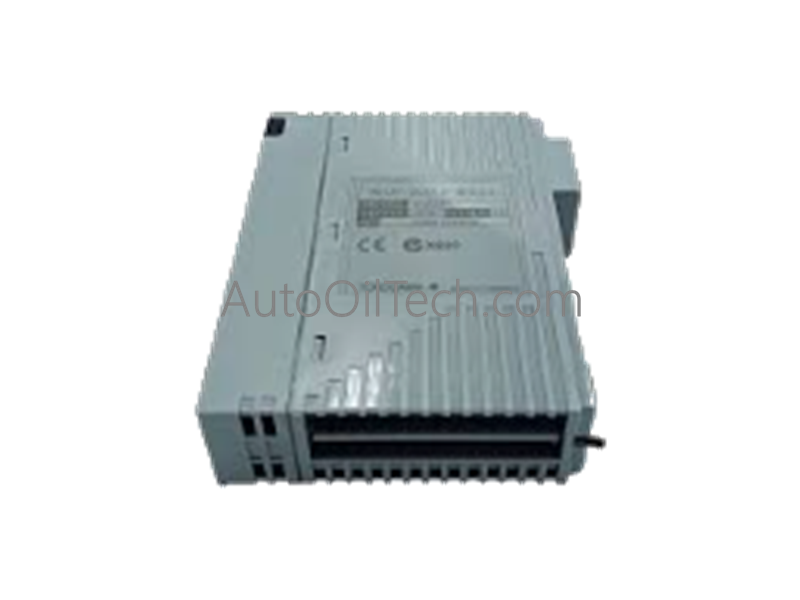

Yokogawa ATK4A-00 S1 KS Cable Interface Adapter

The Yokogawa ATK4A-00 S1, also cataloged as the ATK4A KS Cable Interface Adapter, operates as a dedicated hardware component for 16-channel signal routing and field cabling termination within CENTUM VP / ProSafe-RS control architectures. Configured to interface system I/O modules with field wiring, this unit provides direct physical execution of signal distribution across DCS platforms. It ensures structured cable marshaling without active protocol conversion overhead.

Hardware Specifications

Process Signal Interfacing & Isolation Characteristics

• KS Cable Bus Routing: Designed for seamless multi-channel coupling, the unit streamlines 4-20 mA HART loop protocol routing and discrete I/O signal lines between field terminal junction boxes and DCS node cards.
• Galvanic & Channel Isolation Support: Provides passive path termination that maintains signal line integrity and channel-to-channel isolation parameters established by the parent I/O modules.
• Noise Suppression & Loop Stability: Minimizes crosstalk and line resistance skew across all 16 parallel channels, maintaining calibrated field transmitter accuracy without introducing cold junction compensation errors.

Frequently Asked Questions

Q: Can the ATK4A-00 S1 cable adapter be disconnected under live operating power?

A: Yes, passive signal disconnection is permissible provided the underlying I/O module and connected field devices permit live maintenance without causing unwanted control system trips or safety instrumented function (SIF) execution.

Q: What is the significance of the "S1" suffix on this Yokogawa interface adapter?

A: The "S1" suffix denotes a specific functional revision or standard hardware feature set for the base ATK4A series, ensuring full wiring compatibility with official Yokogawa KS cable assemblies.

Field Installation Guidelines

1. DIN-Rail & Enclosure Mounting: Securely snap the adapter onto a standard 35 mm DIN-rail inside a dust-free, NEMA 12 / IP54 rated industrial marshaling cabinet to prevent particulate contamination.
2. KS Cable Engagement: Align the multi-pin KS cable header with the adapter receptacle. Fully engage the latching screws or retention clips to prevent signal disruption under cabinet vibration.
3. Shielding & Grounding: Terminate overall cable shields and drain wires to the central cabinet earth bus. Ensure low-impedance ground bonding (< 1 ohm resistance to earth ground) to preserve EMC immunity.
4. Wire Bending Radius: Maintain a minimum cable bending radius of 6 times the outer cable diameter when dressing field signal leads to prevent internal conductor strain or signal loss.
