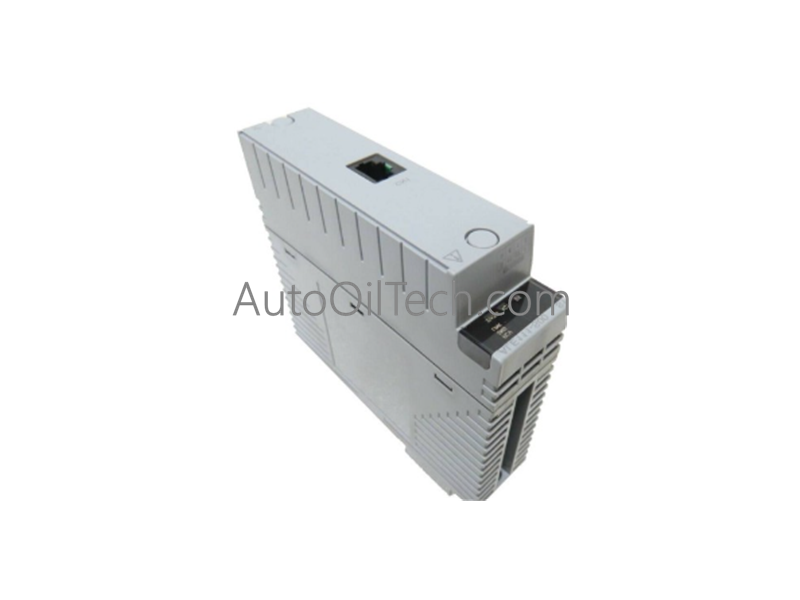

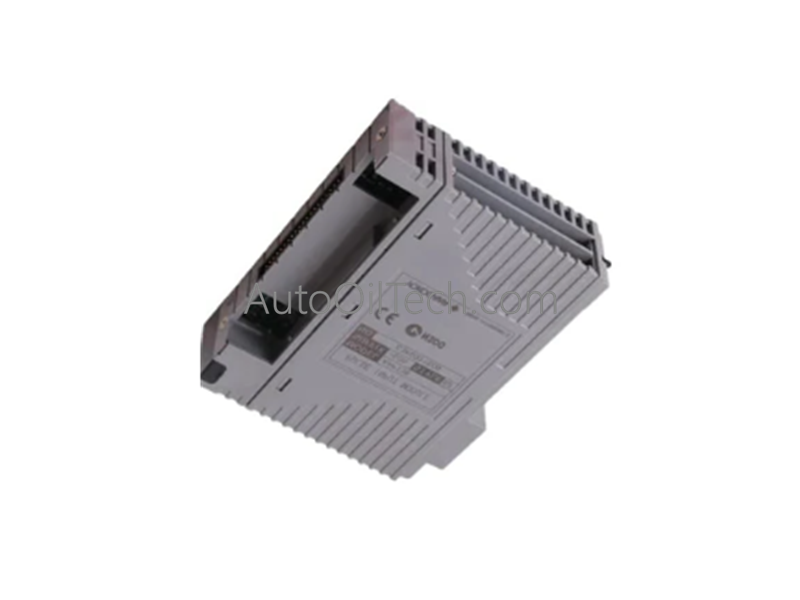

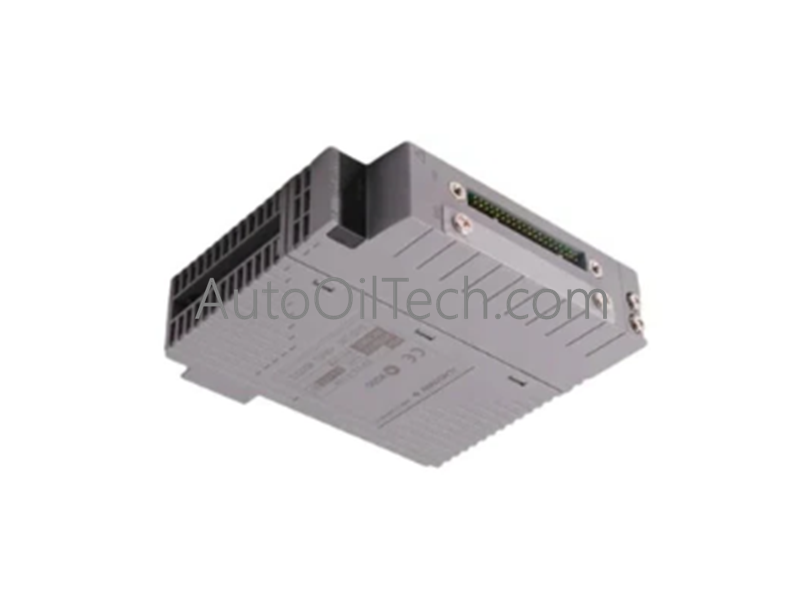

- Yokogawa ASI533-H00 Isolated Analog Output Module
Sale
Yokogawa ASI533-H00 Isolated Analog Output Module
No reviews
In stock!
- Part Number: ASI533-H00
- Brand: Yokogawa
- Type: Isolated Analog Output Module
- Dimensions: 3.3x10.7x13cm
- Country of Origin: Japan
- Barcode: 8537101190
Share
Additional Specifications
| Color / Pattern |
|
| Power Source |
|
| Communication Protocols |
|
| Controller Design |
|
Product Description
The Yokogawa ASI533-H00, also cataloged as the ASI533-H00 Isolated Analog Output Module, operates as a dedicated hardware component for high-precision digital-to-analog signal conversion, localized current loop regulation, and field instrument orchestration within Yokogawa distributed control system (DCS) platforms. Configured with 8 independent channels and built-in safety barriers, the solid-state module provides direct physical/electrical execution to drive regulatory loops across complex process control topologies.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | ASI533-H00 |
| Brand | Yokogawa |
| Origin | Japan |
| Weight | 0.5 kg (1.10 lbs) net component mass |
| Dimensions | 107.5 mm x 130 mm x 32.8 mm structural chassis |
| Operating Temp | Standard industrial ambient limits for Yokogawa DCS hardware |
| Power Consumption | 150 mA (5 V DC) logic rail | 350 mA (24 V DC) field loop rail |
| Channel Configuration | 8 fully independent, isolated output channels |
| Output Signal Range | 4-20 mA nominal operation (23 mA maximum overscale drive) |
| Allowable Load Resistance | 0-750 Ohm (at 20 mA limits) | 0-600 Ohm (at 23 mA limits) |
| Measurement Accuracy | \pm 48 uA full scale tolerance window |
| Step Response Velocity | 100 ms maximum execution time |
| Data Update Frequency | 10 ms continuous internal refresh interval |
| Temperature Drift | \pm 16 uA per 10 deg C thermal variance profile |
| Isolation Withstanding Voltage | 1500 V AC dielectric barrier strength |
| Product Type | Analog Output Modules |
Process Control & DCS Instrumentation Rails
- 4-20 mA HART Loop Protocol and Channel-to-Channel Isolation The hardware assembly enforces rigid signal protection by implementing full galvanic channel-to-channel isolation rated at 1500 V AC. This architecture isolates individual 4-20 mA current loops from adjacent channels, neutralizing common-mode voltage spikes and ground loop currents to prevent process variable data skew on the shared backplane bus.
- Intrinsic Safety Barriers and Signal Conversion Pathways Each of the 8 signal conversion pathways features built-in safety barrier networks engineered to throttle electrical energy transfers under fault conditions. By limiting the available voltage and current levels routed to the field terminals, the internal circuit design provides spark-free execution when driving analog valve positioners or variable controllers located inside hazardous industrial areas.
Frequently Asked Questions
Q: What operational risks occur if an external valve positioner presents a loop resistance exceeding the 750 Ohm specification limit?
A: If the total field loop resistance (including line wire resistance) breaches the 750 Ohm threshold at a 20 mA current draw, the internal 24 V DC rail will saturate. The channel will fail to maintain its target current vector, leading to loop dropouts, a loss of precise positioner tracking accuracy, and an automated channel fault warning on the master DCS console.
Q: Can this 0.5 kg analog output module be hot-swapped while the primary DCS node file is actively energized?
A: Yes, if installed within a redundant terminal base architecture that supports online maintenance. The internal circuitry includes power-limiting startup tracking to prevent backplane voltage dips or arc faults during insertion, ensuring adjacent channels continue data transmission without disruption.
