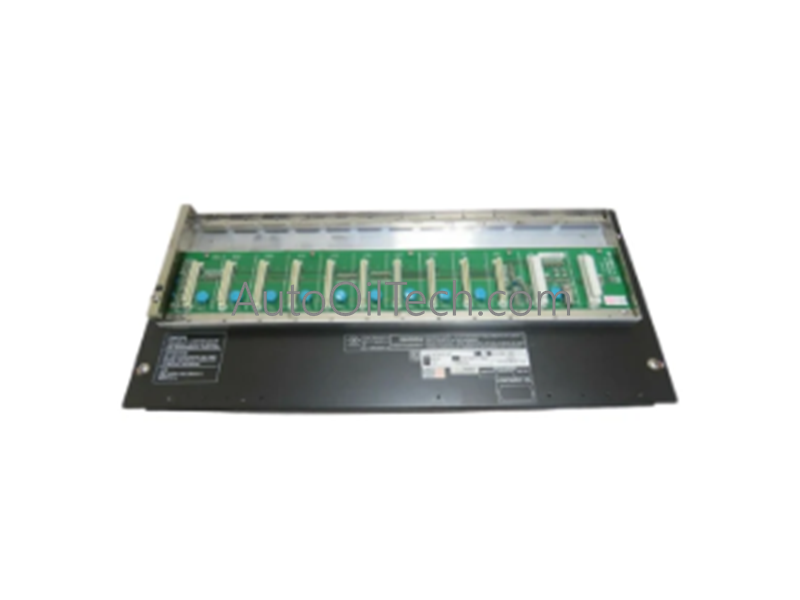

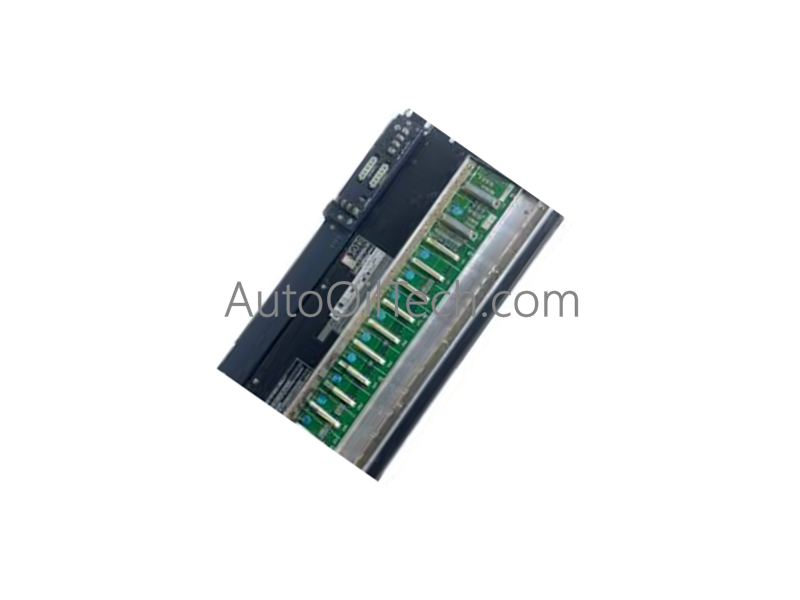

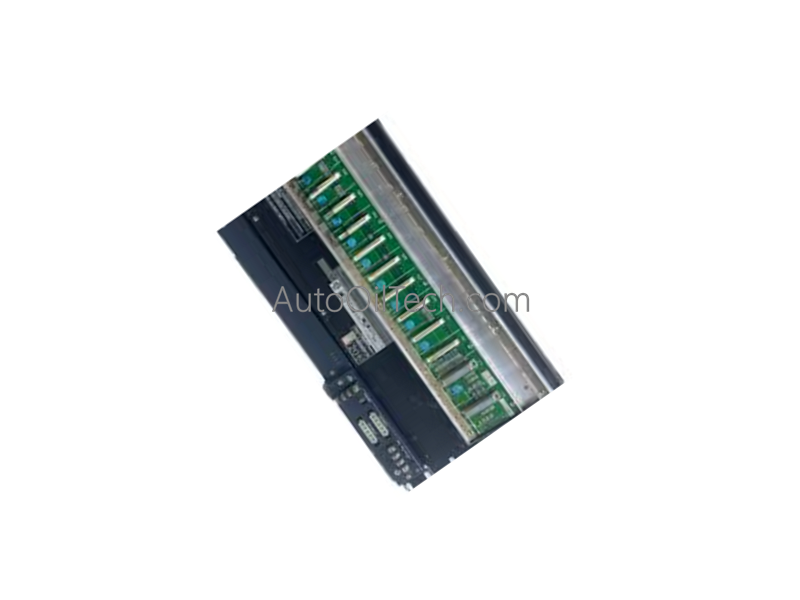

The Yokogawa ANB10D-400, also cataloged as pounds as the ANB10D-400 ESB Bus Node Unit, operates as a dedicated hardware component for high-speed data exchange and bus communication within Yokogawa industrial automation platforms.
Hardware Specifications
Parameter
Specification
Model
ANB10D-400
Brand
Yokogawa
Origin
Global Manufacturing Facility
Weight
10 kg
Dimensions
15.2 cm x 7.6 cm x 25.4 cm
Operating Temp
-20 deg C to +60 deg C
Power Consumption
Integrated I/O module power supply support
Communication Protocol
ESB Bus with dual-redundant architecture
Humidity Tolerance
Up to 95% non-condensing
4-20 mA HART Loop Protocol and Channel Isolation
The node unit manages process signals through dedicated internal isolation circuits, ensuring signal integrity across multi-loop analog and digital interfaces. FOUNDATION Fieldbus and Profibus PA connectivity protocols are supported within the overarching system architecture, while cold junction compensation (CJC) maintains thermal stability for connected termination assemblies. 4-20 mA HART loop protocol integration enables transparent transmission of diagnostic and process data from field instrumentation without attenuation.
Frequently Asked Questions
Q: Does the ANB10D-400 node unit support dual-redundant bus communication?
A: Yes. The unit features a dual-redundant ESB bus configuration to maintain continuous communication pathways during network path faults.
Q: Can the node unit supply power directly to attached I/O modules?
A: Yes. The internal power supply architecture supports I/O module power distribution, minimizing external power supply requirements.
Q: Can this bus node unit be replaced while the control system rack is energized?
A: Hot-swap procedures must comply with specific Yokogawa system safety guidelines, requiring proper bus isolation to prevent communication loss.
Field Installation Guidelines
Mount the unit securely within the designated industrial cabinet using appropriate mechanical fasteners and clearance requirements.
Verify that system power supplies are isolated before connecting low-voltage power and ESB bus communication cables.
Route communication cables away from high-voltage power conduits and variable frequency drives to prevent electromagnetic interference.
Check status LEDs and verify bus synchronization and node communication status using engineering software prior to system commissioning.
