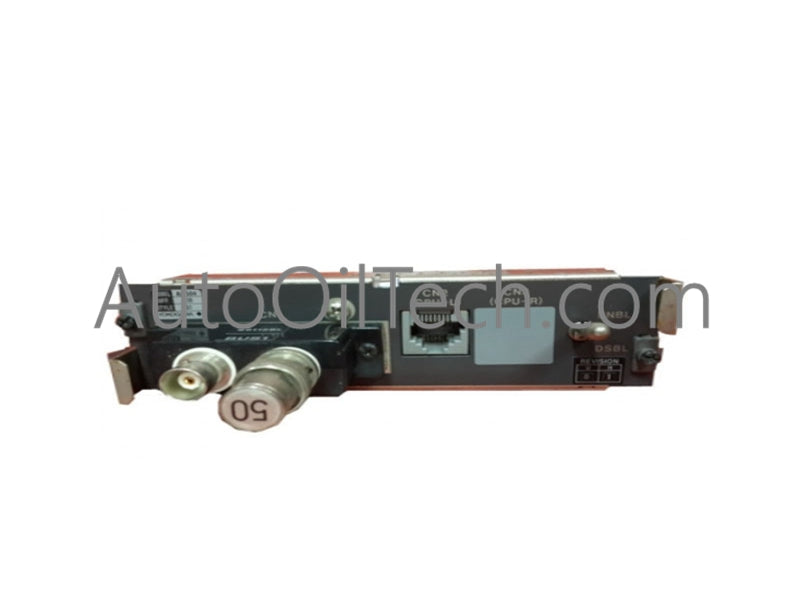

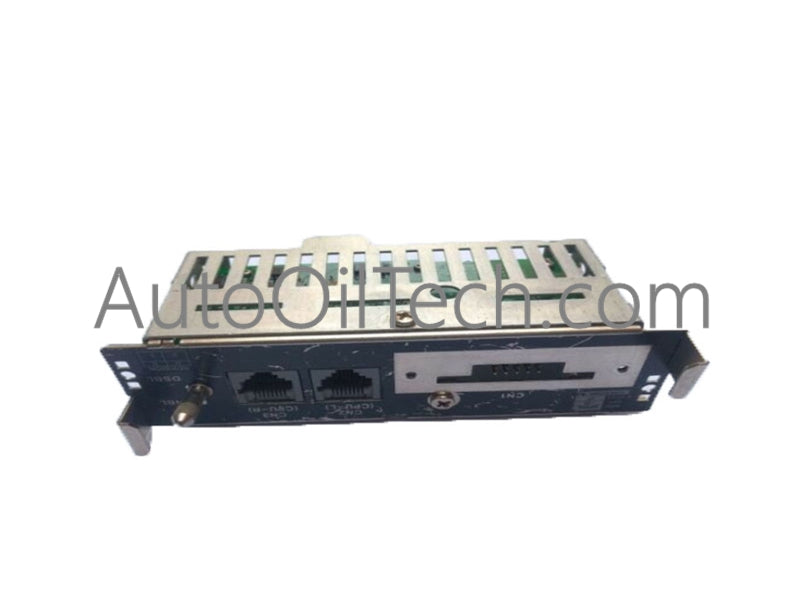

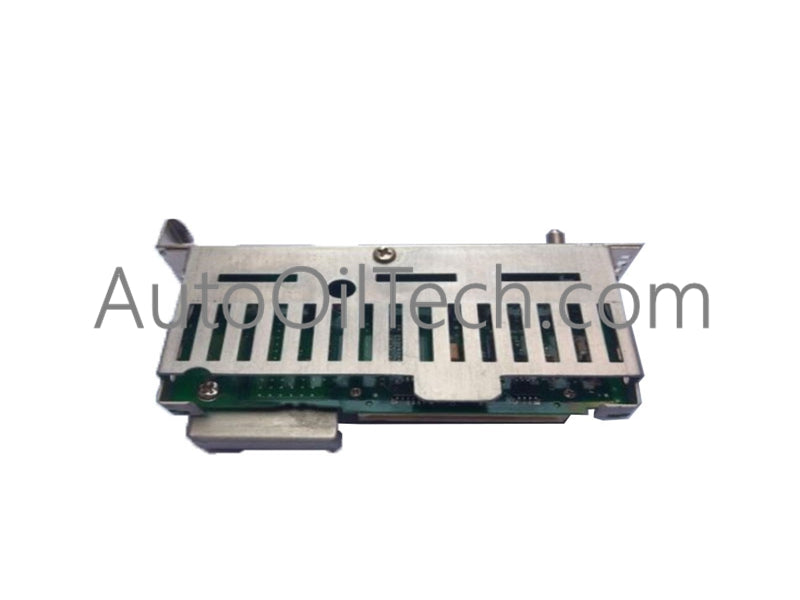

The AIP504‑10 V‑Net Coupler Unit Kit from Yokogawa is a dedicated network interface assembly used in CENTUM CS and CS3000 distributed control systems. It provides the essential coupling between the Field Control Unit (FCU) and the V‑Net control network, enabling high‑speed, deterministic communication across the DCS architecture.
Technical Specifications
Parameter
Description
Model Number
AIP504‑10
Product Type
V‑Net Coupler Unit Kit
System Compatibility
CENTUM CS / CS3000
Function
Interfaces FCU with the V‑Net control network
Network Type
V‑Net (Yokogawa proprietary control network)
Communication
High‑speed, deterministic network coupling
Redundancy
Supports dual‑redundant V‑Net configurations
Mounting
Standard Yokogawa I/O base or network slot
Application
Controller‑to‑network communication, system integration
Construction
Industrial‑grade electronics with reinforced housing
Kit Contents
V‑Net coupler module + installation accessories (varies by kit)
Application Scenarios
The AIP504‑10 is commonly used for:
Connecting FCUs to the V‑Net control network
Expanding or upgrading CENTUM CS/CS3000 systems
High‑availability process automation networks
Integrating distributed I/O and subsystem controllers
FAQ
Q: What does the AIP504‑10 do It couples the Field Control Unit to the V‑Net network, enabling high‑speed communication with controllers and I/O nodes.
Q: Is it compatible with CENTUM VP Primarily designed for CS/CS3000; VP compatibility depends on system configuration.
Q: Does it support redundant networking Yes. It supports dual‑redundant V‑Net paths for high availability.
