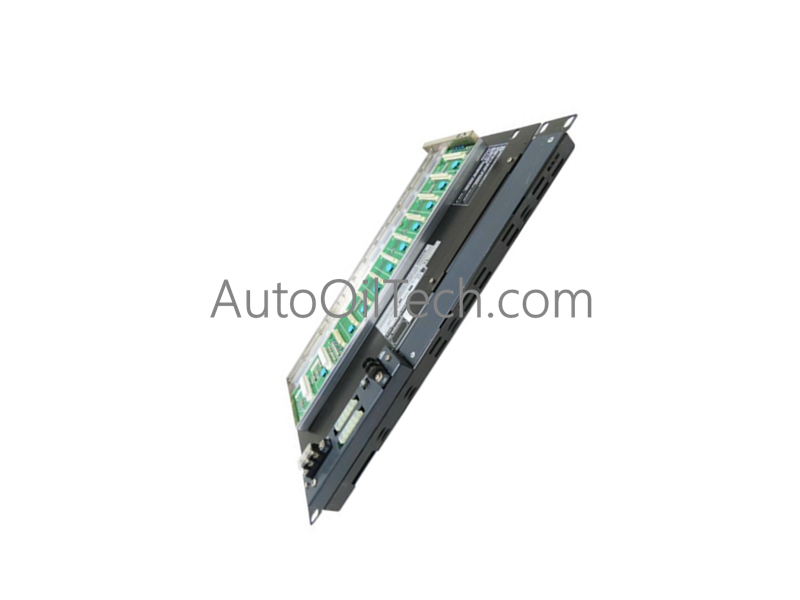

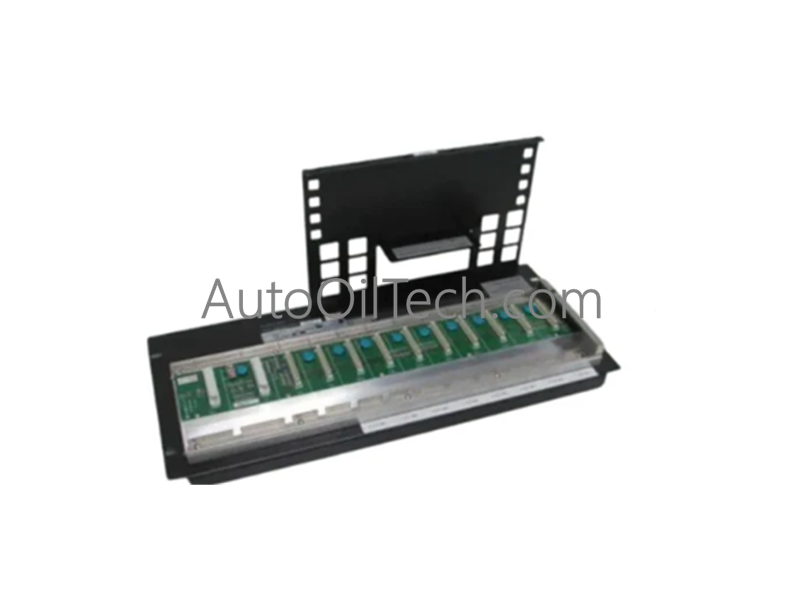

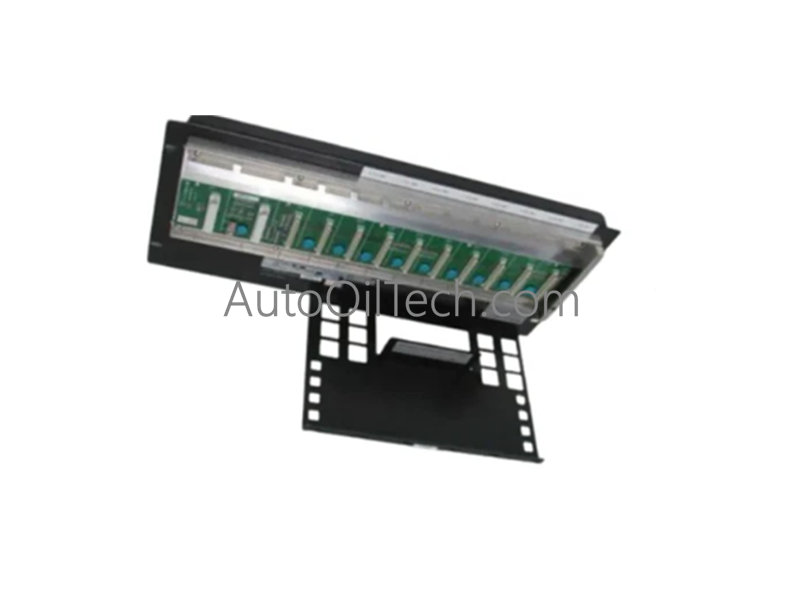

Yokogawa AFV30D-S41152 Control Unit

Configured for high-availability process control in CENTUM VP platforms (R6.01 or later), the Yokogawa AFV30D-S41152 (AFV30D-S41152 Field Control Unit) provides direct physical/electrical execution of redundant control logic and Vnet/IP network communication.

Suffix Breakdown & Model Matrix

Hardware Specifications

Process Control and DCS Characteristics

• 4-20 mA HART loop protocol: The unit supports integrated HART pass-through, allowing the DCS asset management system to query device diagnostics and configuration parameters directly through the control loop.
• FOUNDATION Fieldbus / Profibus PA connectivity: The architecture facilitates deterministic communication with fieldbus-based instrumentation, ensuring precise timing and data synchronization across the control network.
• Channel-to-channel isolation: The module design maintains galvanic separation between internal processing logic and field I/O connections to mitigate common-mode noise and protect against signal transients.
• Cold junction compensation (CJC): The unit interfaces with I/O terminal boards to execute high-precision CJC for thermocouple inputs, maintaining measurement accuracy across the wide operating temperature range.

Frequently Asked Questions

Q: Does the unit support automatic switchover during processor failure?

A: Yes. The duplexed CP461 processor configuration facilitates seamless switchover to the standby module without interrupting control execution or network communication.

Q: What is the capacity for memory retention during power loss?

A: The battery-backed RAM system retains critical application data for up to 72 hours, with a total recharge time of 48 hours to restore full battery capacity.

Field Installation Guidelines

• Mounting: Install the 5U unit into a standard 19-inch rack using appropriate chassis supports. Ensure adequate ventilation clearance above and below the unit to allow for cooling airflow through the 207 mm high enclosure.
• Grounding: Bond the unit chassis to the cabinet protective earth (PE) bus using a low-impedance braided copper strap. A robust ground connection is mandatory to ensure the integrity of the high-speed Vnet/IP synchronization.
• Wiring: Maintain physical separation between Vnet/IP network cabling and high-voltage power lines. Ensure all field I/O terminations are checked for tightness to prevent signal degradation caused by contact resistance in the 5U rack environment.
