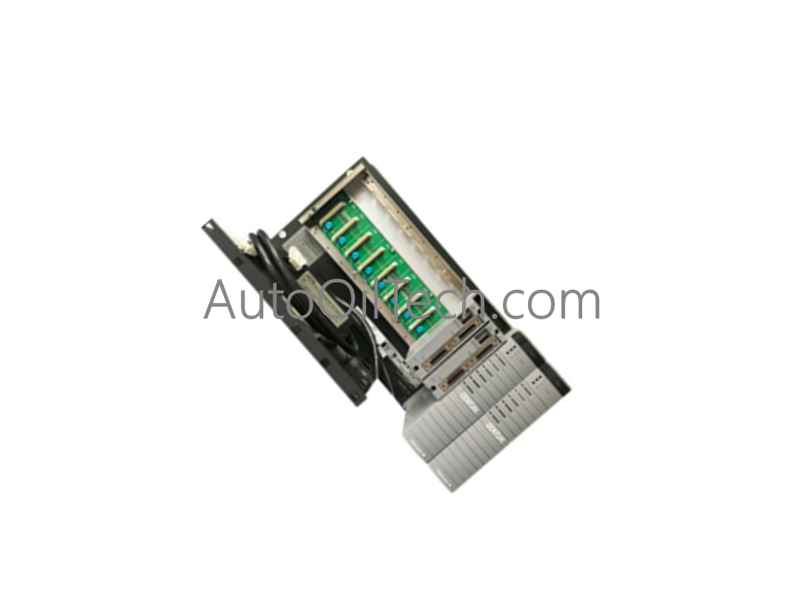

Yokogawa AFV10D-S41401 Field Control Unit

Configured for high-speed process control in CENTUM VP architectures, the Yokogawa AFV10D-S41401 (AFV10D) Field Control Unit provides direct physical/electrical execution of regulatory control, signal processing, and Vnet/IP communication management.

Suffix Breakdown & Model Matrix

Hardware Specifications

Yokogawa DCS Process Control Characteristics

• 4-20 mA HART loop protocol: The AFV10D serves as the primary controller for HART-compliant instrumentation. This connectivity is mandatory to facilitate the extraction of diagnostic data from field devices through the Vnet/IP interface to the engineering station.
• FOUNDATION Fieldbus / Profibus PA connectivity: The unit serves as the host for fieldbus communication modules, providing the deterministic cycle timing required to maintain segment integrity and node synchronization across the control network.
• Channel-to-channel isolation: The FCU backplane incorporates high-integrity galvanic isolation to separate power supply stages from critical processor logic. This is mandatory to mitigate the risk of high-voltage transients propagating from the field-side wiring into the internal processor modules.
• Cold junction compensation (CJC): The AFV10D provides thermal reference stability for thermocouple-based analog input modules. This is mandatory for achieving precision in temperature measurement loops, ensuring that environmental fluctuations at the FCU rack do not influence analog measurement accuracy.

Frequently Asked Questions

Q: Does the AFV10D-S41401 support seamless switchover in a duplexed configuration?

A: Yes. The duplexed architecture is designed for bumpless transfer. Synchronization of the control state between the active and standby units is mandatory to ensure process stability during an automatic switchover event.

Q: Is the 24 VDC power supply compatible with battery-backed UPS systems?

A: Yes. The 24 VDC input is designed for integration with regulated industrial DC power or battery-backed systems. Verification of voltage ripple and transient suppression in the DC distribution network is mandatory to protect the internal logic stages.

Field Installation Guidelines

• Mounting: Secure the FCU into a standard 19-inch rack. Proper torque application for rack-mount screws is mandatory to maintain structural integrity and ensure effective bonding to the rack grounding system.
• Grounding: Terminate the grounding terminal to the main instrumentation earth bus. A low-impedance connection is mandatory to ensure the efficacy of the FCU’s internal surge suppression and to maintain a stable reference for the Vnet/IP network shielding.
• Wiring: Connect power and status signals using appropriately rated terminals. Network connectivity must be established via compliant cabling to an industrial Layer 2 switch. Maintaining a minimum separation of 150 mm from high-voltage AC conduits is mandatory to prevent electromagnetic interference (EMI) from inducing bit-errors in the Vnet/IP data stream.
