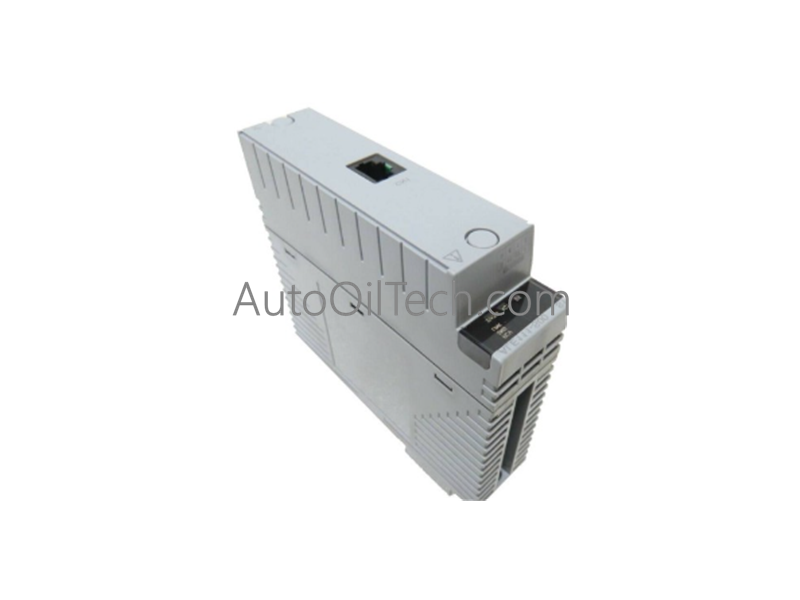

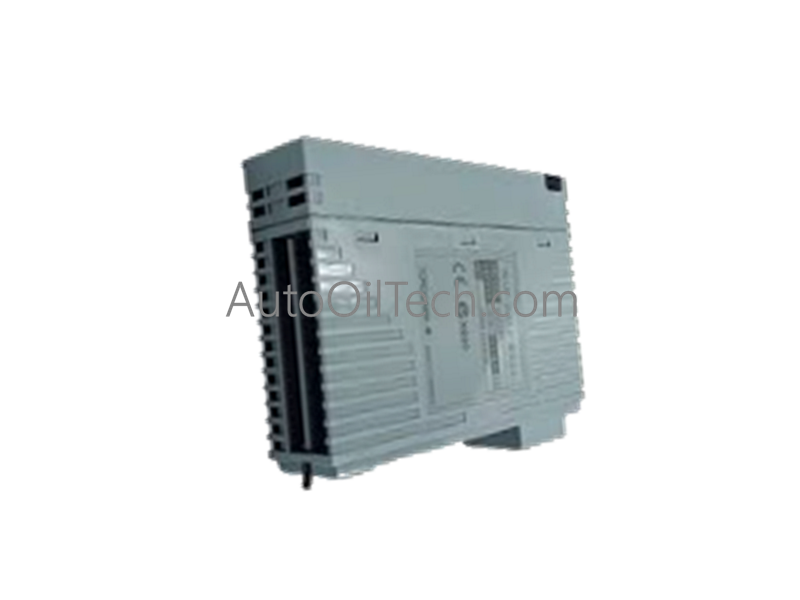

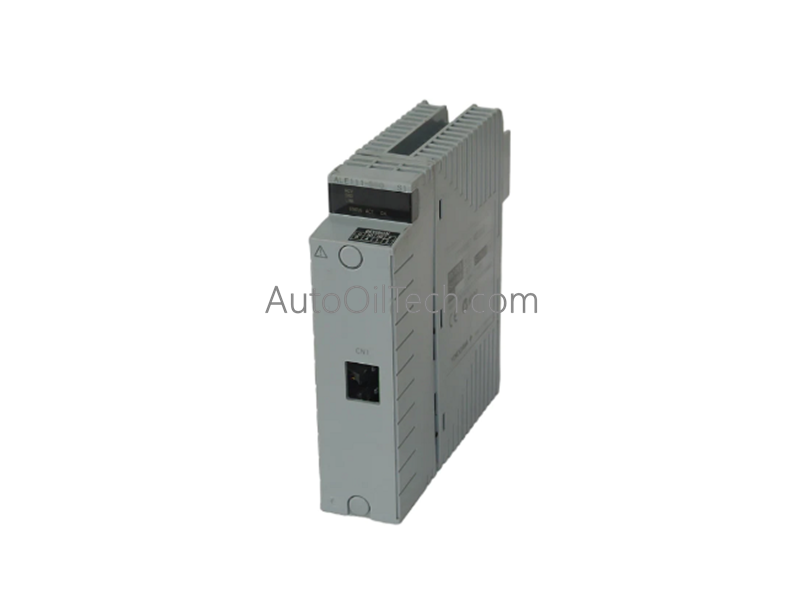

Yokogawa AFG84D-H4123 Field Control Unit

The Yokogawa AFG84D-H4123 serves as the primary AFG84D Duplexed Field Control Unit utilized to execute dual-processor synchronization and deterministic process control loops across Yokogawa CENTUM system platforms.

Hardware Specifications

Process Control and Distributed Control Architecture

• Bumpless Standby Processor Synchronization The hardware architecture integrates two synchronized control processors running in a continuous parallel tracking mode. If the active processor encounters a diagnostic fault or memory parity error, execution transfers instantly to the hot-standby unit, ensuring a bumpless transfer that maintains uninterrupted process control and zero downtime for critical loops.
• Embedded OPC Communication Integration The firmware layer incorporates a pre-built communication library that enables direct, two-way data exchange between the CENTUM control core and external supervisory systems. This embedded protocol engine establishes real-time monitoring and control links without requiring custom coding or separate external interface software gateways.
• File-Based Configuration Management System variables, memory tags, and network parameters are mapped and customized using a streamlined three-file configuration spreadsheet matrix. This file-based setup optimizes data ingestion rates into the non-volatile flash memory registers, ensuring predictable, deterministic cycle times across all configured I/O points.

Frequently Asked Questions

Q: How is the file-based configuration matrix transferred to the AFG84D-H4123 hardware?

A: The three configuration spreadsheets are validated and compiled within the CENTUM engineering workstation. The resulting binary parameter map is then downloaded directly to the active field control unit via the redundant system network, where the internal memory managers distribute the configuration across both synchronized processors.

Q: Does the integrated OPC communication library impact the deterministic execution of critical control logic?

A: No. The internal processor microkernel partitions communication processing from the primary control execution loop. The pre-built library manages OPC data exchange in a dedicated low-priority time slice, ensuring that high-speed deterministic control tasks and safety routines are executed within their fixed cycle boundaries.
