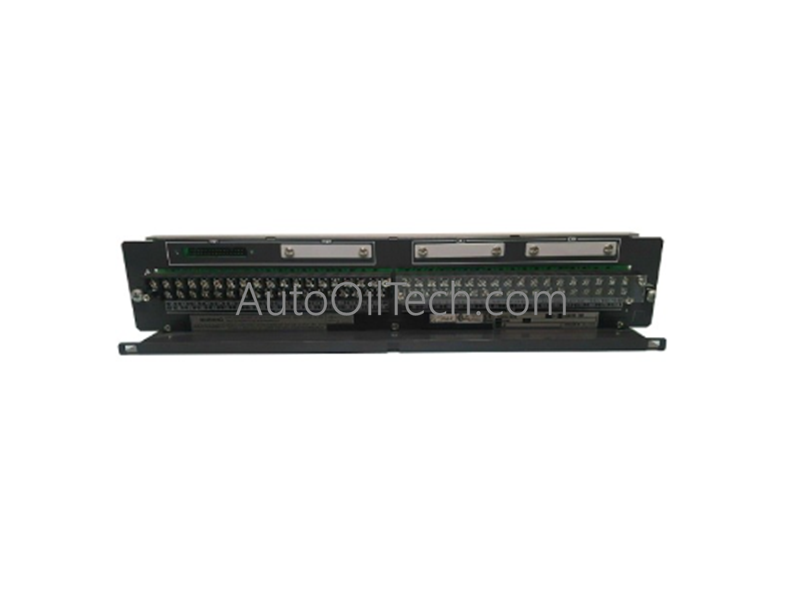

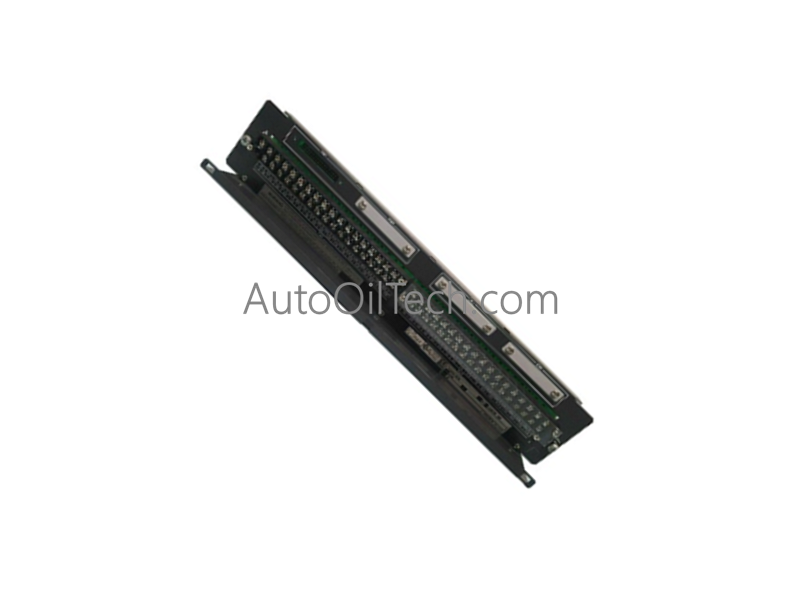

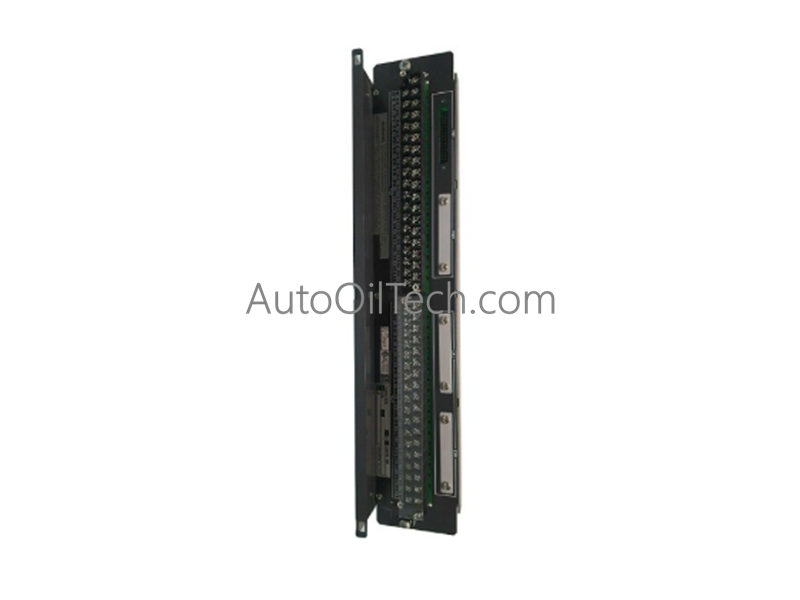

Yokogawa AEP9D Analog Terminal Board

The Yokogawa AEP9D, also cataloged within the AEP9D instrumentation interface series, operates as a dedicated hardware component for high-density analog signal collection and terminal distribution within distributed control system networks.

Hardware Specifications

Industrial Process Control and Networks

• 4-20 mA HART Loop Protocol Integration: The terminal board functions as a physical interface layer routing analog instrumentation lines straight to downstream I/O cards. The circuit board traces are optimized to permit unattenuated pass-through of high-frequency digital telemetry running on top of standard 4-20 mA HART loops, maintaining complete diagnostic connectivity without causing phase distortion or loop impedance shifts.
• Channel-to-Channel Isolation Protection: The electrical layout works alongside connected I/O modules to reinforce galvanic channel-to-channel isolation boundaries. Physical spacing between trace paths prevents field ground loops, inductive cross-talk, and transient spikes from leaking across adjacent loops or migrating into the central processing backplane logic.
• Cold Junction Compensation Coordination: When managing thermocouple terminations across the 16 M4 screw channels, the uniform thermal mass of the terminal board design coordinates with external cold junction compensation (CJC) sensors. This alignment guarantees precise tracking of reference junction temperatures, eliminating gradient errors across the cabinet.

Frequently Asked Questions

Q: How does the ISA Standard G3 coating profile alter the hardware lifespan in harsh environments?

A: The G3 classification signifies that the printed circuit assembly has been treated with a specialized conformal coating layer that resists severe atmospheric corrosion. This coating protects exposed copper traces and component solder joints from aggressive airborne contaminants like hydrogen sulfide (H2S), chlorine, and sulfur dioxide (SO2), preventing premature tracking failures and open circuits.

Q: What are the engineering consequences to the instrumentation loop if an analog channel encounters a surge exceeding the integrated absorber threshold?

A: The onboard surge absorbers clamp common-mode and differential transients to safe levels. However, a catastrophic surge (such as a direct lightning strike on an outdoor instrument run) will permanently short the absorber component to ground to save downstream DCS I/O cards. This requires replacing the terminal module assembly, but successfully insulates the core system logic from overvoltage breakdown.
