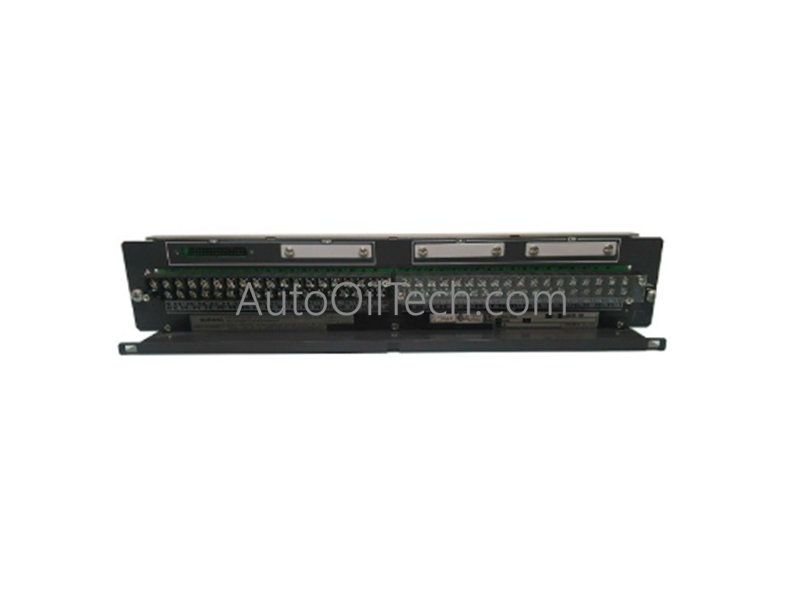

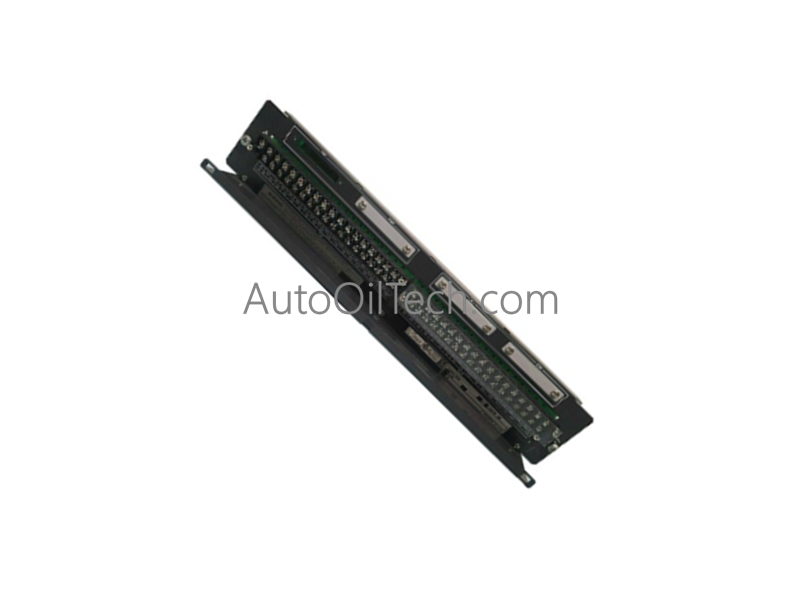

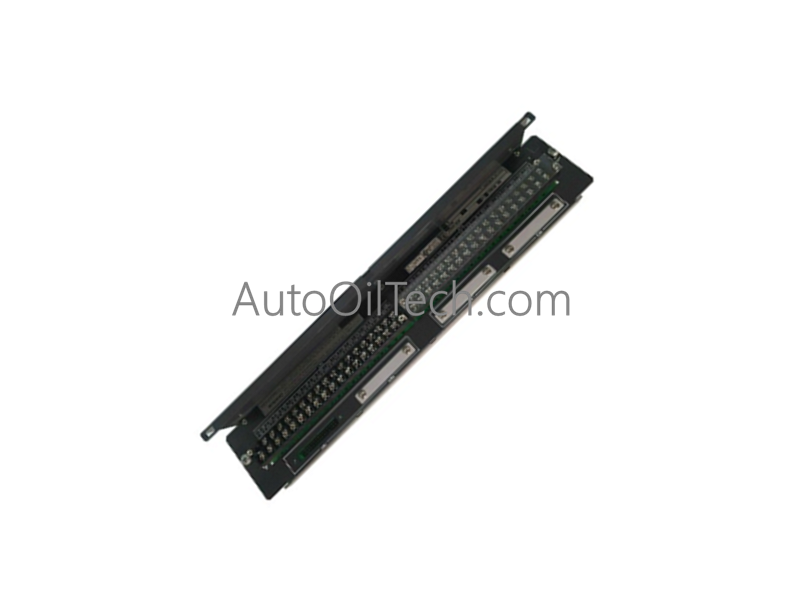

Yokogawa AEP7D-21 Primary Power Supply Bus Unit

Configured for centralized high-voltage AC power routing and bus stabilization within industrial automation networks, the Yokogawa AEP7D-21 (AEP7D Primary Power Supply Bus Unit) provides direct electrical execution of power distribution across distributed control system platforms.

Hardware Specifications

Industrial Process Control and Networks

• 4-20 mA HART Loop Protocol Integration: The power distribution hub functions as a centralized AC entry point, supplying filtered power to adjacent analog I/O nests. By isolating and stabilizing the primary AC rails, the unit prevents low-frequency line ripples from coupling onto the field-side analog circuitry, ensuring clean pass-through telemetry for high-frequency 4-20 mA HART loops.
• Channel-to-Channel Isolation Protection: The internal bus architecture provides robust galvanic separation with a 1500 V AC dielectric strength rating. This physical isolation prevents incoming power-line surges or localized faults on a single output port from inducing cross-talk or propagating destructive electrical failures back through adjacent logic cards or the central processing backplane.
• Cold Junction Compensation Coordination: When feeding multi-channel thermocouple input structures, the stable thermal profile maintained by the unit's low-loss copper bus design minimizes localized ambient fluctuations inside the cabinet. This stability reduces secondary temperature drift errors, ensuring precise tracking at downstream cold junction compensation (CJC) points.

Frequently Asked Questions

Q: How does the suffix code "2" modify the internal tracking protection compared to the low-voltage variants?

A: The suffix code "2" designates that the internal tracking clearances, component voltage ratings, and input filter networks are strictly rated for the 220–240 V AC utility range. This higher voltage baseline requires enhanced clearance profiles inside the chassis to safely handle potential utility transients while maintaining the structural 1500 V AC isolation boundary.

Q: What are the engineering consequences to the downstream DCS components if the incoming AC utility frequency drifts outside nominal limits?

A: The bus unit functions as a pass-through power regulator and filter network. If the incoming frequency drifts significantly, it can induce excess ripple and harmonic heat buildup within the attached power supplies. This condition accelerates the degradation of downstream filter components, though the bus unit itself maintains structural dielectric isolation up to its 1500 V AC withstand rating.
