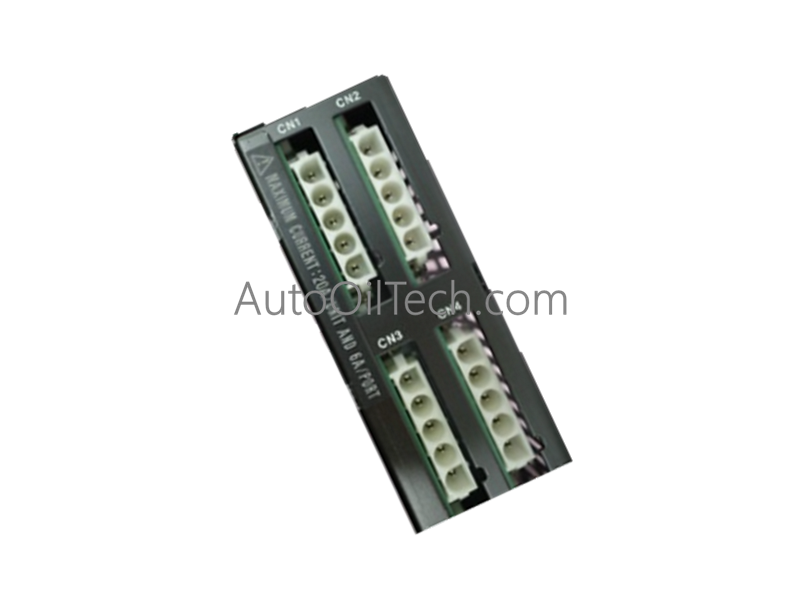

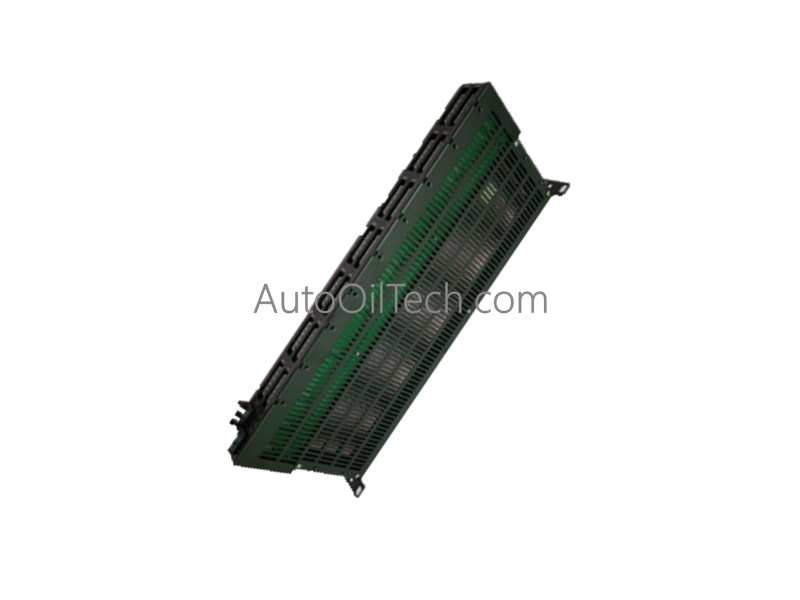

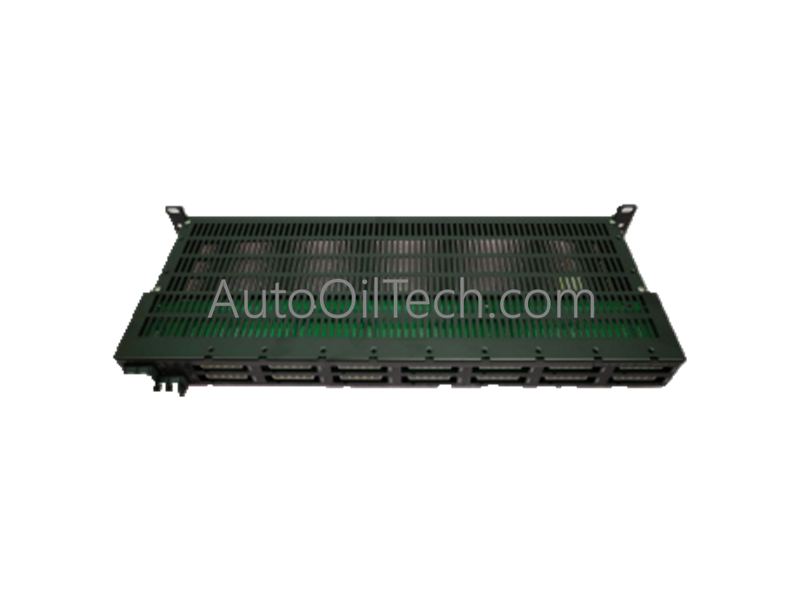

Yokogawa AEP7D-20 Primary Power Supply Bus Unit

The Yokogawa AEP7D-20 serves as the primary AEP7D Primary Power Supply Bus Unit utilized to execute centralized power distribution and dual-source voltage routing across CENTUM VP distributed control system platforms.

Hardware Specifications

Industrial Control and Networks

• Backplane Bus Communication Velocity: The passive electrical bus infrastructure is engineered to run parallel with high-speed rack control buses. By imposing strict noise-filtering barriers on the internal power rails, the bus unit ensures that transient power-line ripples cannot interfere with deterministic backplane token-passing speeds or trigger logic parity errors on adjacent CPU cards.
• I/O Density Scaling: The module footprint provides up to 14 parallel output ports within a compact chassis layer. This high density collapses multiple separate AC terminal strips into a single integrated distribution block, drastically dropping internal enclosure wireway clutter and freeing up rack space for higher-density I/O nests.
• Firmware Flash Compatibility: Being a passive copper bus distribution unit, it does not execute embedded logic curves or firmware routines. This total independence from software versions ensures permanent cross-compatibility with all generations of CENTUM VP power supplies and rack hardware interfaces without requiring firmware flash alignment loops.

Frequently Asked Questions

Q: How does the dual-redundant power design execute source switching during an unexpected primary AC line failure?

A: The bus unit utilizes independent internal parallel trace networks linked directly to two separate AC input feeds. Because the pathways are isolated from one another up to the final bus linking nodes, a total failure on source A causes zero voltage drop or contact bounce on source B, ensuring the attached modules maintain seamless uptime.

Q: What are the engineering consequences to the 14 distribution ports if the aggregate load current exceeds the structural copper capacity?

A: Overloading the total bus capacity induces extreme thermal stress across the internal parallel copper traces. This concentrated heat buildup accelerates insulation degradation, increases trace resistance, and can warp the structural frame, leading to unmanaged branch voltage drops or localized short-circuits.
