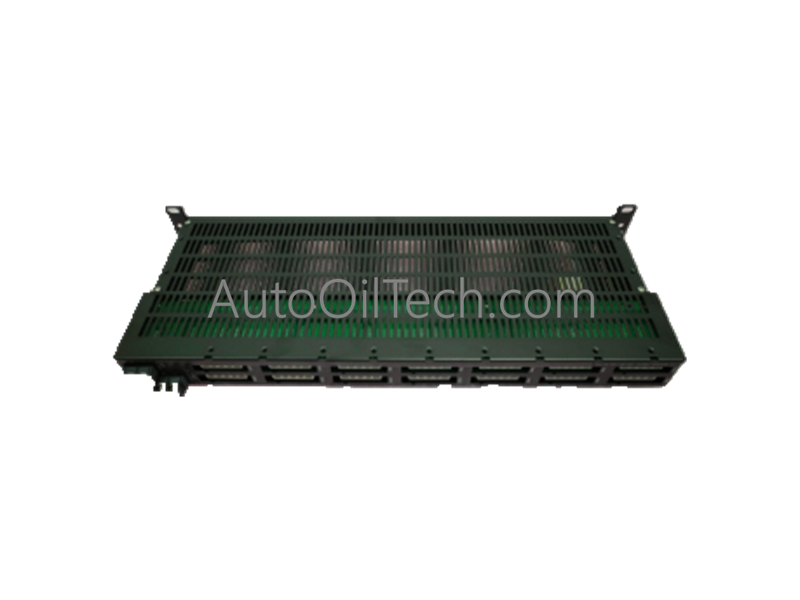

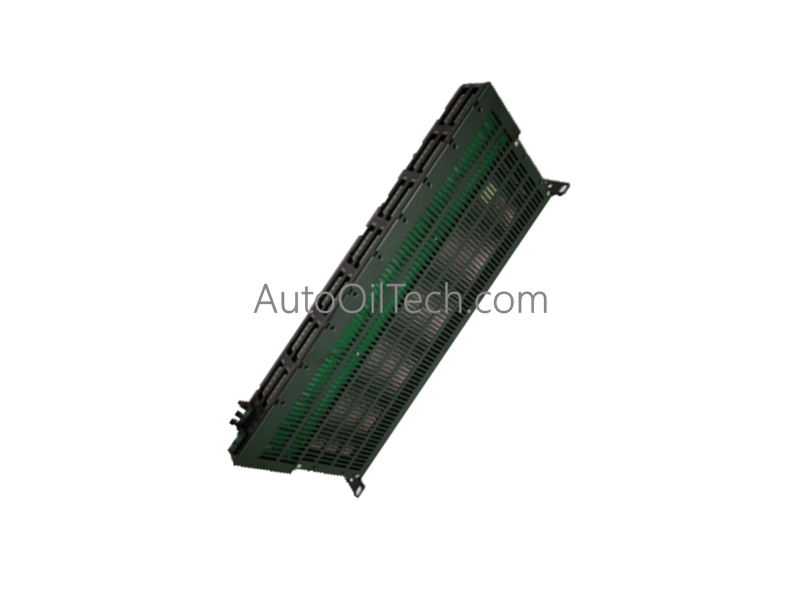

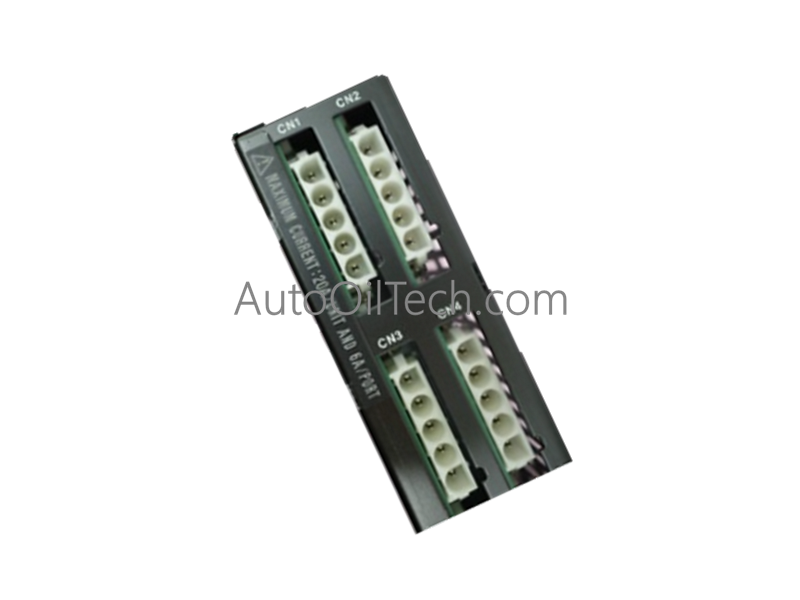

Yokogawa AEP7D-10 Primary Power Supply Bus Unit

The Yokogawa AEP7D-10, also cataloged within the AEP7D power management series, operates as a dedicated hardware component for centralized AC power distribution, voltage regulation, and primary power bus management within distributed control system networks.

Hardware Specifications

Industrial Process Control and Networks

• 4-20 mA HART Loop Protocol Integration: The power distribution hub functions as a centralized AC entry point, supplying filtered power to adjacent analog I/O nests. By isolating and stabilizing the primary AC rails, the unit prevents low-frequency line ripples from coupling onto the field-side analog circuitry, ensuring clean pass-through telemetry for high-frequency 4-20 mA HART loops.
• Channel-to-Channel Isolation Protection: The internal bus architecture provides robust galvanic separation with a 1500 V AC dielectric strength rating. This physical isolation prevents incoming power-line surges or localized faults on a single output port from inducing cross-talk or propagating destructive electrical failures back through adjacent logic cards or the central processing backplane.
• Cold Junction Compensation Coordination: When feeding multi-channel thermocouple input structures, the stable thermal profile maintained by the unit's low-loss copper bus design minimizes localized ambient fluctuations inside the cabinet. This stability reduces secondary temperature drift errors, ensuring precise tracking at downstream cold junction compensation (CJC) points.

Frequently Asked Questions

Q: What are the engineering consequences if the aggregate current load drawn across all output ports exceeds the 20 A hardware limit?

A: Pulling more than the 20 A rated aggregate current causes severe thermal stress across the internal parallel power bus rails. This condition triggers localized heat buildup, accelerates terminal insulation degradation, and risks burning out internal bus linkages, which can lead to unmanaged voltage drops or a complete loss of power distribution to the connected DCS nodes.

Q: Can the AEP7D-10 handle input voltages outside its nominal 100 to 120 V AC specification boundary during a system emergency?

A: The internal components are calibrated strictly for the 100–120 V AC utility range and are not interchangeable with higher-voltage units like the 220–240 V AC rated AEP7D-25. Exposing the unit to a sustained overvoltage condition will puncture the dielectric isolation layers and cause catastrophic failure of the hub's internal filtering components.
