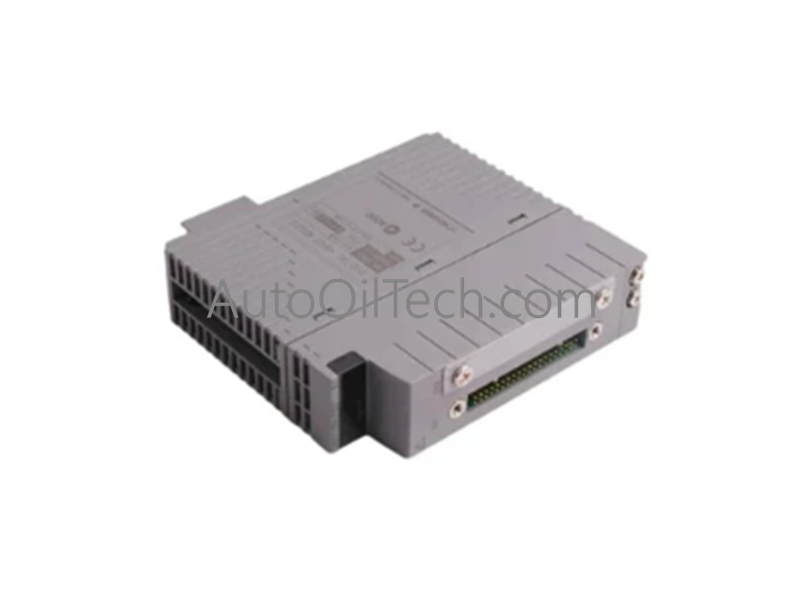

Yokogawa ADV551-P10 Digital Output

The Yokogawa ADV551-P10 serves as the primary ADV551 Digital Output Modules utilized to execute 32-channel digital signal output tasks across STARDOM control network platforms.

Suffix Breakdown & Model Matrix

Hardware Specifications

DCS Instrumentation and Channel Isolation Architecture

The module executes isolated channel signal processing, ensuring robust galvanic separation boundaries across complex process loops. Internal circuit architectures maintain stable common-mode signal integrity and precise threshold detection for output switching.

Electrical isolation features a withstanding voltage of 2 kV AC between output signal and system, alongside 500 V AC between commons.

Frequently Asked Questions

Q: What are the electrical rating limits for the external power supply?

A: The external power supply rating is 24 V DC and 50 mA, with an allowable voltage range from 20.4 to 26.4 V DC.

Q: What response timing parameters govern the output signals?

A: The output response time is 3 ms or less for status output and 10 ms or less for mixed status and pulse outputs.

Q: What pulse width and resolution parameters are supported?

A: The module supports pulse widths ranging from 8 ms to 7200 s with an 8 ms resolution and an ON/OFF delay of maximum 1 ms.

Field Installation Guidelines

1. Mounting: Secure the module firmly into the designated modular rack slot to guarantee proper backplane bus pin engagement.
2. Wiring Separation: Route digital output signal lines away from sensitive instrumentation loops to prevent electrical noise coupling.
3. Shield Grounding: Connect all cable shield drains to the designated grounding bar inside the termination cabinet.
4. Verification: Inspect terminal connections and verify power supply voltage ranges prior to system energization.
