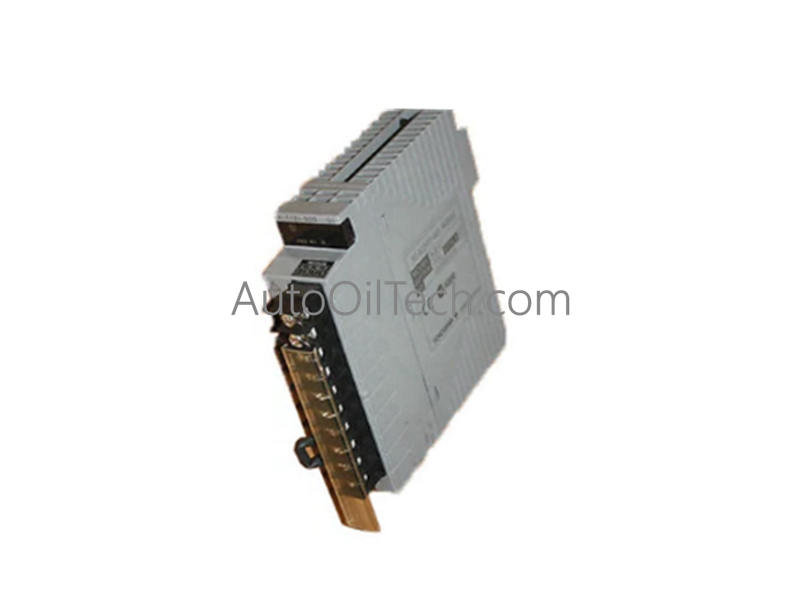

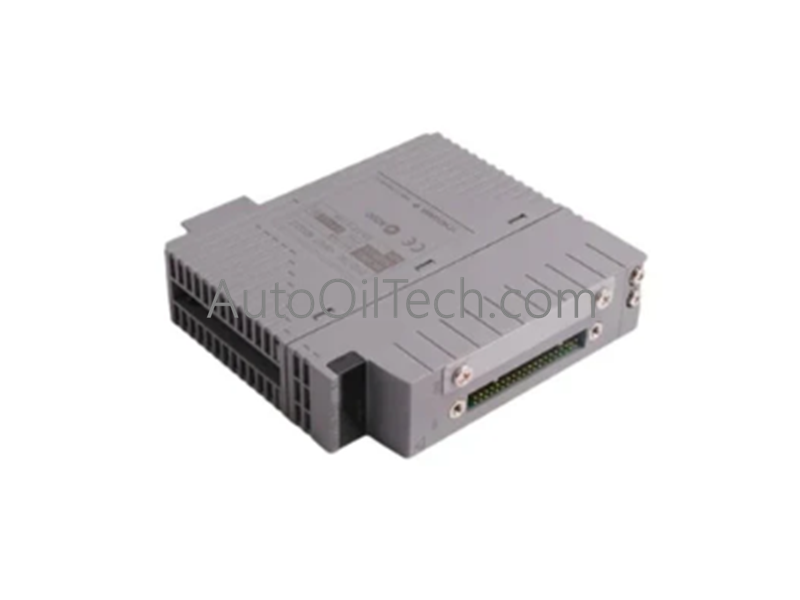

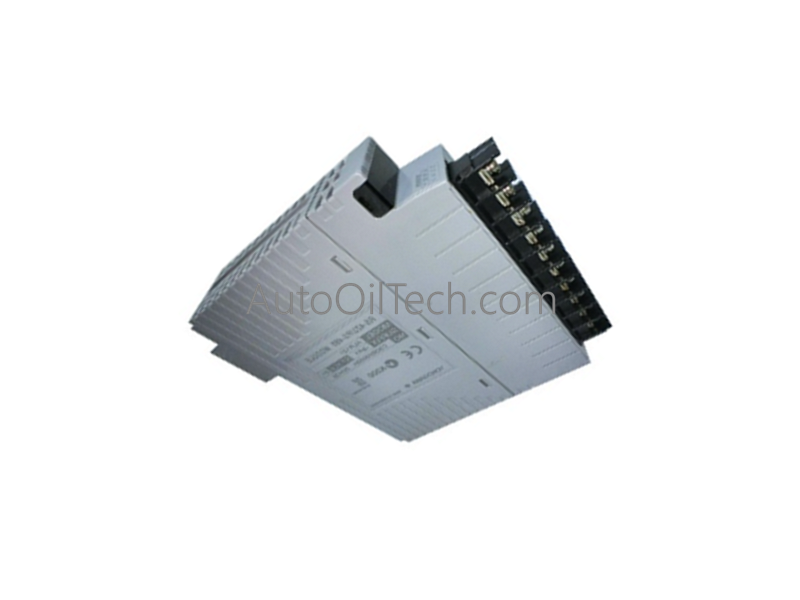

The Yokogawa ADV551-P03 serves as the primary ADV551 Digital Output Modules utilized to execute 32-channel discrete output tasks across distributed control network platforms.
Suffix Breakdown & Model Matrix
Model / Suffix Code Element
Designation & Specification Details
ADV551
Digital Output Module (32-channel)
-P03
Specific configuration variant
Discontinued Status
Discontinued by manufacturer
Hardware Specifications
Parameter
Specification
Model
ADV551-P03
Brand
Yokogawa
Origin
Authorized Manufacturing Facility
Weight
1.00 lbs
Dimensions
Standard Yokogawa Modular Rack Form Factor
Operating Temp
Standard industrial rack rating
Power Consumption
Standard internal backplane current draw
Number of Output Channels
32 channel
Output Current / Rating
50 mA
Rated Voltage
24 V DC
Warranty
Factory warranty may not apply; 2-year warranty included
DCS Instrumentation and Channel Isolation Architecture
The module executes isolated channel signal processing, ensuring robust galvanic separation boundaries across complex process loops. Internal circuit architectures maintain stable common-mode signal integrity and precise threshold detection for output switching.
Electrical isolation and signal conditioning protect internal logic buses while driving connected field actuators and control loops within distributed process environments.
Frequently Asked Questions
Q: What is the manufacturing status of the ADV551-P03 module?
A: The part is discontinued by the manufacturer, though alternative warranty coverage is provided.
Q: What are the core channel and electrical ratings for this module?
A: The module features 32 channels, operates at 24 V DC, and provides a 50 mA rating.
Q: What warranty coverage applies to this discontinued unit?
A: Factory warranty may not apply, but a 2-year warranty is included.
Field Installation Guidelines
Mounting: Secure the module firmly into the designated modular rack slot to guarantee proper backplane bus pin engagement.
Wiring Separation: Route digital output signal lines away from sensitive instrumentation loops to prevent electrical noise coupling.
Shield Grounding: Connect all cable shield drains to the designated grounding bar inside the termination cabinet.
Verification: Inspect terminal connections and verify power supply voltage ranges prior to system energization.
