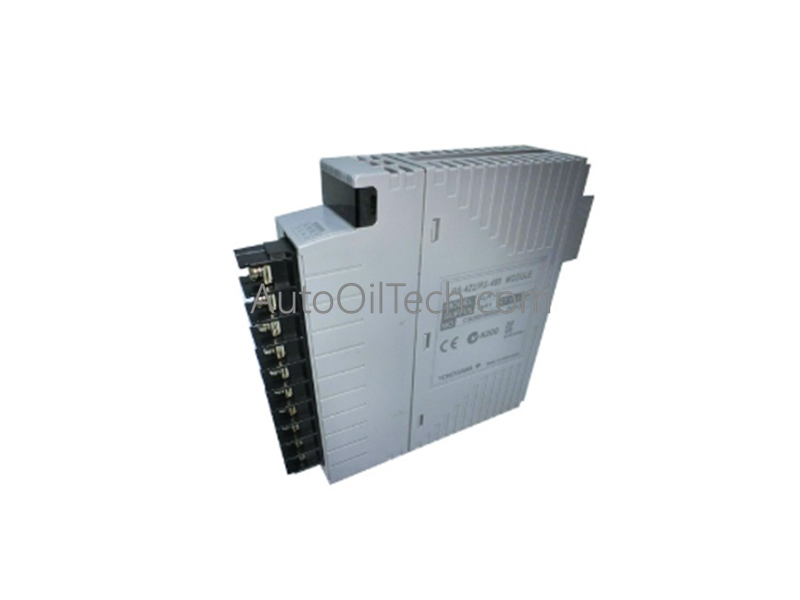

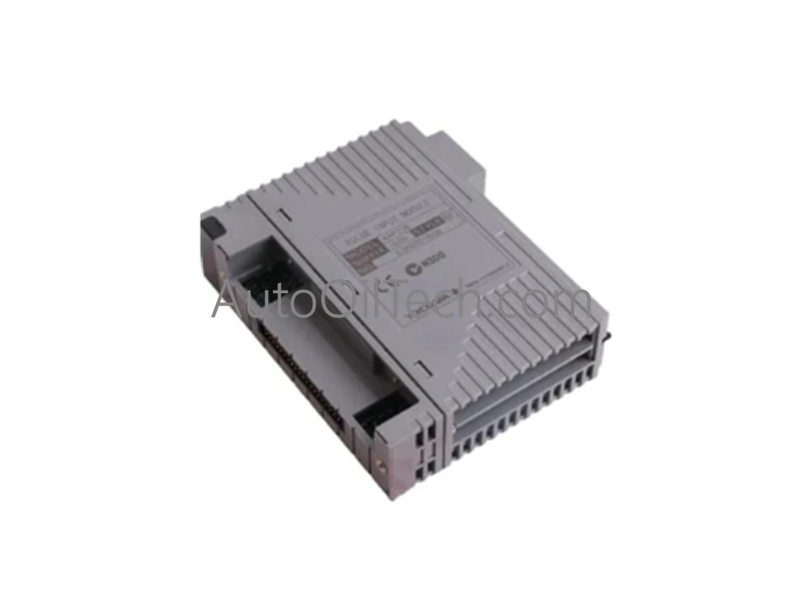

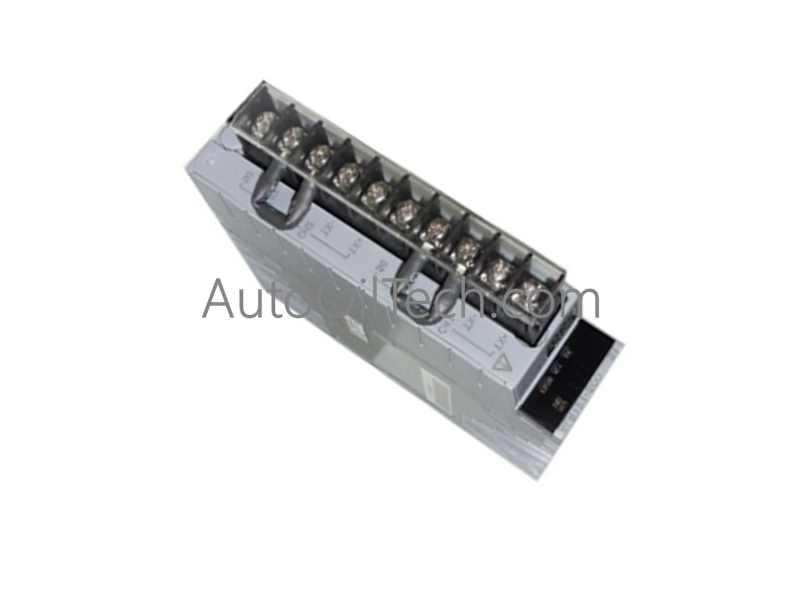

Yokogawa ADV151-P53 Input Modules

The Yokogawa ADV151-P53 serves as the primary ADV151 Digital Input Modules utilized to execute 32-channel discrete status acquisition across distributed control network platforms.

Suffix Breakdown & Model Matrix

Hardware Specifications

DCS Instrumentation and Channel Isolation Architecture

The module executes high-density signal conditioning via isolated input paths featuring channel-to-channel isolation boundaries and common groupings every 16 channels. The circuitry maintains robust common-mode noise suppression across distributed process control loops.

Withstanding voltage parameters safeguard internal logic buses, with isolation rated at 2 kV AC between input signals and system logic, as well as 500 V AC between shared commons.

Frequently Asked Questions

Q: What are the thermal operating limits introduced by the -53 suffix specification?

A: The -53 suffix designation incorporates an extended temperature option allowing continuous operation between -20 deg C and 70 deg C alongside ISA Standard G3 chemical resistance compliance.

Q: How does the module handle backplane current loads during normal operation?

A: The unit draws a maximum current consumption of 500 mA from the internal 5 V DC backplane supply rail provided by the node processor unit.

Q: Can this specific hardware variant be deployed in explosive atmospheres?

A: No. The presence of the digit 5 in the second suffix position indicates that the hardware build includes no explosion protection certification, requiring placement in safe areas or purged enclosures.

Field Installation Guidelines

1. Mounting: Securely insert the module into the designated slot of the base rack and tighten fastening screws to guarantee solid backplane connector engagement.
2. Wiring Separation: Route field digital input lines away from high-voltage power conduits to prevent electromagnetic interference coupling.
3. Shield Grounding: Terminate all signal cable shields at the dedicated cabinet ground bar to maintain system signal integrity.
4. Verification: Confirm that terminal strip voltages match the 24 V DC nominal input requirements prior to system power-up.
