- Yokogawa ADV151-P13 Digital Input
Sale

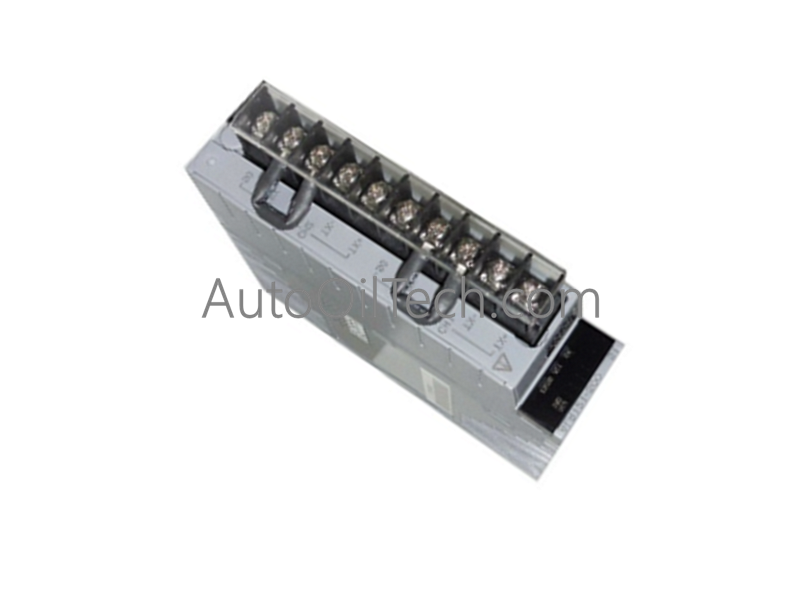

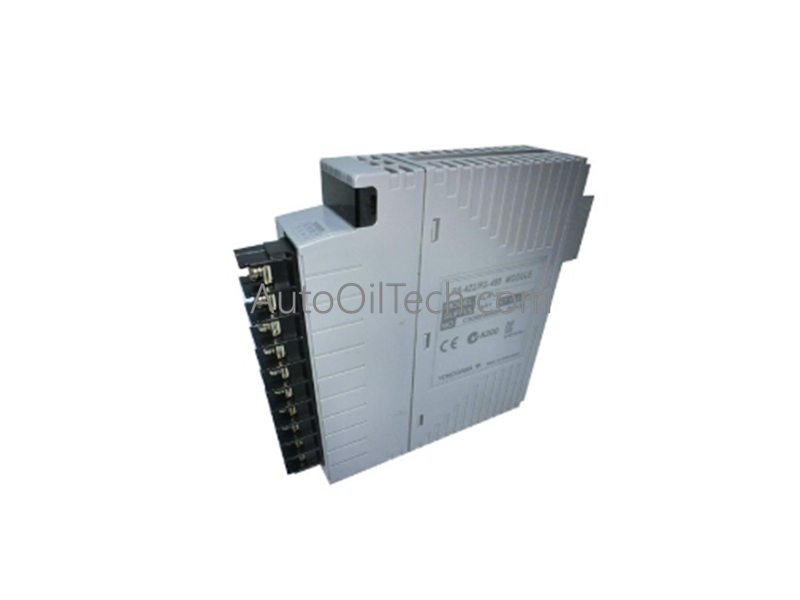

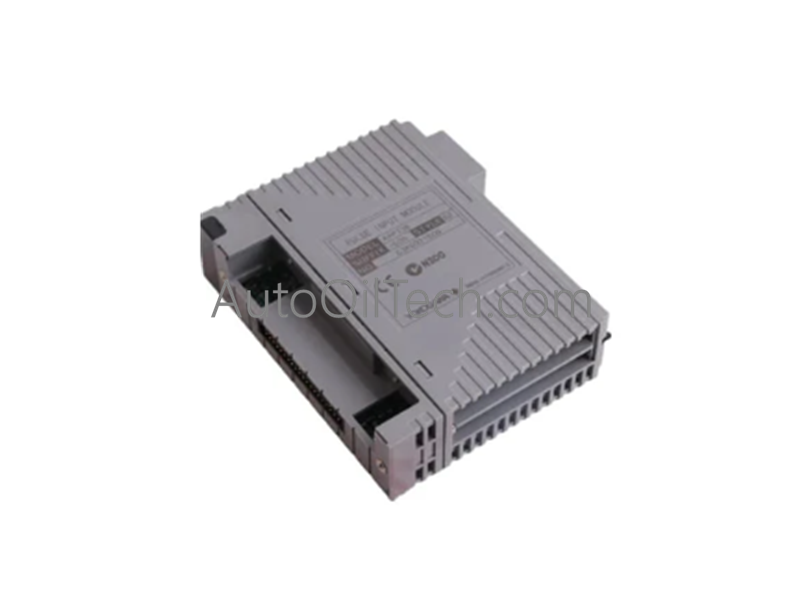

Yokogawa ADV151-P13 Digital Input
No reviews
In stock!
- Part Number: ADV151-P13
- Brand: Yokogawa
- Type: Digital Input Modules
- Dimensions: 3.3x10.7x13cm
- Country of Origin: Japan
- Barcode: 8537101190
Share
Additional Specifications
| Color / Pattern |
|
| Power Source |
|
| Communication Protocols |
|
| Controller Design |
|
Product Description
Configured for discrete signal data acquisition in distributed control system platforms, the Yokogawa ADV151-P13 (ADV151-P13 Digital Input Module) provides direct physical and electrical execution for up to 32 parallel contact or voltage status inputs operating at 24 V DC.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | ADV151-P13 |
| Brand | Yokogawa |
| Origin | Japan / Global Manufacturing Plants |
| Weight | 0.3 kg |
| Dimensions | Standard Yokogawa centum VP card form factor |
| Operating Temp | 0 deg C to 50 deg C |
| Power Consumption | Max. 120 mA (5 V DC system internal bus), 24 V DC external loop power |
| Number of Input Channels | 32 channels, sink/source isolated in groups of 16 |
| Input Voltage Range | 24 V DC nominal (18-26.4 V DC ON state, <=5 V DC OFF state) |
| Input Current | 4.1 mA +/-20% per channel |
| Withstanding Voltage | 2 kV AC (Signal to System, 1 min), 500 V AC (Commons per 16 ch, 1 min) |
| Response Time | <=8 ms (OFF to ON / ON to OFF) |
Process Control Isolation and Channel Grouping
Operating within industrial distributed control system architectures, the module integrates galvanic isolation across dual 16-channel common groups, suppressing ground loops and common-mode transient interference. Channel-to-system dielectric strength withstands 2 kV AC potential barriers for 1 minute, preventing field-side electrical surges from propagating into internal system buses. Input thresholds maintain deterministic response characteristics with an ON voltage threshold span of 18 to 26.4 V DC and an OFF state ceiling of 5 V DC, ensuring noise immunity in high electromagnetic interference environments. Minimum ON detection time is fixed at 20 ms to filter out contact bounce from mechanical switches.
Frequently Asked Questions
Q: What is the maximum switching frequency supported by the ADV151-P13 input channels?
A: The maximum ON/OFF cycle frequency for input states is limited to 25 Hz to ensure reliable debounce processing and hardware register latching.
Q: How are the 32 input channels grouped for power supply and commons?
A: The 32 channels are isolated in two common groups of 16 channels each, allowing separate external power supply configurations while maintaining a 500 V AC dielectric isolation barrier between groups.
Q: Is hot-swap capability supported during runtime rack maintenance?
A: Hot-swapping is supported when executing module replacement procedures under controlled system redundancy states, provided that terminal blocks are mechanically secured and system software acknowledges node isolation.
Field Installation Guidelines
Mount the ADV151-P13 module onto standard Yokogawa node unit base plates or remote node units using the designated locking mechanism. Ensure all field wiring shields are grounded at a single point to prevent electromagnetic coupling. Verify that external loop power supplies deliver a stable 24 V DC within the specified 18-26.4 V DC tolerance range prior to terminal block connection. Inspect terminal screws for correct torque ratings to prevent intermittent contact resistance under vibration conditions.
