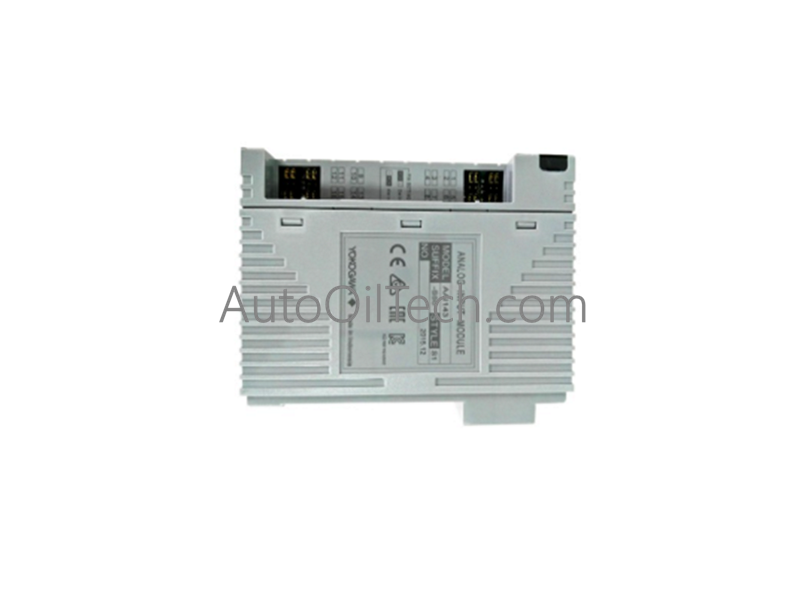

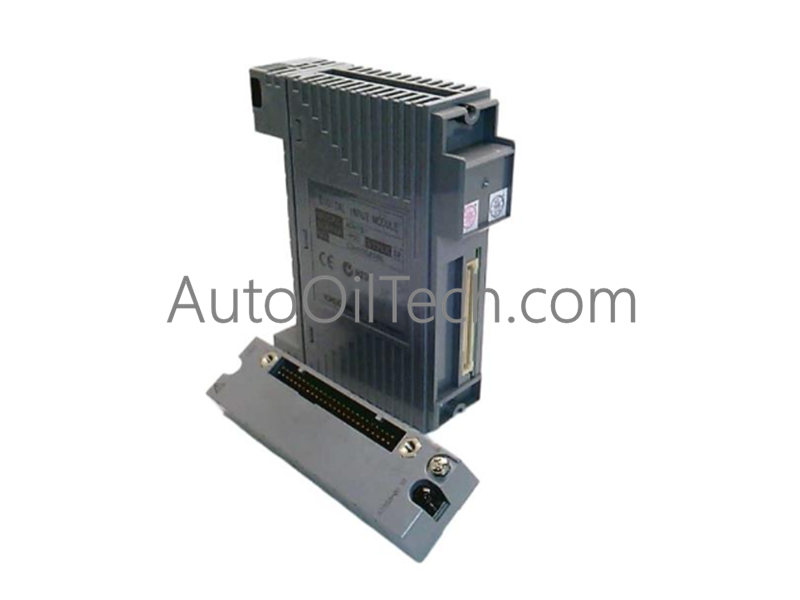

Yokogawa ADV151-P00 Digital Input Unit

Configured for high-density digital signal acquisition and push-button input processing in process control system networks, the Yokogawa ADV151-P00 (ADV151-P00 Digital Input Unit) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

Hardware Specifications

Channel-to-Channel Isolation and 4-20 mA HART Loop Protocol

The ADV151-P00 unit incorporates robust channel-to-channel isolation architecture to eliminate ground loops and prevent electrical noise propagation between external field pushbuttons and internal system processor nodes. It processes high-density discrete status signals across reliable internal bus pathways, ensuring deterministic switching updates for real-time control loops. Furthermore, internal signal conditioning circuitry maintains strict voltage tolerance limits across 24 V DC input channels, protecting internal logic components from transient electrical surges originating in industrial field wiring.

Frequently Asked Questions

Q: What is the total number of input channels supported by the ADV151-P00 unit?

A: The module supports 32 independent digital input channels designed to handle 24 V DC discrete signals and pushbutton inputs.

Q: Can the ADV151-P00 unit be replaced while the system rack is energized?

A: Hot-swap capability depends on the specific node chassis design; however, standard DCS maintenance guidelines recommend isolating system power to prevent backplane bus interruption.

Field Installation Guidelines

Ensure that the node baseplate is completely de-energized before mounting the ADV151-P00 unit into the designated system rack slot. Route external field pushbutton and sensor wiring through dedicated cable ducts, maintaining physical separation from high-voltage power lines to prevent electromagnetic coupling. Verify that terminal block connections are torqued securely and that module retaining screws are fully tightened to maintain reliable backplane edge-connector engagement.
