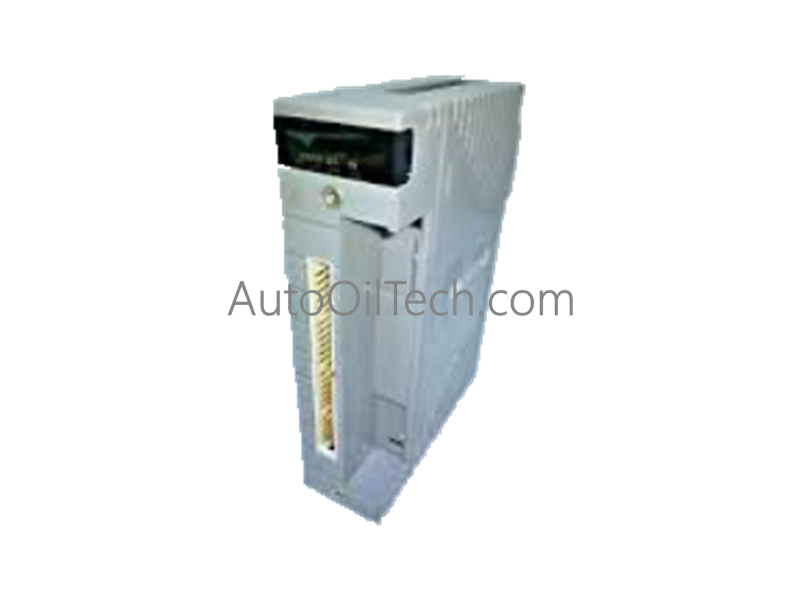

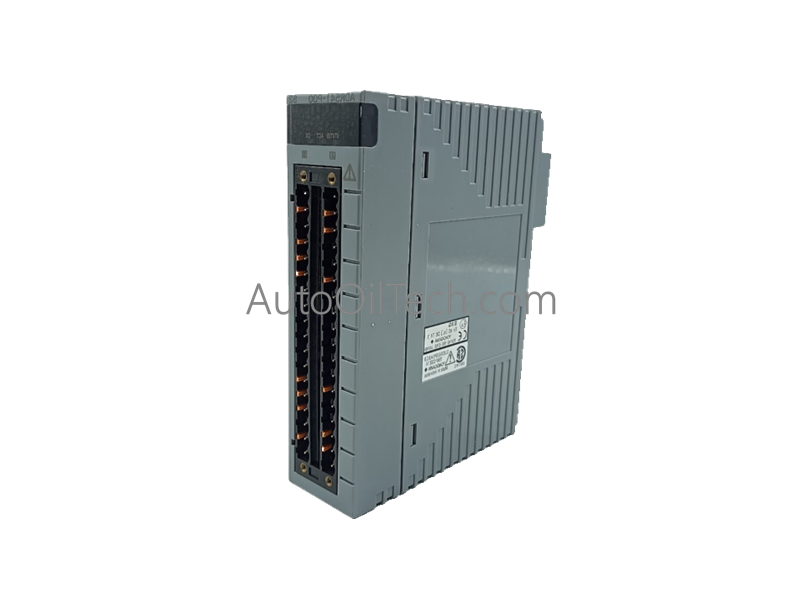

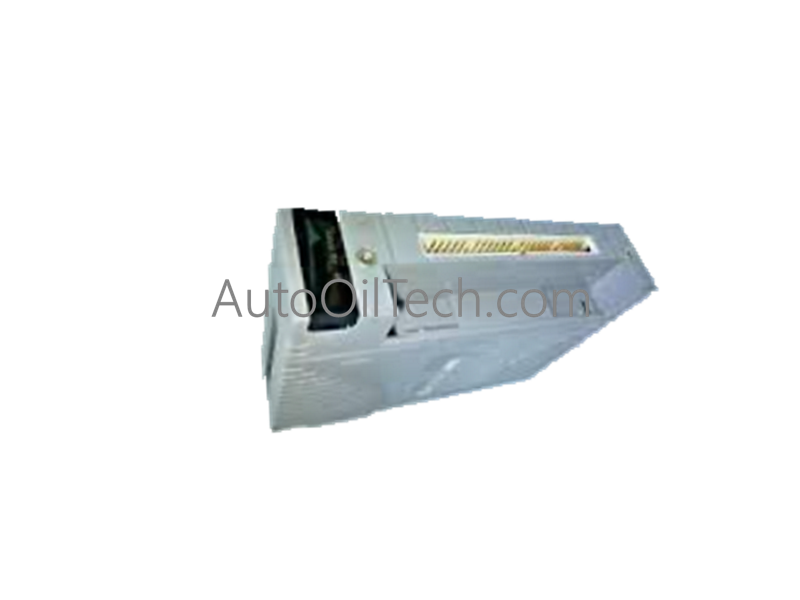

Yokogawa ADV151-E00 S2 Digital Input

Configured for high-density digital signal acquisition in Yokogawa FIO system networks, the Yokogawa ADV151-E00 S2 (ADV151-E00 S2 Digital Input Module) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

Hardware Specifications

Channel-to-Channel Isolation and 4-20 mA HART Loop Protocol

The ADV151-E00 S2 module integrates robust channel-to-channel isolation architecture to eliminate ground loops and prevent electrical noise propagation between external field switching devices and internal FIO processor nodes. It processes high-density discrete inputs concurrently across reliable internal bus pathways, ensuring deterministic status updates for real-time control loops within hazardous environments. Furthermore, internal signal conditioning circuitry maintains strict voltage tolerance limits across 24 V DC input channels, protecting internal logic components from transient electrical surges.

Frequently Asked Questions

Q: What hazardous location certifications apply to the ADV151-E00 S2 module?

A: The module is rated for use in Class I, Division 2, Groups A, B, C, D environments and carries an ATEX classification of Ex nC [nL] IIC T4 X.

Q: Can the module be installed in standard non-hazardous Yokogawa FIO racks?

A: Yes, the unit is fully compatible with standard FIO node baseplates while providing reinforced protection suitable for classified locations.

Field Installation Guidelines

Ensure that the FIO node baseplate is completely de-energized and locked out before mounting the ADV151-E00 S2 module into the designated system rack slot. Route external digital sensor wiring through dedicated cable ducts, maintaining physical separation from high-voltage power lines to prevent electromagnetic coupling. Verify that terminal block connections are torqued securely and that module retaining screws are fully tightened to maintain reliable backplane edge-connector engagement.
