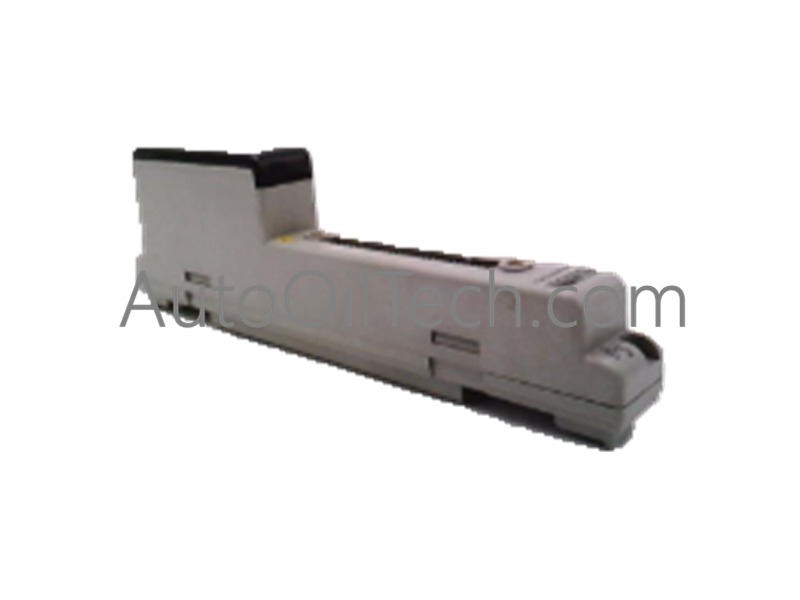

Yokogawa ADM52C-2 S3 Output Module

The Yokogawa ADM52C-2 S3, also cataloged as the ADM52C-2 S3 Output Module, operates as a dedicated hardware component for discrete signal conversion and relay output command execution within CENTUM series DCS networks.

Suffix Breakdown & Model Matrix

Hardware Specifications

Channel-to-Channel Isolation and 4-20 mA HART Loop Protocol

The ADM52C-2 S3 module integrates robust channel-to-channel isolation architecture to eliminate ground loops and prevent electrical noise propagation between external field actuators and internal CENTUM processor nodes. It processes discrete switching commands across reliable bus pathways, ensuring deterministic actuation of on/off control loops. Furthermore, internal signal conditioning circuitry maintains strict voltage tolerance limits across 30 VDC supply rails, protecting downstream switching elements from transient inductive feedback during rapid load de-energization.

Frequently Asked Questions

Q: What is the maximum contact rating for the outputs on the ADM52C-2 S3 module?

A: Each output channel is rated for a maximum of 30 VDC and 100 mA under standard industrial resistive or inductive load conditions.

Q: Can the ADM52C-2 S3 module be replaced while the node rack is powered on?

A: Hot-swap capability depends on the specific node chassis architecture; however, standard DCS maintenance guidelines recommend isolating system power to prevent backplane bus interruption.

Field Installation Guidelines

Ensure that the node baseplate and external field power feeds are completely de-energized before mounting the ADM52C-2 S3 module into the designated CENTUM DCS rack slot. Route external actuator control wiring through dedicated cable ducts, maintaining physical separation from high-voltage power lines to prevent electromagnetic coupling. Verify that terminal block connections are torqued securely and that module retaining screws are fully tightened to maintain reliable backplane edge-connector engagement.
