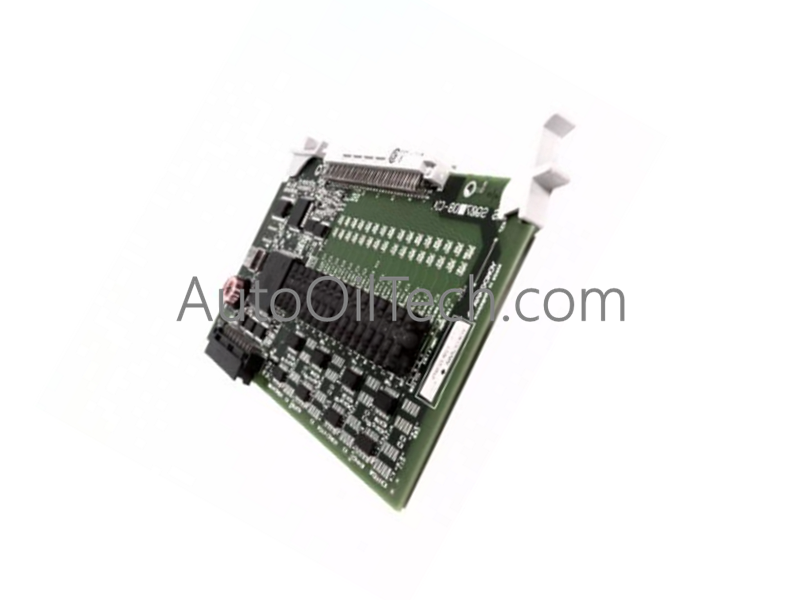

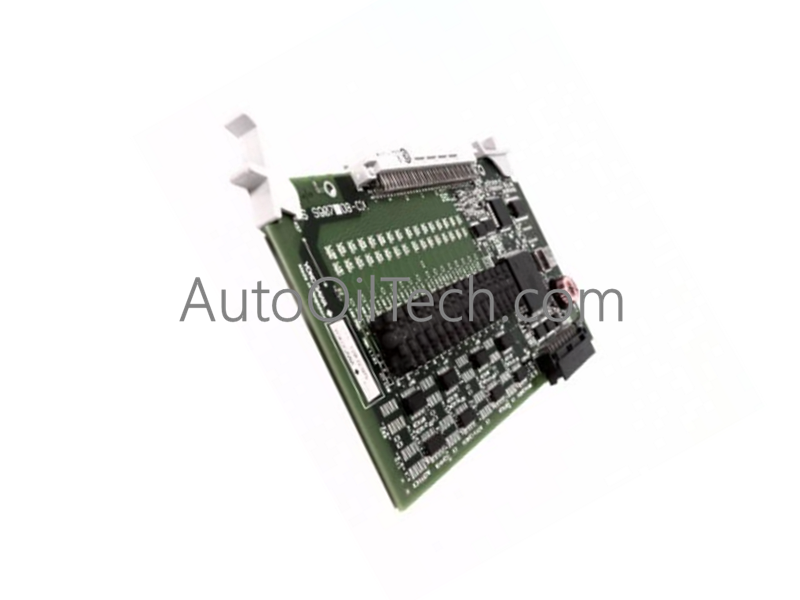

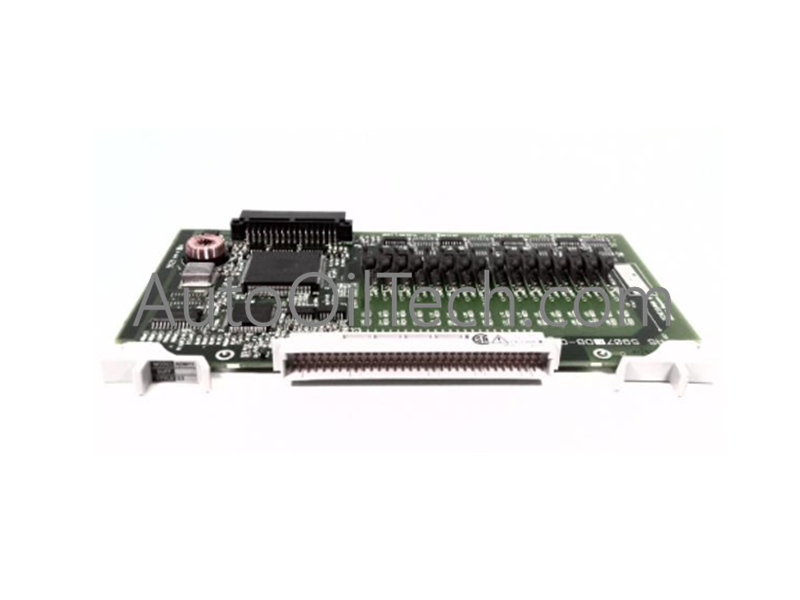

Configured for real-time data acquisition in CENTUM VP Distributed Control System (DCS) platforms, the Yokogawa ADM11 S3 (ADM11 S3 Contact Input Module) provides direct physical/electrical execution.
Suffix Breakdown & Model Matrix
The catalog designation ADM11 S3 defines a specific hardware revision and channel architecture. The base designation ADM11 identifies the contact input module framework, while the -S3 suffix designates the hardware build configuration and CENTUM VP compatibility parameters.
Hardware Specifications
Parameter
Specification
Model
ADM11 S3
Brand
Yokogawa
Origin
Global Manufacturing Facility
Weight
0.65 lbs
Dimensions
Not Specified
Operating Temp
0 deg C to +60 deg C
Power Consumption
Low power consumption
Channels
16
Input Voltage Range
4-32 V DC
Mounting Style
DIN rail mountable
4-20 mA HART Loop Protocol and Channel Isolation
The contact input module processes discrete field states across automation networks while maintaining rigorous electrical isolation boundaries. Key operational characteristics include:
Monitoring the on/off status of switches, pushbuttons, and sensors across 16 discrete input channels operating within a 4-32 V DC input voltage range.
Utilizing galvanic isolation between each input channel to prevent common-mode noise propagation and ground loop interference.
Delivering fast response time performance to detect input signal changes and provide accurate real-time data to the control system.
Frequently Asked Questions
Q: What is the input voltage range and channel capacity of the ADM11 S3?
A: It features 16 input channels with an operating input voltage range of 4-32 V DC.
Q: What mounting style does this module support?
A: It is DIN rail mountable for installation within industrial control enclosures.
Field Installation Guidelines
Ensure all associated power supplies and system racks are completely de-energized and locked out (LOTO) prior to mounting or wiring the module.
Secure the module firmly onto standard DIN rail assemblies within the control cabinet, verifying stable mechanical alignment.
Terminate field switch, pushbutton, and sensor wiring carefully to the designated terminals, maintaining proper galvanic isolation boundaries.
Verify channel input voltage levels within the 4-32 V DC range and test signal response continuity prior to restoring system power.
