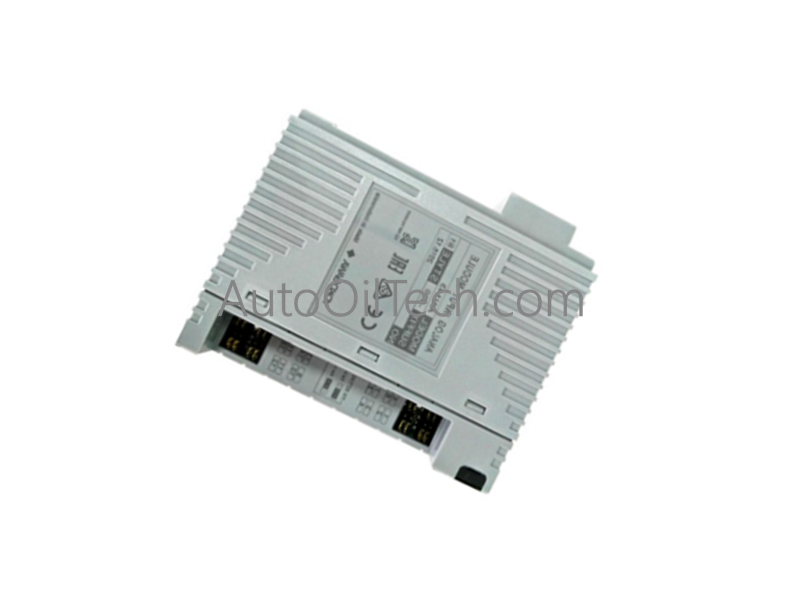

Yokogawa ACM71 Ethernet Communication Module

Configured for high-speed data gateway linking and network bridging in distributed control systems, the Yokogawa ACM71 (ACM71 Ethernet Communication Module) provides direct physical execution of real-time data transmission across field control station platforms.

Hardware Specifications

Industrial Process Control and Networks

• 4-20 mA HART Loop Protocol Integration: The communication module functions as an upper-layer transmission bridge, routing digital telemetry from field instruments up to supervisory Ethernet networks. This framework handles the parallel extraction of secondary variable data from localized 4-20 mA HART loops, enabling diagnostic access without altering basic process variables.
• Channel-to-Channel Isolation Protection: Internal electrical paths feature robust galvanic barriers that isolate the field-side network signals from the central processing backplane logic. This structural channel-to-channel isolation prevents electrical ground loops, inductive spikes, or high-voltage faults on the 10BASE-T line from damaging adjacent controller logic.
• Cold Junction Compensation Coordination: When the module moves data from temperature-sensing sub-nests, the internal serial-to-Ethernet translation maps process information alongside localized cold junction compensation (CJC) factors. This maintains overall loop precision when thermocouple inputs are routed across the factory network.

Frequently Asked Questions

Q: What specific hardware states are indicated by the physical SND, RCV, and RDY LED matrix during runtime operation?

A: The SND (Send) and RCV (Receive) LEDs flash dynamically to verify active packet transfer across the 10 Mbps media layer. The RDY (Ready) LED remains solidly illuminated to confirm the module has passed its internal power-on self-test (POST) and is successfully receiving its 5.0 V DC logic supply from the nest backplane.

Q: What are the engineering consequences if an unshielded twisted-pair (UTP) segment exceeds the defined 100-meter physical boundary?

A: Exceeding the 100-meter limit causes attenuation of the 10BASE-T signal and increases the likelihood of frame collisions. Because the module does not use internal signal amplifiers for extended loops, distances beyond 100 meters require an active external network hub or switch to prevent packet truncation and data loss.
