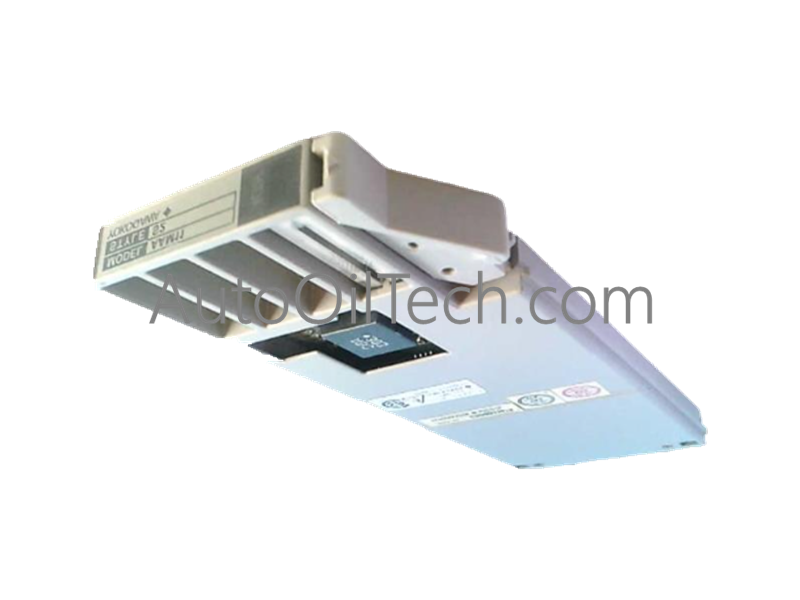

Configured for analog signal output to field devices such as valves, actuators, and indicators in Yokogawa CENTUM CS 3000 systems, the Yokogawa AAM50 (AAM50 Analog Output Module) provides direct physical/electrical execution.
Suffix Breakdown & Model Matrix
The catalog designation AAM50 establishes the primary hardware architecture and channel configuration profile for the analog output module series.
Hardware Specifications
Parameter
Specification
Model
AAM50
Brand
Yokogawa
Origin
Global Manufacturing Facility
Weight
0.4 kg (0.88 lbs)
Dimensions
130 x 30 x 100 mm (5.1 x 1.2 x 3.9 in)
Operating Temp
-20 deg C to +60 deg C
Power Consumption
Approximately 5 W
Power Supply
24 VDC
Output Channels
8 isolated current output channels
Output Range
4 to 20 mA DC
4-20 mA HART Loop Protocol and Channel Isolation
The module executes precise control over field actuators through specialized analog loop architecture. Key operational characteristics include:
Delivering accurate 4 to 20 mA DC current output across 8 independent channels to interface directly with control valves and indicators.
Utilizing robust channel-to-channel isolation to prevent ground loops and external electrical interference, thereby preserving signal integrity.
Maintaining stable signal conditioning paths suited for demanding industrial process control requirements.
Frequently Asked Questions
Q: What are the power supply requirements and consumption levels for the AAM50 module?
A: It requires a 24 VDC power supply and has a power consumption of approximately 5 W.
Q: Which control systems are compatible with this analog output module?
A: It is fully compatible with Yokogawa's CENTUM CS 3000 system and other matching industrial automation platforms.
Field Installation Guidelines
Ensure the system rack power supply is completely de-energized and locked out (LOTO) prior to mounting or wiring the AAM50 module.
Slide the 130 x 30 x 100 mm unit carefully into the designated control panel slot, ensuring proper backplane pin alignment.
Terminate field wiring for the 4 to 20 mA DC outputs securely, maintaining correct shielding to leverage the channel isolation design.
Verify loop continuity and calibration settings across all 8 channels before restoring 24 VDC power and resuming system operations.
