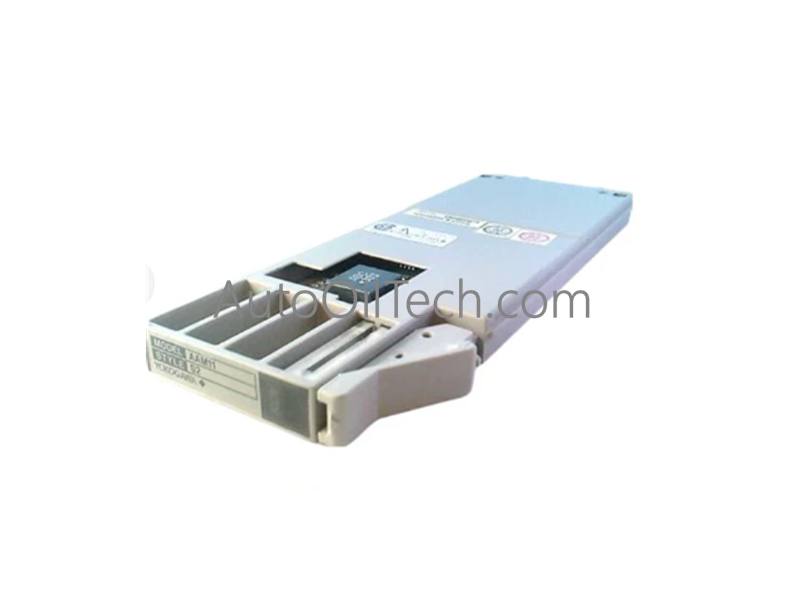

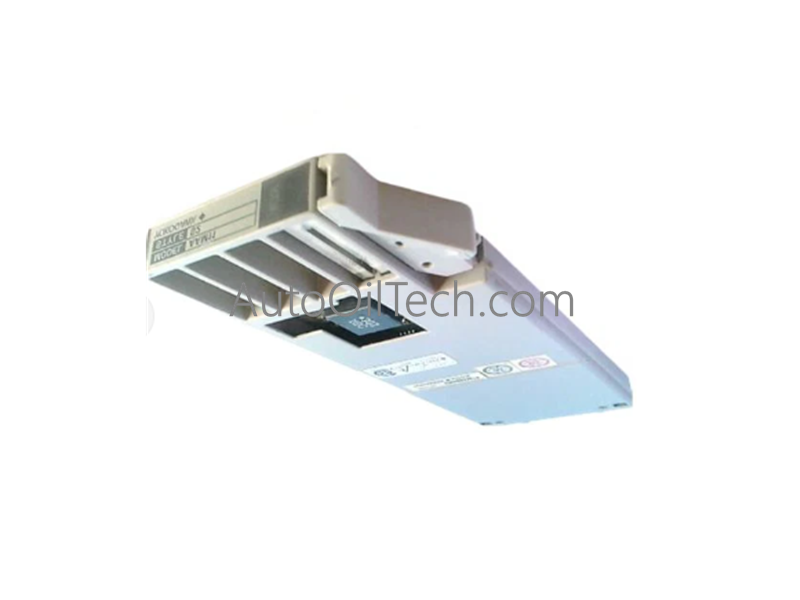

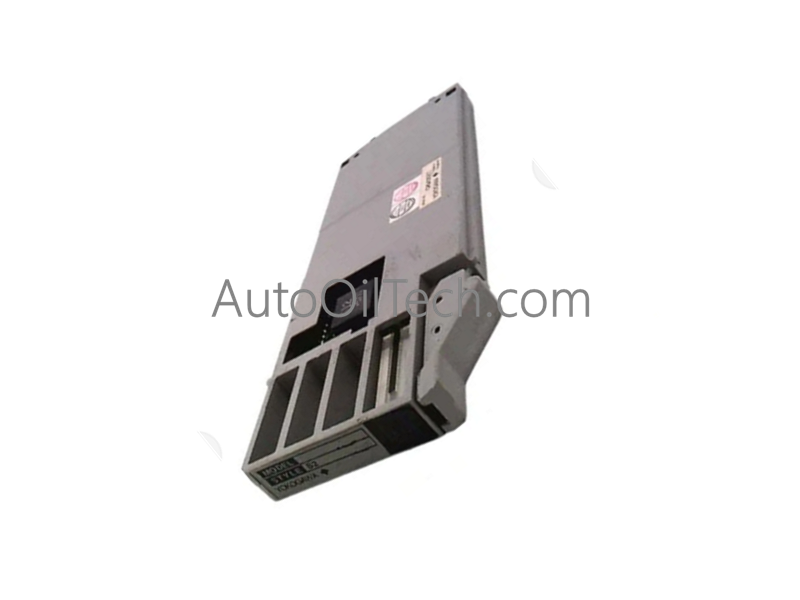

Yokogawa AAM11 S2 Pulse Input Modules
No reviews
In stock!
- Part Number: AAM11 S2
- Brand: Yokogawa
- Type: Pulse Input Modules
- Dimensions: 3.3x10.7x13cm
- Country of Origin: Japan
- Barcode: 8537101190
Share
Additional Specifications
| Color / Pattern |
|
| Power Source |
|
| Communication Protocols |
|
| Controller Design |
|
Product Description
The Yokogawa AAM11 S2, also cataloged as the AAM11 Pulse Input Modules, operates as a dedicated hardware component for receiving and processing contact pulse, voltage pulse, and current pulse signals from the field within industrial control system networks.
Suffix Breakdown & Model Matrix
- AAM11: Base model designation representing a pulse input module configuration.
- -S2: Style specification suffix indicating the specific hardware revision and mounting compatibility level.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | AAM11 S2 |
| Brand | Yokogawa |
| Origin | Japan |
| Weight | Standard industrial weight |
| Dimensions | Standard Yokogawa module form factor |
| Operating Temp | Standard industrial operating range |
| Power Consumption | 46 mA or lower (24.0 V DC) for 24 V system power; 10 mA or lower (5.0 V DC) for 5 V DC internal power |
| Input Types | Voltage, current, and temperature inputs (thermocouples, RTDs) |
| Withstanding Voltage | 1500 V AC for 1 minute between field and system; 42 V DC |
Process Control and DCS Connectivity
Configured for deterministic process communication across Yokogawa DCS platforms, the module ensures strict channel-to-channel isolation and 4-20 mA HART loop protocol connectivity. The circuitry maintains cold junction compensation (CJC) processing capabilities where applicable and supports FOUNDATION Fieldbus or Profibus PA connectivity. Real-time analog-to-digital conversion minimizes signal distortion across all active input loops.
Frequently Asked Questions
Q: Does the AAM11 S2 module support live insertion and removal under power?
A: Yes, the module supports hot-swap operations within designated node units when using an active redundant base interface, provided proper system grounding is maintained.
Q: How is signal conversion handled across the input channels?
A: The module converts input signals into isolated transistor contact pulses, which are output as auxiliary signals for further use in industrial control systems.
Field Installation Guidelines
- Verify that the node slot connector is clean and free of particulate debris prior to module insertion.
- Ensure proper shield grounding of all incoming field signal cables to the designated cabinet grounding bar to reduce electromagnetic interference.
- Check terminal block screw torque values to prevent high-resistance connections in high-vibration industrial environments.
- Confirm that the module firmware matches the host node processor revision level before system startup.
