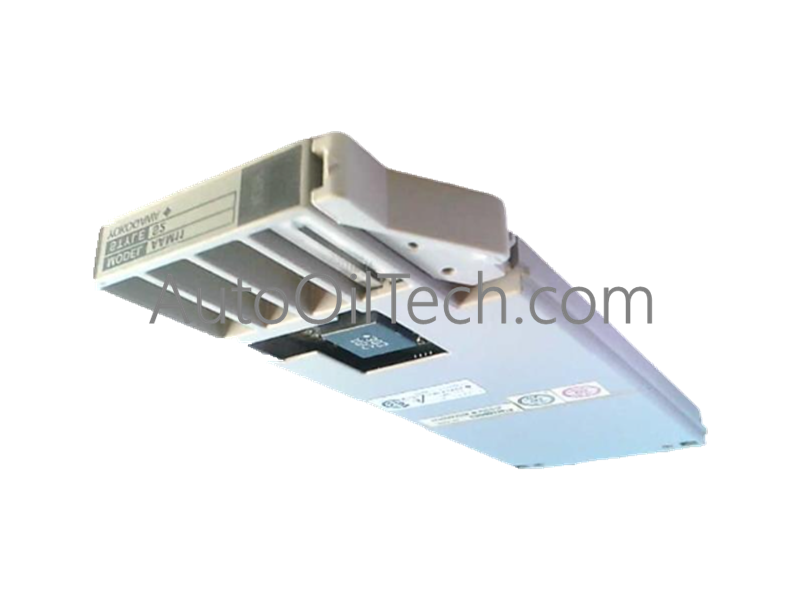

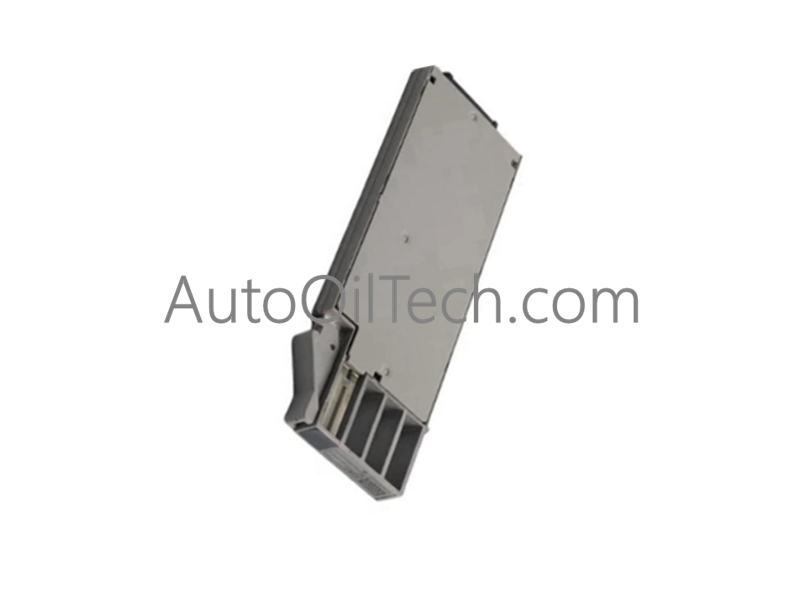

Yokogawa AAM11-S2 Analog Input/Output Module

The Yokogawa AAM11-S2, also cataloged as the AAM11-S2 Analog Input/Output Module, operates as a dedicated hardware component for connecting field devices such as transmitters and valve positioners to the control system within industrial automation architectures.

Suffix Breakdown & Model Matrix

The catalog designation AAM11-S2 defines a specific hardware revision and functional profile. The base designation AAM11 identifies the analog input/output module architecture, while the -S2 suffix dictates the specific interface and hardware build configuration parameters.

Hardware Specifications

4-20 mA HART Loop Protocol and Channel Isolation

The module manages analog signal acquisition and communication across automation networks while maintaining rigorous electrical parameters. Key operational characteristics include:

• Supporting standard 4-20 mA current loop input signals combined with HART communication protocol to enable remote configuration and diagnostics for connected field instruments.
• Providing isolated input channels to enhance safety and effectively reduce noise interference from external plant environments.
• Delivering high measurement accuracy of 0.1% or better while supporting multiple input signal types including voltage and current configurations.

Frequently Asked Questions

Q: Does the AAM11-S2 support HART communication protocol for field devices?

A: Yes. It supports HART communication allowing up to 16 devices and 32 HART variables for remote configuration and diagnostics.

Q: What power supply and operating temperature range are specified for this module?

A: It requires a 24 VDC power supply and operates within a temperature range of -10 deg C to +55 deg C.

Field Installation Guidelines

1. Ensure all associated power supplies and system racks are completely de-energized and locked out (LOTO) prior to installing or wiring the module.
2. Route standard 4-20 mA current loop signal cabling carefully away from high-voltage power lines to preserve signal integrity and minimize noise interference.
3. Terminate field transmitter and valve positioner connections securely, ensuring proper shielding and grounding practices for isolated input channels.
4. Verify power supply voltage levels at 24 VDC and check communication loop continuity prior to restoring system power.
