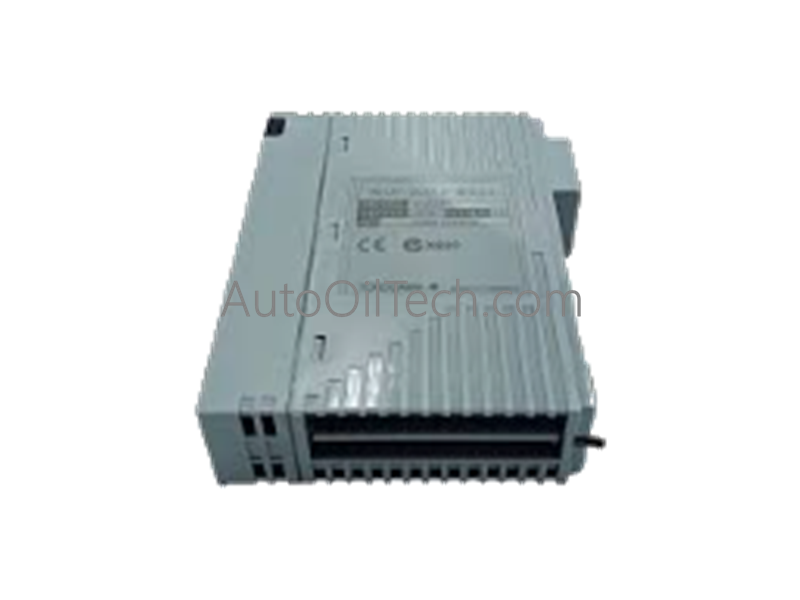

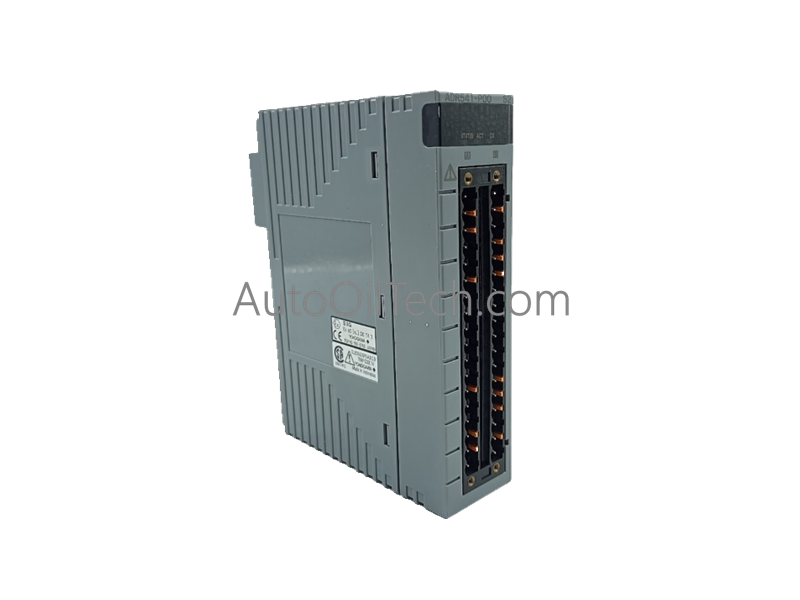

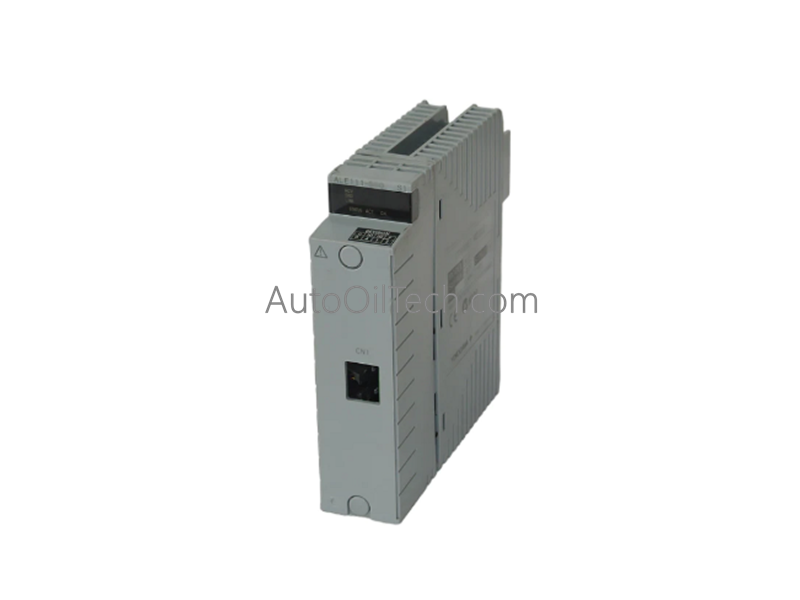

Yokogawa AAM10 S1 Input Modules

Configured for current and voltage signal processing in distributed control system architectures, the Yokogawa AAM10 S1 (AAM10 Current Voltage Input Module) provides direct physical/electrical execution across process monitoring loops.

Suffix Breakdown & Model Matrix

• AAM10: Base model designation representing a current voltage input module.
• S1: Style specification suffix indicating the revision level.

Hardware Specifications

Process Control and DCS Connectivity

Operating within Yokogawa process automation frameworks, the module executes signal acquisition through channel isolation and standard loop architectures. The input circuitry maintains signal conversion capabilities for current and voltage inputs. Real-time data processing minimizes signal distortion and ensures accurate monitoring across all active sensor loops.

Frequently Asked Questions

Q: Does the AAM10 S1 module support live insertion and removal under power?

A: Yes, the module supports hot-swap operations within designated node units when using an active redundant base interface, provided proper system grounding is maintained.

Q: What type of signal configuration does this module handle?

A: The module handles current and voltage input signals for industrial process measurement loops.

Field Installation Guidelines

1. Verify that the node slot backplane connector is free of dust or oxidation prior to physical module insertion.
2. Ensure that field wiring shields are properly grounded at the designated cabinet grounding bar to mitigate electromagnetic interference.
3. Check all terminal block fastening screws to guarantee mechanical security under heavy industrial vibration conditions.
4. Confirm that node processor firmware compatibility matches the revision requirements of the installed input module before power-up.
