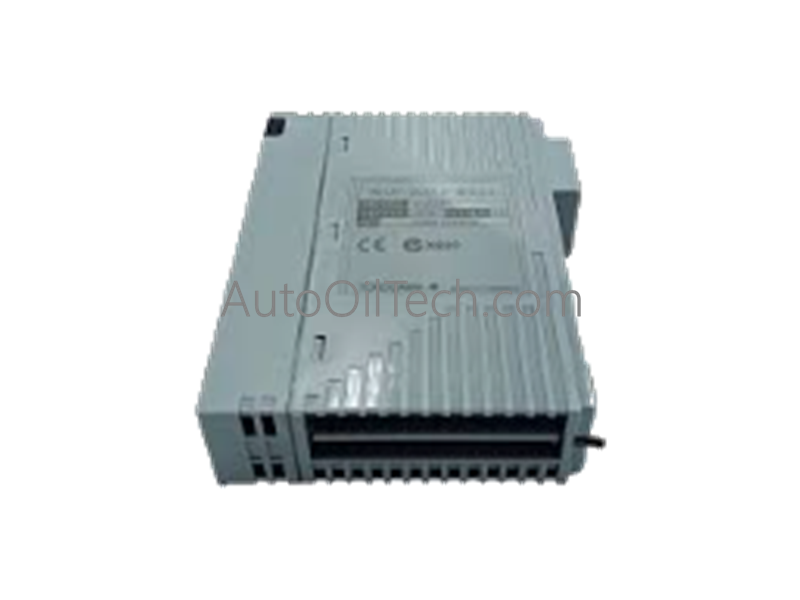

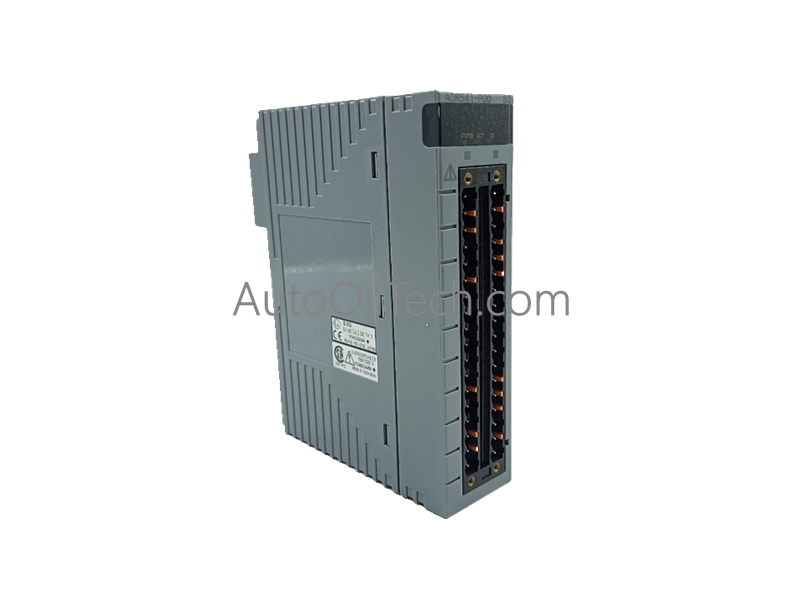

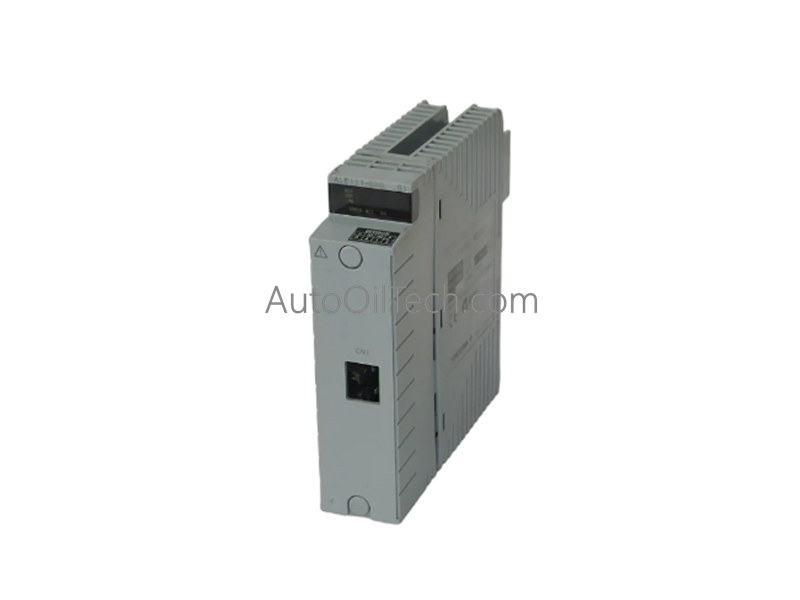

The Yokogawa AAI841-S00 S2, also cataloged as the AAI841 Analog Input/Output Modules, operates as a dedicated hardware component for multi-channel analog signal processing and current loop execution within distributed control system networks.
Suffix Breakdown & Model Matrix
AAI841: Base model designation representing a combination analog input/output module.
-S00: Suffix code indicating standard configuration type.
S2: Style specification suffix denoting the revision level.
Hardware Specifications
Parameter
Specification
Model
AAI841-S00 S2
Brand
Yokogawa
Origin
Japan
Weight
2.20 lbs
Dimensions
Standard Yokogawa PLC module form factor
Operating Temp
Standard industrial operating range
Power Consumption
Internal bus powered
Module Type
Analog I/O Module
Process Control and DCS Connectivity
Configured for deterministic process control across Yokogawa DCS platforms, the module ensures strict channel-to-channel isolation and 4-20 mA HART loop protocol connectivity. The circuitry maintains precise signal conversion capabilities for both input and output loops. Real-time data processing minimizes signal jitter and ensures accurate execution across all active control and monitoring circuits.
Frequently Asked Questions
Q: Does the AAI841-S00 S2 module support live insertion and removal under power?
A: Yes, the module supports hot-swap operations within designated node units when using an active redundant base interface, provided proper system grounding is maintained.
Q: What type of signal configuration does this module handle?
A: The module handles analog input and output signals for industrial process automation loops.
Field Installation Guidelines
Verify that the node slot connector is clean and free of particulate debris prior to module insertion.
Ensure proper shield grounding of all field signal cables to the designated cabinet grounding bar to reduce electromagnetic interference.
Check terminal block screw torque values to prevent high-resistance connections in high-vibration industrial environments.
Confirm that the module firmware matches the host node processor revision level before system startup.
