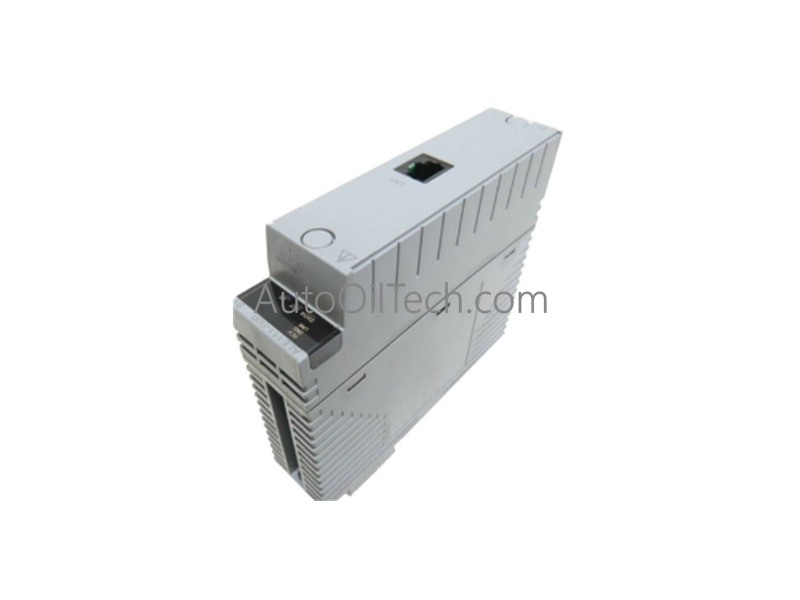

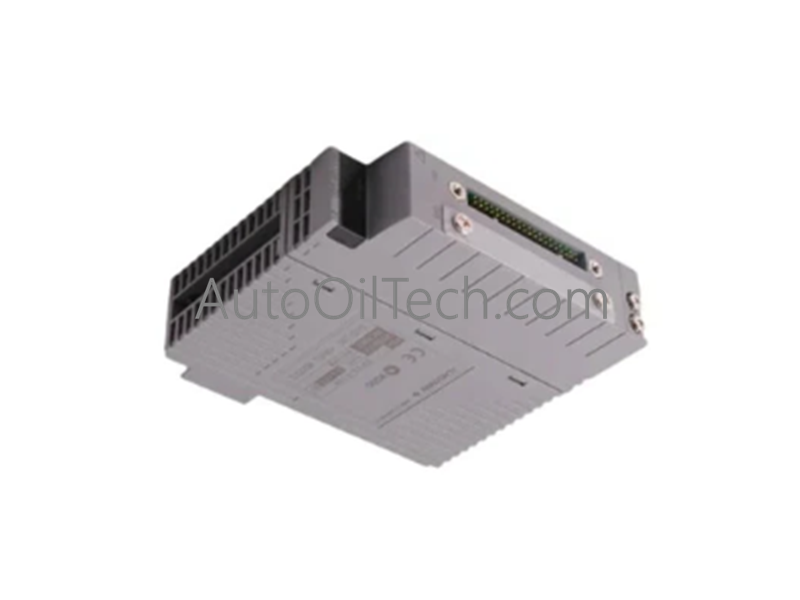

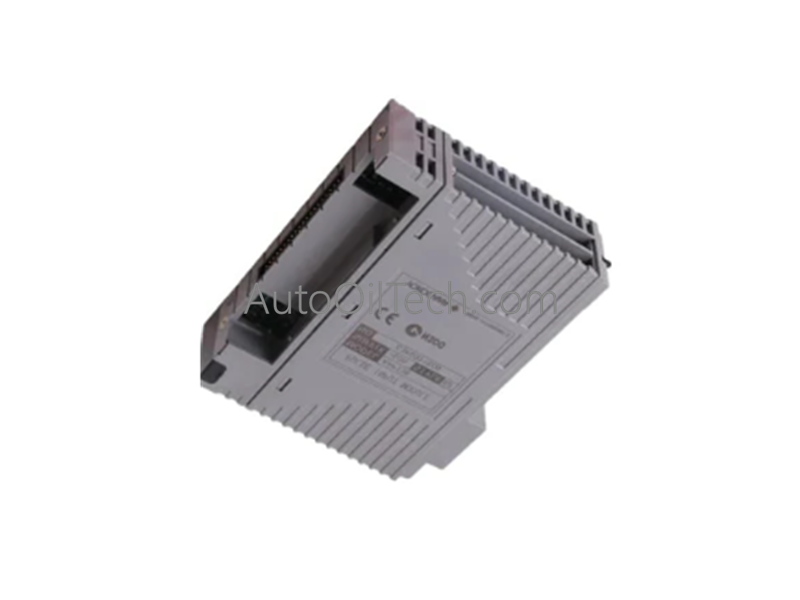

Yokogawa AAI543-H50 Output Modules

In stock!
  • Part Number: AAI543-H50
  • Brand: Yokogawa
  • Type: Analog Output Modules
  • Dimensions: 3.3x10.7x13cm
  • Country of Origin: Japan
  • Barcode: 8537101190

Additional Specifications

Color / Pattern
  • Brown
  • Orange
  • Black
Power Source
  • DC-powered
  • AC-powered
Communication Protocols
  • Ethernet
  • Modbus
  • Profibus
  • Serial
Controller Design
  • Modular
  • Compact
Tags: Analog Output Modules , Yokogawa CENTUM VP

Product Description

The Yokogawa AAI543-H50, also cataloged as the AAI543 Analog Output Modules, operates as a dedicated hardware component for multi-channel analog signal control and current loop regulation within distributed control system networks.

Suffix Breakdown & Model Matrix

  • AAI543: Base model designation representing a 16-channel isolated analog output module.
  • -H: Suffix code indicating integrated digital communication via the HART protocol.
  • 50: Configuration and option codes specifying standard switch-over response in redundant setups without explosion protection variants.

Hardware Specifications

Parameter Specification
Model AAI543-H50
Brand Yokogawa
Origin Japan
Weight 0.4 Kg (Shipping Weight: 1.5 Kg)
Dimensions Standard Yokogawa CENTUM module form factor
Operating Temp -40 deg C to 85 deg C
Power Consumption 230 mA (5 V DC), 540 mA (24 V DC)
Output Channels 16 isolated 4 to 20 mA channels
Accuracy & Update ±0.05% FS accuracy, 10 ms data update period

Process Control and DCS Connectivity

Configured for deterministic process control across Yokogawa DCS platforms, the module ensures strict channel-to-channel isolation and 4-20 mA HART loop protocol connectivity. The circuitry maintains precise signal conversion capabilities through pressure clamp terminals, MIL connector cables, or dedicated KS1 cables. Real-time digital-to-analog conversion minimizes signal drift (±16 µA/10 deg C) and ensures accurate command execution across all active control loops.

Frequently Asked Questions

Q: Does the AAI543-H50 module support live insertion and removal under power?

A: Yes, the module supports hot-swap operations within designated node units when using an active redundant base interface, provided proper system grounding is maintained.

Q: What connection options are available for field wiring on this output module?

A: Field connections can be established using pressure clamp terminals, MIL connector cables, or dedicated KS1 cables.

Field Installation Guidelines

  1. Verify that the node slot connector is clean and free of particulate debris prior to module insertion.
  2. Ensure proper shield grounding of all outgoing field control cables to the designated cabinet grounding bar to reduce electromagnetic interference.
  3. Check terminal block screw torque values to prevent high-resistance connections in high-vibration industrial environments.
  4. Confirm that the module firmware matches the host node processor revision level before system startup.
