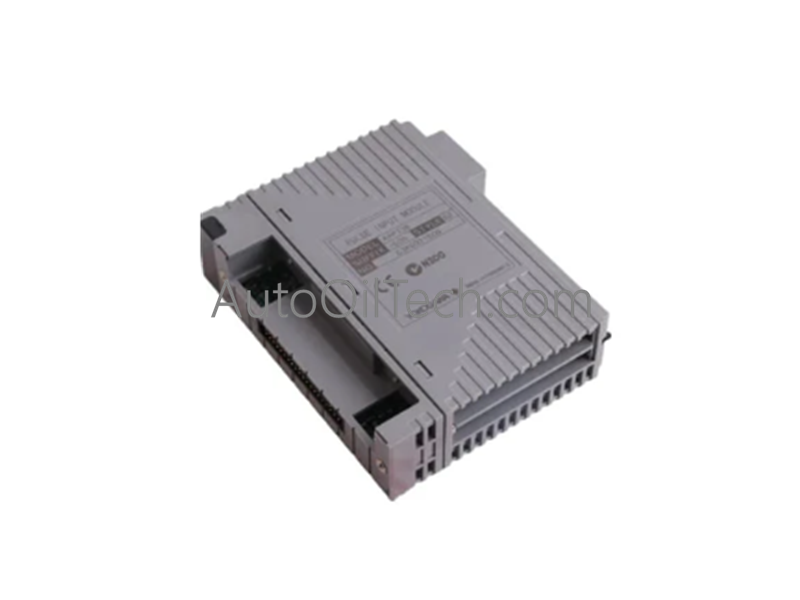

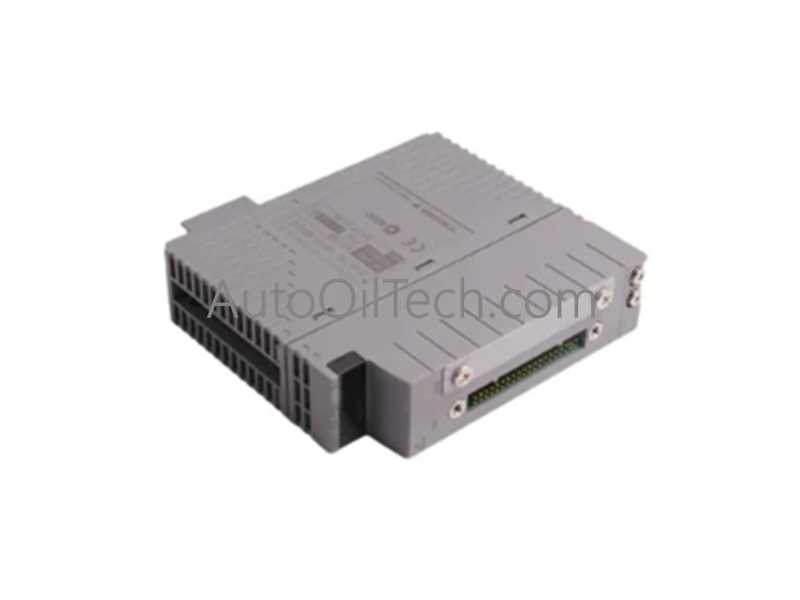

Yokogawa AAI543-H00 S1 Analog Output

The Yokogawa AAI543-H00 S1, also cataloged as the AAI543 Analog Output Modules, operates as a dedicated hardware component for multi-channel analog signal control and current loop regulation within distributed control system networks.

Suffix Breakdown & Model Matrix

• AAI543: Base model designation representing a multi-channel analog output module configured for current control signals.
• -H00: Suffix codes denoting specific hardware configuration, digital communication support, and basic standard type parameters.
• S1: Additional model specification suffix indicating standard revision.

Hardware Specifications

Process Control and DCS Connectivity

Configured for deterministic process control across Yokogawa CENTUM DCS platforms, the module ensures strict channel-to-channel isolation and 4-20 mA HART loop protocol connectivity. The circuitry maintains precise signal conversion capabilities and supports FOUNDATION Fieldbus or Profibus gateway integration layers within the node rack. Real-time digital-to-analog conversion minimizes signal jitter and ensures accurate command execution across all active control loops.

Frequently Asked Questions

Q: Does the AAI543-H00 S1 module support live insertion and removal under power?

A: Yes, the module supports hot-swap operations within designated node units when using an active redundant base interface, provided proper system grounding is maintained.

Q: How is the output signal protected against external line faults?

A: The module incorporates built-in current limitation and galvanic isolation to protect internal control circuits from external loop short-circuits or overvoltage conditions.

Field Installation Guidelines

1. Verify that the node slot connector is clean and free of particulate debris prior to module insertion.
2. Ensure proper shield grounding of all outgoing field control cables to the designated cabinet grounding bar to reduce electromagnetic interference.
3. Check terminal block screw torque values to prevent high-resistance connections in high-vibration industrial environments.
4. Confirm that the module firmware matches the host node processor revision level before system startup.
