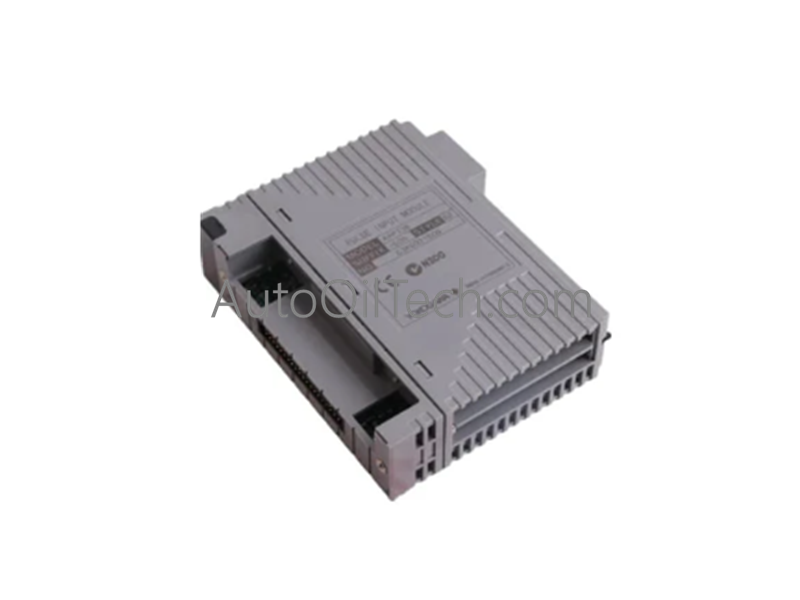

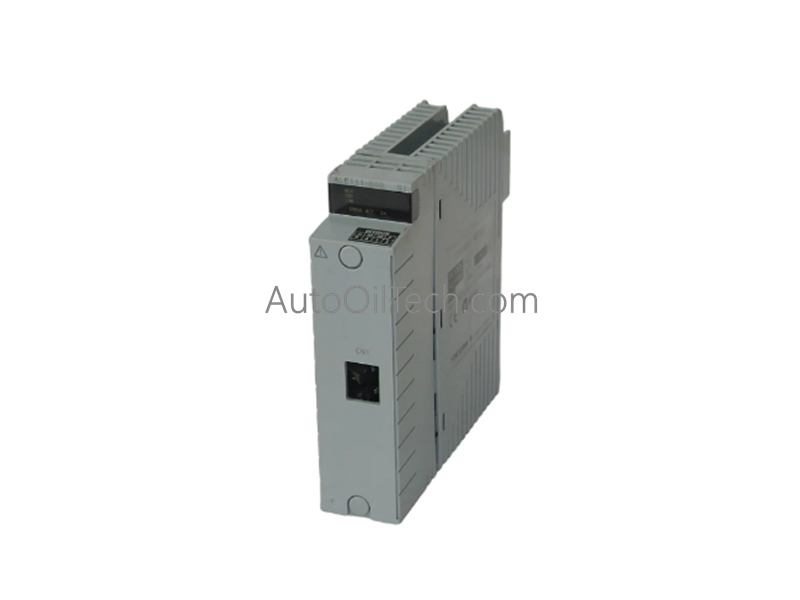

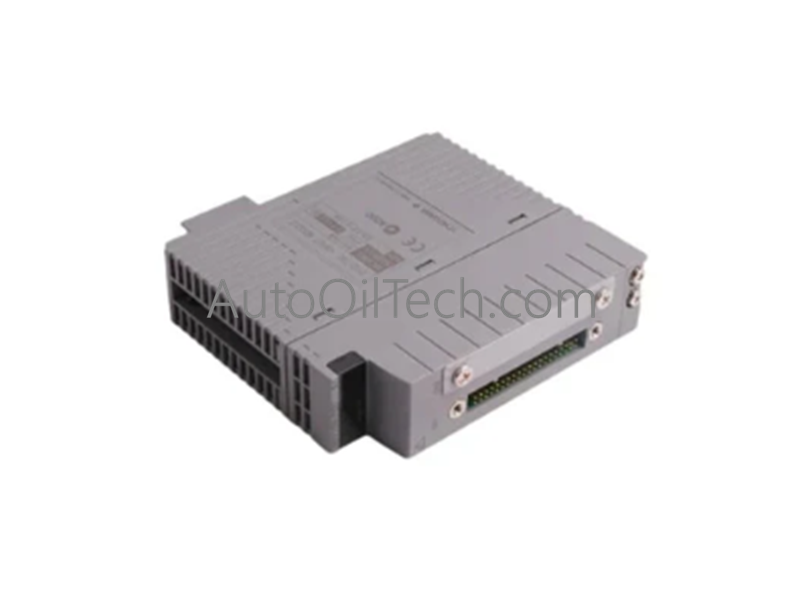

The Yokogawa AAI143-S50 S1, also cataloged as the AAI143 Analog Input Modules, operates as a dedicated hardware component for multi-channel analog signal acquisition and current loop monitoring within distributed control system networks.
Suffix Breakdown & Model Matrix
AAI143: Base model designation representing a 16-channel analog input module configured for 4 to 20 mA signal inputs.
-S: Suffix code indicating standard type.
5: Suffix code indicating with no explosion protection.
0: Basic type suffix code.
S1: Additional model specification suffix.
Hardware Specifications
Parameter
Specification
Model
AAI143-S50 S1
Brand
Yokogawa
Origin
Japan
Weight
0.3 Kg
Dimensions
Standard Yokogawa CENTUM module form factor
Operating Temp
0 deg C to 50 deg C
Power Consumption
24 VDC internal bus powered
Input Channels
16 channels, isolated
Signal Range
4 to 20 mA DC
Process Control and DCS Connectivity
Configured for deterministic process communication across Yokogawa CENTUM DCS platforms, the module ensures strict channel-to-channel isolation and 4-20 mA HART loop protocol connectivity. The circuitry maintains cold junction compensation (CJC) processing capabilities where applicable and supports FOUNDATION Fieldbus or Profibus gateway integration layers within the node rack. Real-time analog-to-digital conversion minimizes signal distortion across all active input loops.
Frequently Asked Questions
Q: Does the AAI143-S50 S1 module support live insertion and removal under power?
A: Yes, the module supports hot-swap operations within designated node units when using an active redundant base interface, provided proper system grounding is maintained.
Q: How is signal conversion handled across the 16 channels?
A: The onboard analog-to-digital circuitry samples all active 4-20 mA loops concurrently with internal optical isolation to prevent ground loop interference.
Field Installation Guidelines
Verify that the node slot connector is clean and free of particulate debris prior to module insertion.
Ensure proper shield grounding of all incoming field signal cables to the designated cabinet grounding bar to reduce electromagnetic interference.
Check terminal block screw torque values to prevent high-resistance connections in high-vibration industrial environments.
Confirm that the module firmware matches the host node processor revision level before system startup.
