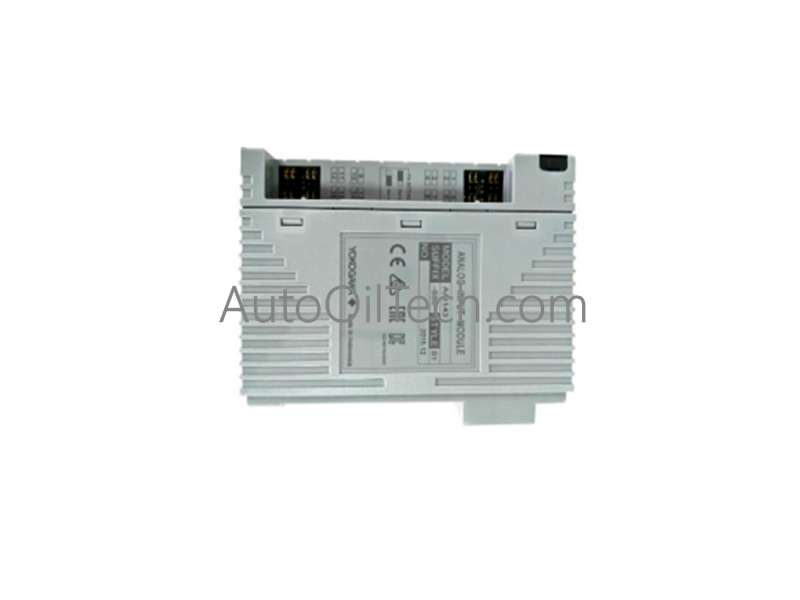

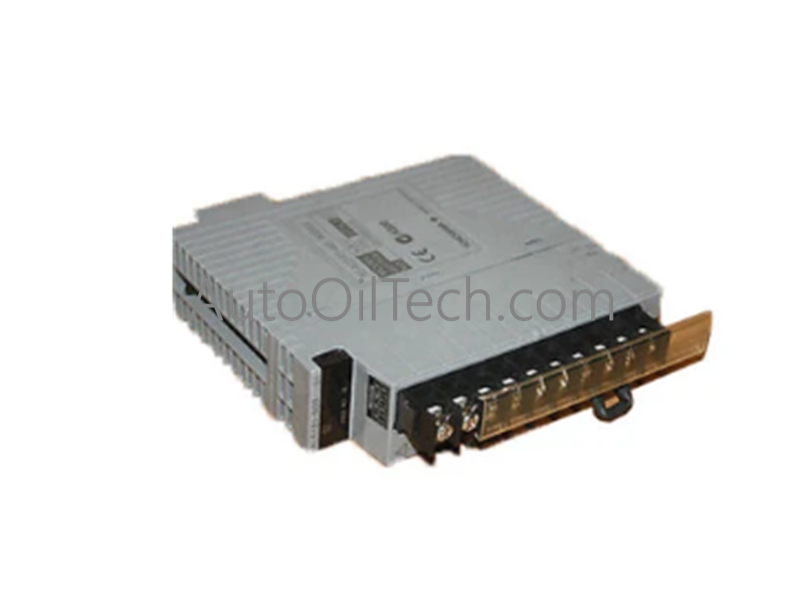

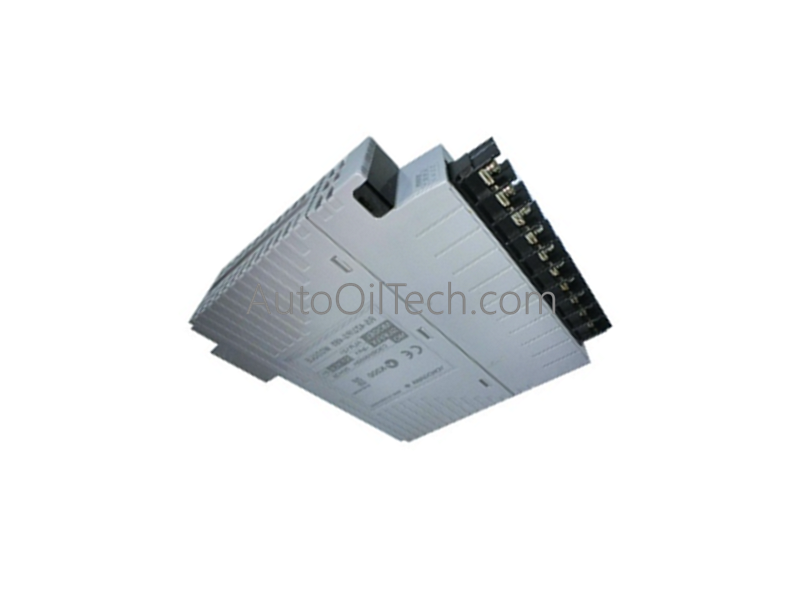

Configured for efficient data acquisition from a variety of analog sensors and transmitters in Yokogawa distributed control systems platforms, the Yokogawa 7M190-YDM06 (7M190-YDM06) Analog Input Module provides direct physical/electrical execution.
Versatile Input Options: Supports voltage, current, thermocouple, or RTD inputs for diverse industrial applications.
Channel-to-Channel Isolation: Features an isolation voltage of 500 VDC preventing ground loops and common-mode transient interference across measurement loops.
High-Accuracy Data Acquisition: Delivers 16-bit resolution with an accuracy of ±0.1% of span (typical) and a configuration-dependent sampling rate.
Frequently Asked Questions
Q: What distributed control systems are compatible with the 7M190-YDM06 module? A: It integrates seamlessly into Yokogawa's distributed control systems, such as CENTUM CS 3000.
Q: What input types are supported by this analog input module? A: It supports voltage, current, thermocouple, or RTD inputs.
Q: What are the resolution and isolation voltage ratings? A: It provides a 16-bit resolution and an isolation voltage of 500 VDC.
Field Installation Guidelines
Rack Mounting: Secure the compact and modular unit strictly into standard industrial automation enclosures utilizing all mounting provisions to withstand vibration profiles.
Grounding: Connect the module chassis and ground terminal directly to the system grounding bar to mitigate electromagnetic interference and maintain the 500 VDC isolation rating.
Power Cabling: Verify supply voltage polarity and source (24 VDC) before energizing to prevent internal fuse tripping.
Signal Wiring: Ensure proper shielding of analog input lines (voltage, current, thermocouple, RTD) to support high-accuracy data acquisition.
