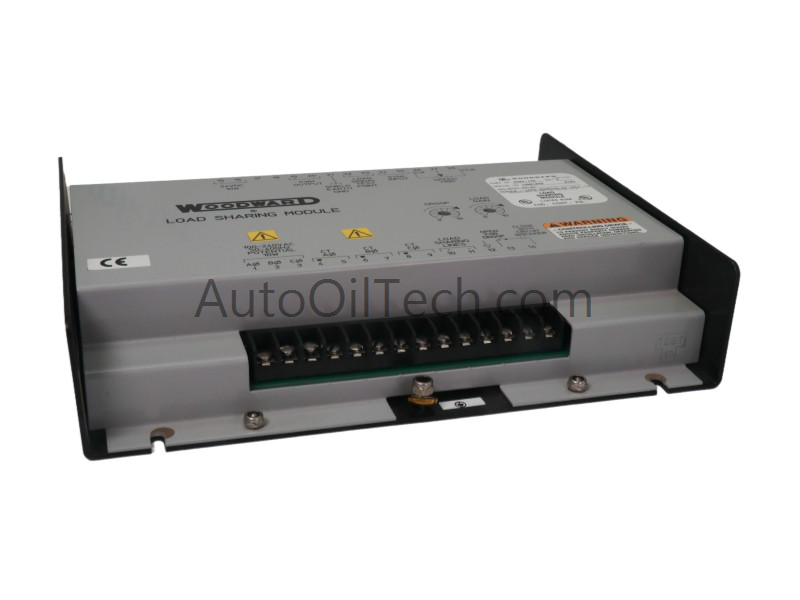

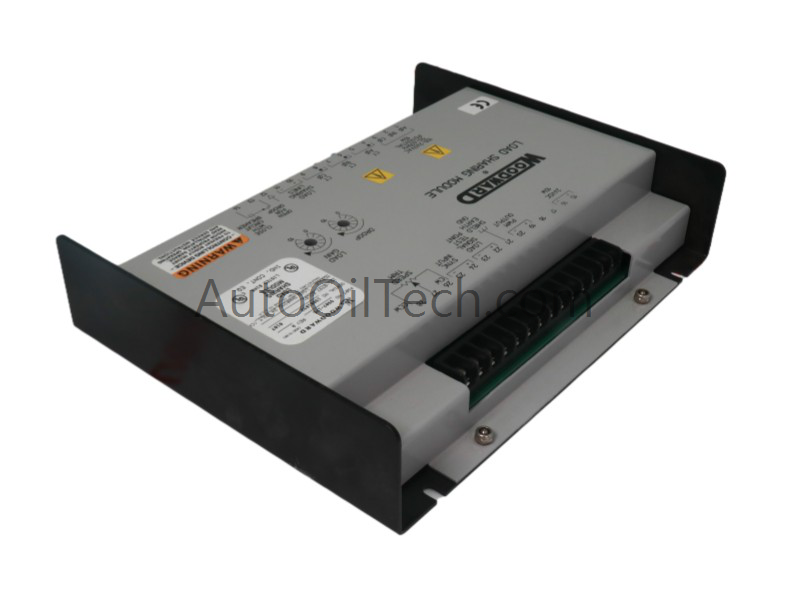

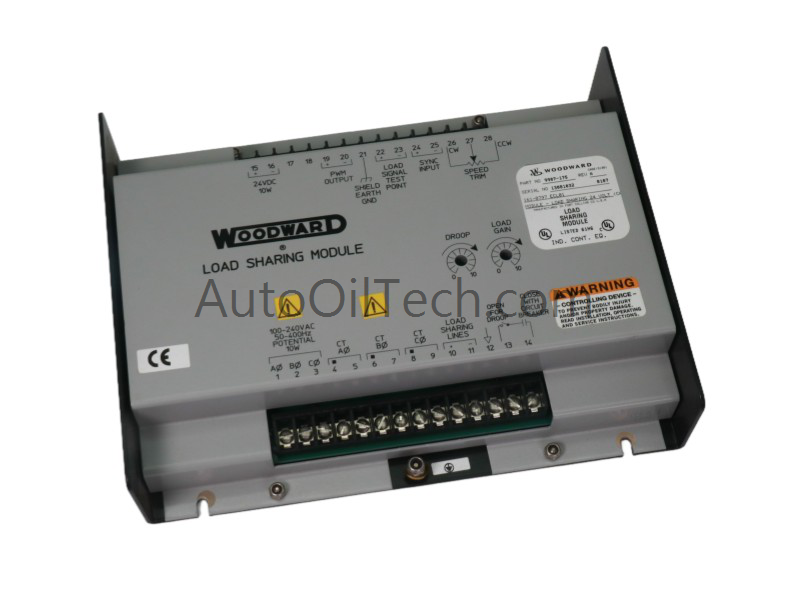

The Woodward 9907-175 Power Supply is a critical load sharing module designed for advanced power generation control. It enables seamless integration between Caterpillar speed controllers and engines managed by Woodward components, ensuring balanced operation across multiple units. Built for resilience, the 9907-175 provides robust protection against electrical anomalies while maintaining reliable performance in demanding environments.
Technical Specifications
Parameter
Value
Model Number
9907-175
Module Type
Power Supply / Load Sharing
Manufacturer
Woodward
Product Range
Woodward
Condition
Brand New
System
PLC
Dimensions
28 × 12 × 21 cm
Weight
0.96 kg
Input Voltage Range
18–32 VDC
Power Consumption
~5 W
Protection Features
Under-voltage, overvoltage >80 VDC, reverse voltage to -32 VDC
PT Inputs
Three-phase, 100–240 VAC
PT Input Burden
0.4–1.7 VA per phase
Enclosure
Beige, 273.6 × 214.1 × 59.2 mm
Communication Service
Ethernet router
HS Code
8537101190
Origin
USA
MOQ
1
Lead Time
In Stock
Lifecycle Status
Active
Functional Highlights
The Woodward 9907-175 module ensures precise load sharing between multiple generator systems. Its integrated three-phase PT inputs provide accurate voltage sensing, while advanced protection features safeguard against electrical faults. The sturdy enclosure design supports long-term reliability, though installation must be in controlled environments to avoid humidity or dust exposure.
Applications and Compatibility
The Woodward 9907-175 Power Supply is ideal for industrial power generation systems requiring synchronized load sharing. It integrates seamlessly with Caterpillar speed controllers and other Woodward modules, making it a trusted solution for balanced generator operation. Its compact design and robust protection features ensure dependable performance in critical energy applications.
