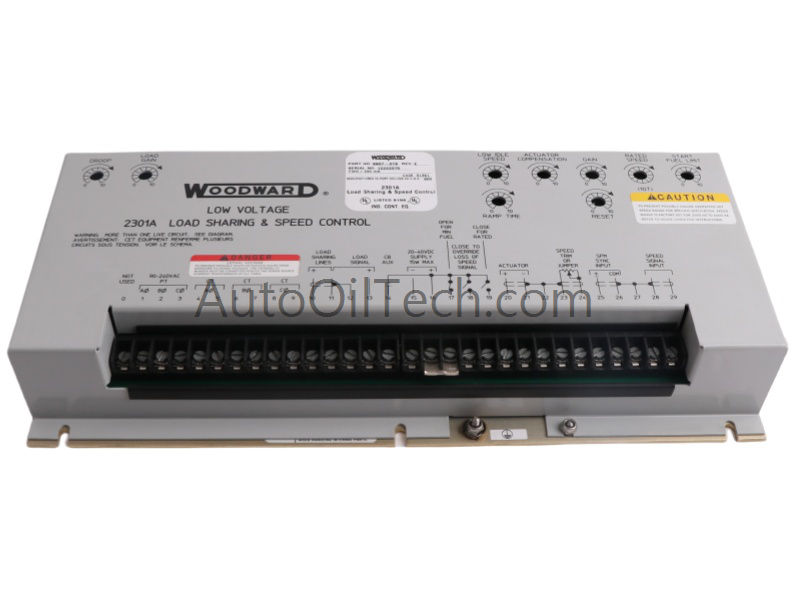

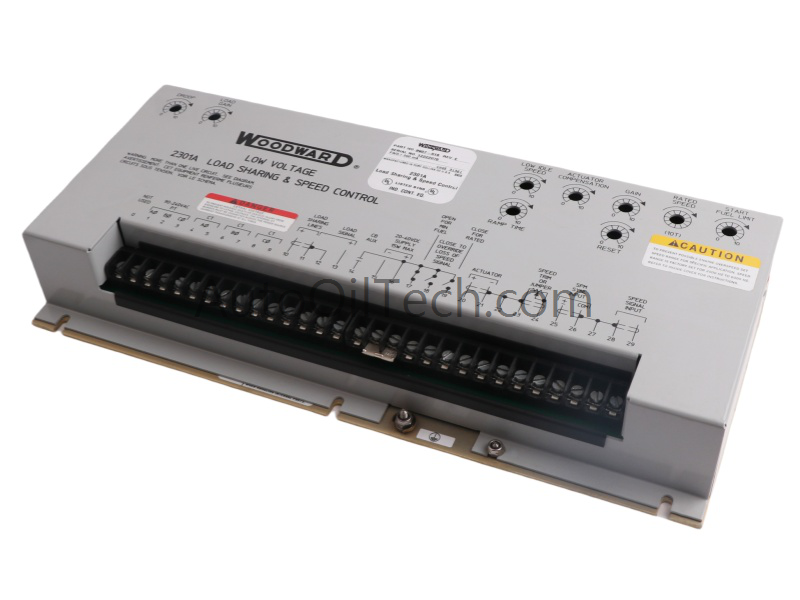

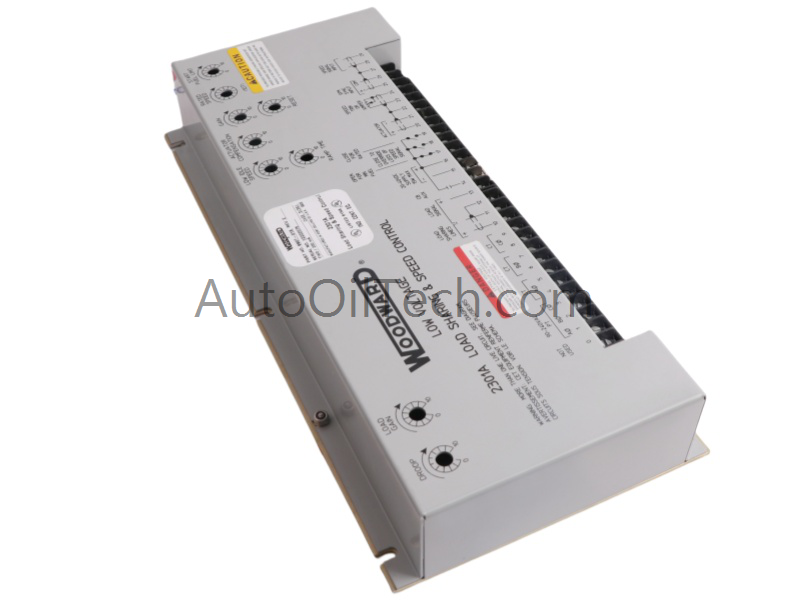

The Woodward 9907-018 Speed Control belongs to the 2301A series, designed for multi-unit generator systems. Operating at 20–40VDC, it delivers precise load sharing and speed regulation for diesel, gasoline, steam, and gas turbines. With ±0.25% speed stability and ±2% load sharing accuracy, the 9907-018 ensures reliable synchronization in parallel generator applications.
Technical Specifications
Parameter
Value
Model Number
9907-018
Module Type
Speed Control
Manufacturer
Woodward
Product Range
2301A Series
Condition
Brand New
System
PLC
Dimensions
10.8 × 20 × 6 cm
Weight
0.38 kg
Input Voltage Range
18–40 VDC
Actuator Signal
0–200 mA
Drive Capacity
Up to 2 A
Speed Stability
±0.25%
Load Sharing Accuracy
±2%
Load Sharing Signal
0–10 V / 4–20 mA
Speed Feedback
50 Hz–10 kHz
Power Consumption
<5 W
Certifications
CE, CSA
Operating Range
-40°C to +85°C
Storage Range
-50°C to +100°C
Communication Service
Ethernet router
HS Code
8537101190
Origin
USA
MOQ
1
Lead Time
In Stock
Lifecycle Status
Active
Functional Highlights
The Woodward 9907-018 Speed Control supports both isochronous and droop modes, enabling precise fuel metering device positioning. Its automatic start fuel limiting reduces engine wear and emissions, while the self-contained load sensor optimizes performance across wide temperature ranges. The front-panel interface with accessible potentiometers simplifies field servicing, ensuring quick adjustments and reduced downtime.
Applications and Compatibility
The Woodward 9907-018 Speed Control is ideal for base-loading against infinite buses or isolated bus operations. It excels in combined heat and power (CHP) systems and industrial backup power scenarios. Compatible with Woodward EG, PB, EGB, 2301, and TM actuators, the 9907-018 integrates seamlessly into existing generator control infrastructures, offering durability and efficiency for global power management applications.
