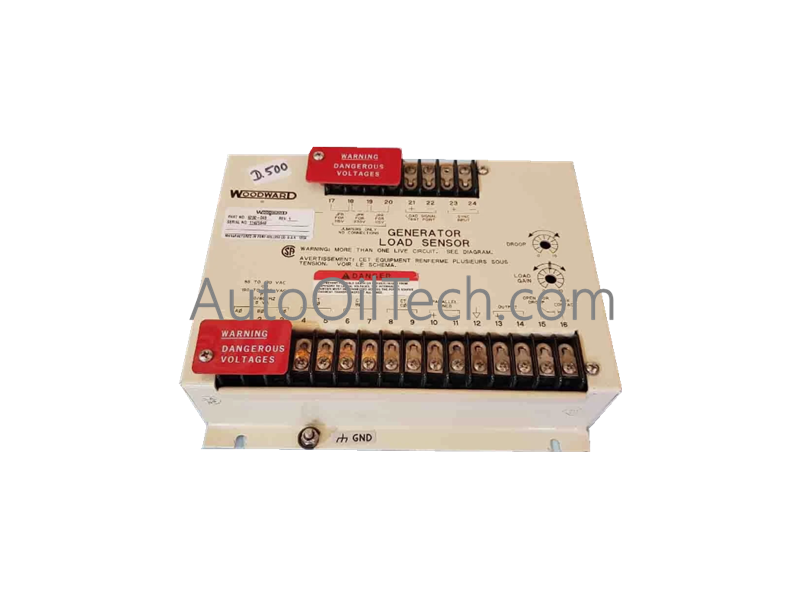

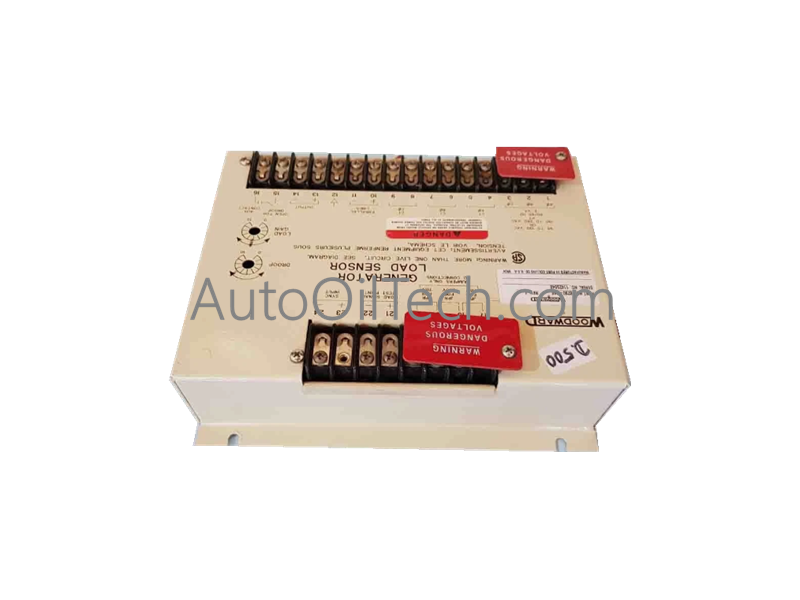

The Woodward 8290-048 Generator Load Sensor Module is engineered to monitor generator load conditions. It plays a critical role in load sharing and control by detecting electrical load levels, ensuring stable and efficient generator operation in Caterpillar power systems.
Specifications
Manufacturer: Woodward
Model: 8290-048
Type: Generator Load Sensor Module
Voltage Range: 90–150 VAC
Frequency Range: 50–60 Hz
Accuracy: ±1% of full scale
Output Signal: Analog DC signal
Response Time: <50 ms
Operating Temperature: -40°C to +85°C
Storage Temperature: -55°C to +105°C
Dimensions: 135 × 120 × 55 mm
Weight: ~0.88 kg
Housing Material: Metal enclosure
Origin: USA
Warranty: 12 months
Features
Precision Monitoring: Provides accurate generator load measurement for stable operation.
Fast Response: <50 ms response time ensures real-time load sensing.
Industrial Reliability: Wide operating temperature range for harsh environments.
Load Sharing Capability: Supports generator synchronization and load distribution.
Durable Construction: Metal housing for long-term industrial use.
Easy Installation: Panel-mounted design for Caterpillar generator systems.
