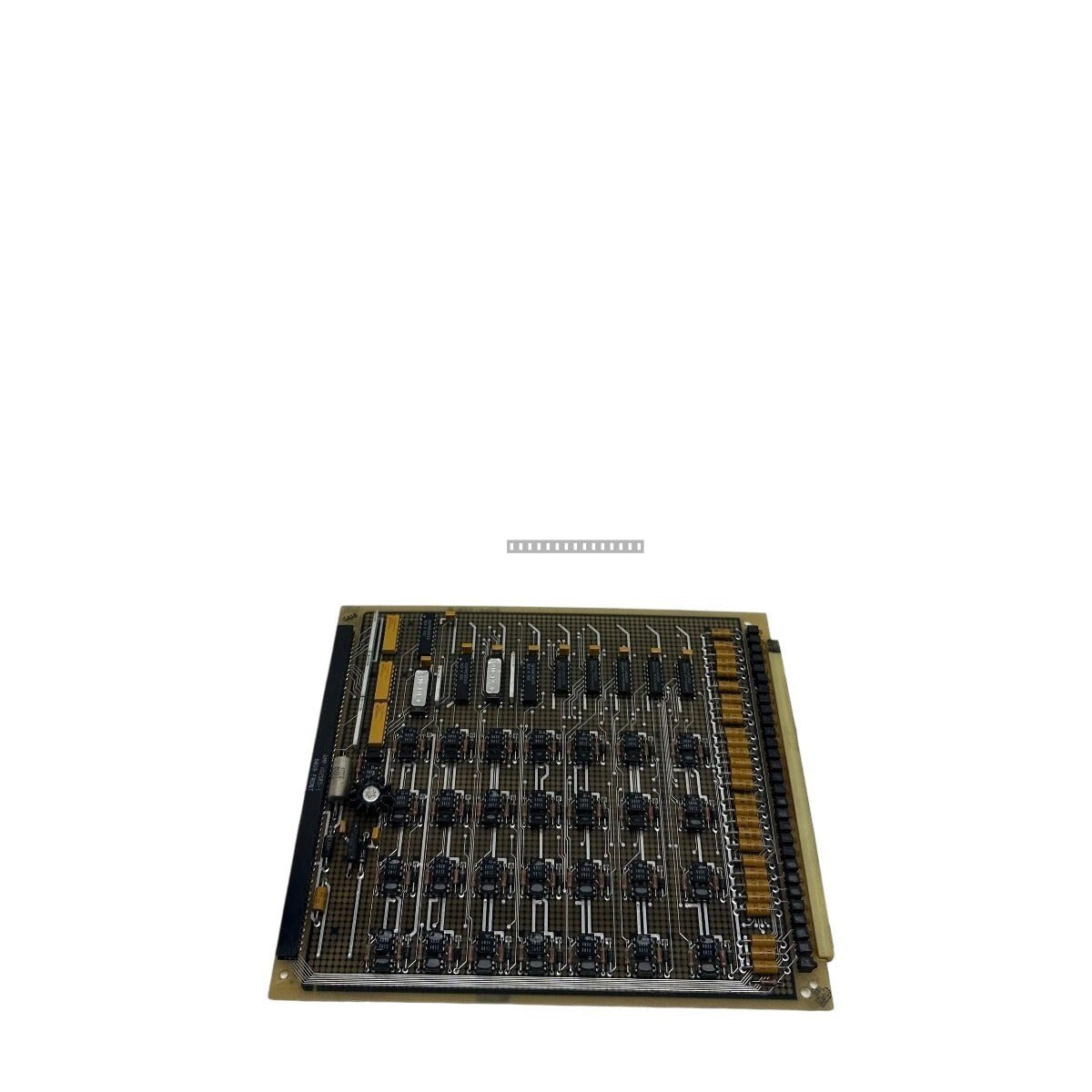

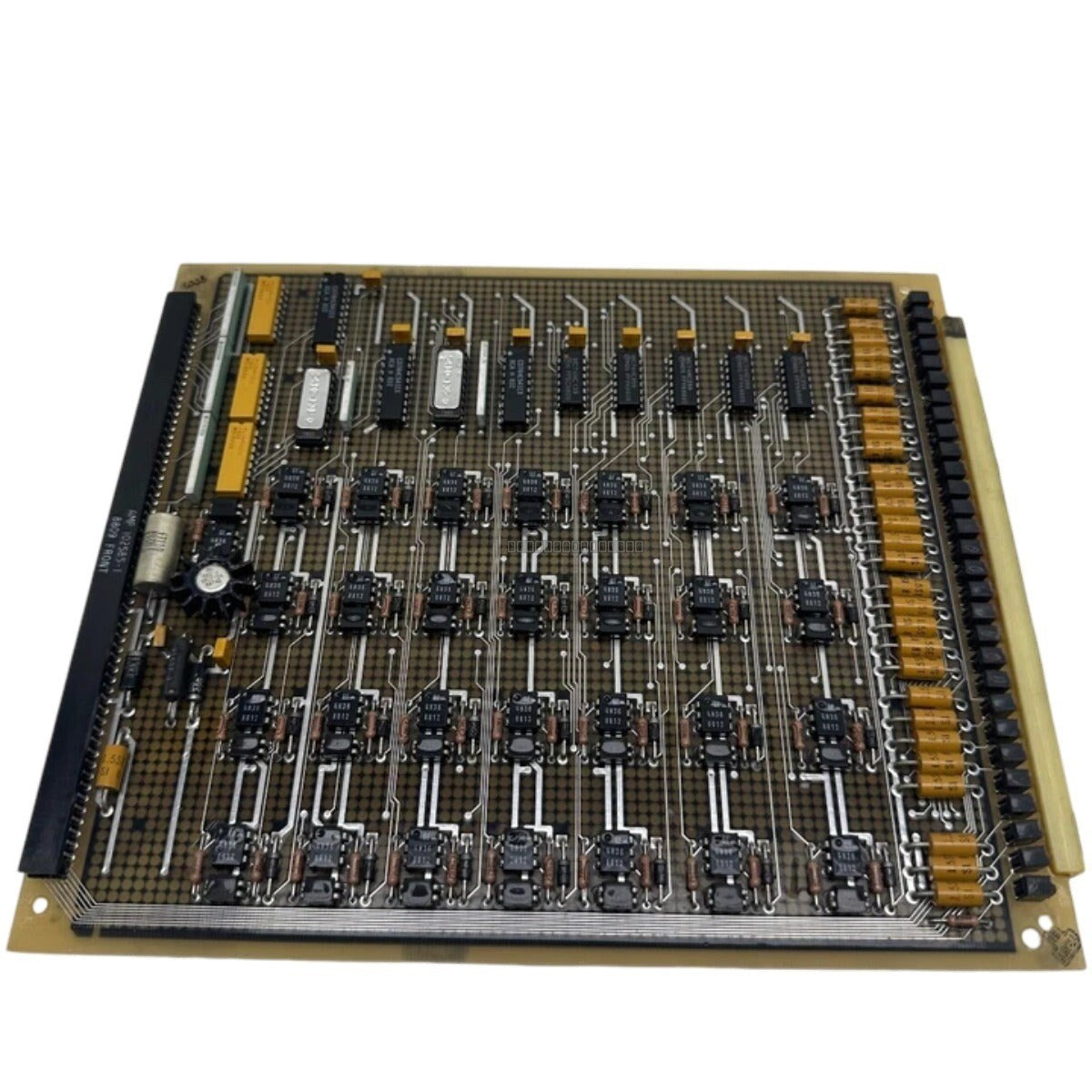

The Woodward 5462-758B is a high-density discrete output module designed for industrial control applications. This module provides 28 isolated discrete output channels, facilitating reliable signal distribution within Woodward control systems. Each channel features integrated LED status indication, allowing for rapid visual diagnostics and troubleshooting during system operation.
Features
28 isolated discrete output channels for robust signal management.
Integrated LED status indicators for each channel to simplify maintenance and monitoring.
Designed for 24 V dc rack supply operation.
High isolation rating of 500 V dc (channel-to-bus) to protect internal control circuitry.
Compact modular design suitable for standard industrial control racks.
Technical Specifications
Model
5462-758B
Output Channels
28 x isolated discrete
Rack Supply
24 V dc
Module Consumption
0.3 A @ 24 V
Isolation
500 V dc (channel-to-bus)
Operating Temperature
0 to +60 degC
Storage Temperature
-40 to +85 degC
Humidity
5-95% RH, non-condensing
Installation Guidelines
Ensure the control system is powered down before inserting or removing the module from the rack.
Handle the module using ESD-safe practices to prevent damage to sensitive internal components.
Ensure proper seating in the rack backplane to maintain reliable electrical connectivity.
Route output wiring away from high-voltage AC lines or high-EMI sources to prevent signal interference.
Verify that the 24 V dc power supply is stable and within the specified operating range before energizing the system.
FAQ
What does the LED indication on the 5462-758B signify?
The LEDs provide a visual status of the discrete output channels, indicating whether a specific channel is currently active or inactive, which assists in real-time system monitoring.
Is this module suitable for high-humidity environments?
The module is rated for 5-95% relative humidity (non-condensing). It should be installed in an environment that prevents moisture condensation on the circuit board.
