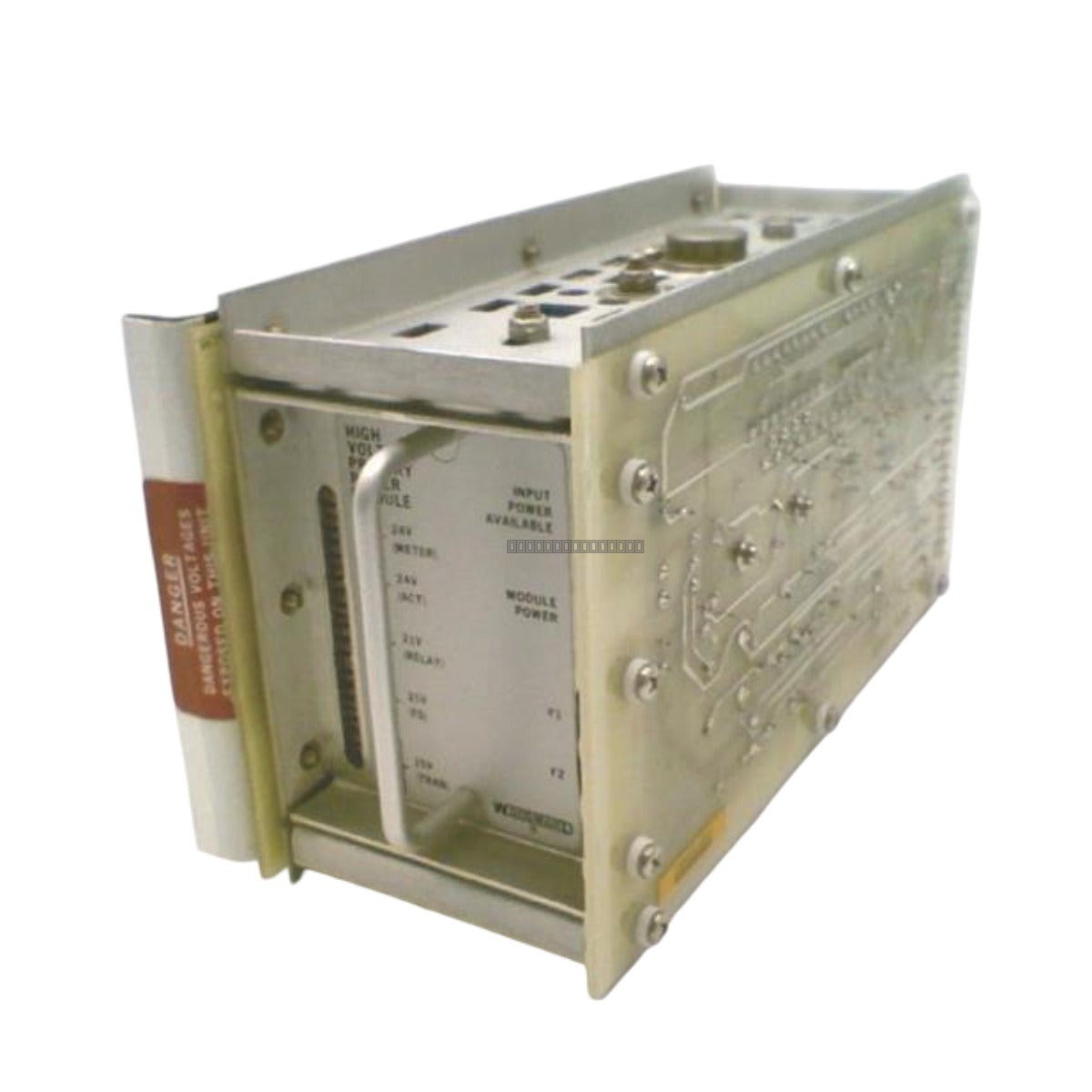

The Woodward 5461-290 is a high-performance power supply module engineered for critical control systems in demanding industrial environments. Designed primarily for integration within turbine control and engine management architectures, this module ensures stable high-voltage output for ignition systems and specialized actuator electronics. By providing consistent electrical regulation in heavy industries such as power generation, oil and gas, and marine propulsion, the 5461-290 significantly minimizes unplanned downtime and protects sensitive downstream components from voltage fluctuations.
Features
Advanced solid-state switching technology for high conversion efficiency.
Built-in electromagnetic interference (EMI) shielding to prevent signal corruption in high-density control cabinets.
Robust mechanical design optimized for thermal dissipation and vibration resistance.
Optimized for seamless integration within Woodward-based control loops.
Passive natural convection cooling, eliminating the need for external fans.
Applications
This module is specifically designed for use in mission-critical industrial applications, including:
Turbine control systems
Engine management and ignition systems
Excitation circuits
Marine propulsion control
Power generation control architectures
Technical Specifications
Model
5461-290
Brand
Woodward
Product Type
High Voltage Power Supply Module
Operating Temperature
-40 to +70 deg C
Cooling Method
Passive Natural Convection
Weight
0.91 kg
Installation Guidelines
Ensure the module is installed in a clean, dry environment within the specified temperature range of -40 to +70 deg C.
Mount the unit securely to allow for adequate natural convection cooling; avoid obstructing airflow around the module.
Use shielded cabling for all I/O connections to maintain the integrity of the EMI shielding.
Always disconnect power from the system before inserting or removing the module to prevent electrical arcing or damage to the backplane connectors.
Ensure proper grounding of the control cabinet to mitigate noise and protect against transient voltage spikes.
FAQ
What is the primary function of the Woodward 5461-290?
The 5461-290 is a specialized power supply module designed to provide stable, high-voltage output for ignition systems and actuator electronics within Woodward turbine and engine control systems.
Is this module suitable for high-vibration environments?
Yes, the 5461-290 is engineered with vibration resistance in mind, making it suitable for deployment in heavy industrial settings such as marine propulsion and power generation plants.
Does this module require active cooling?
No, the module utilizes passive natural convection for cooling. Ensure that the installation location allows for sufficient airflow to maintain the operating temperature within the specified limits.
