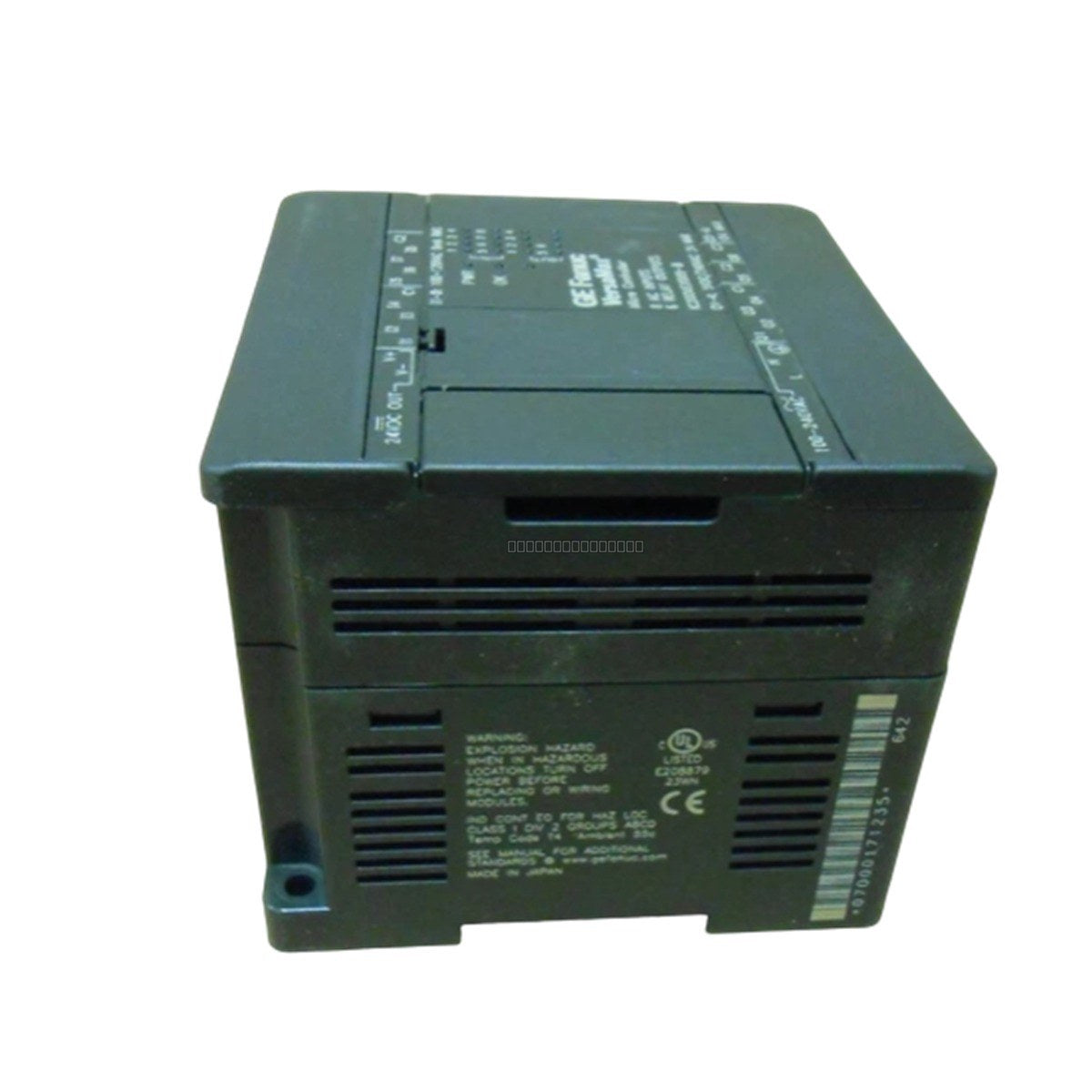

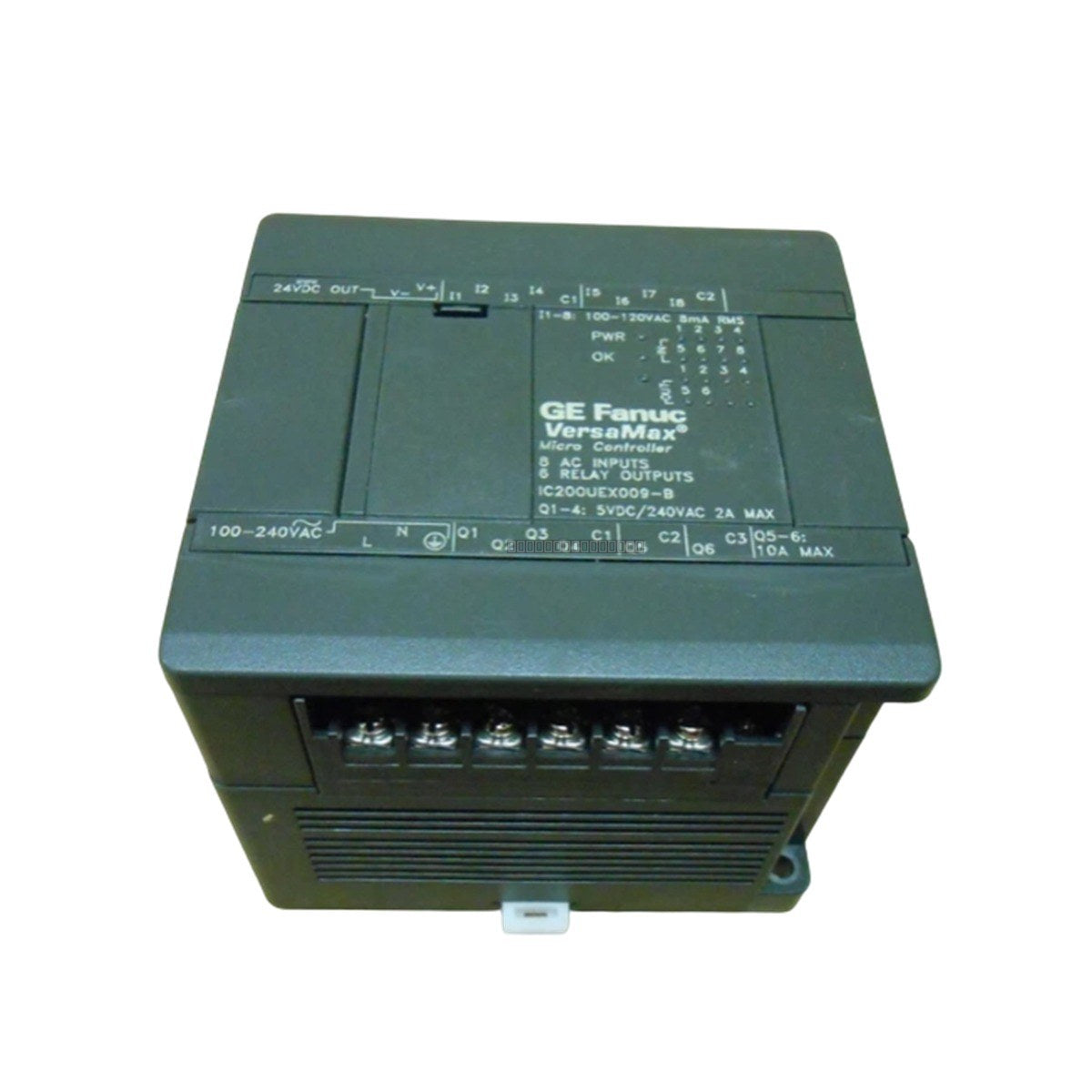

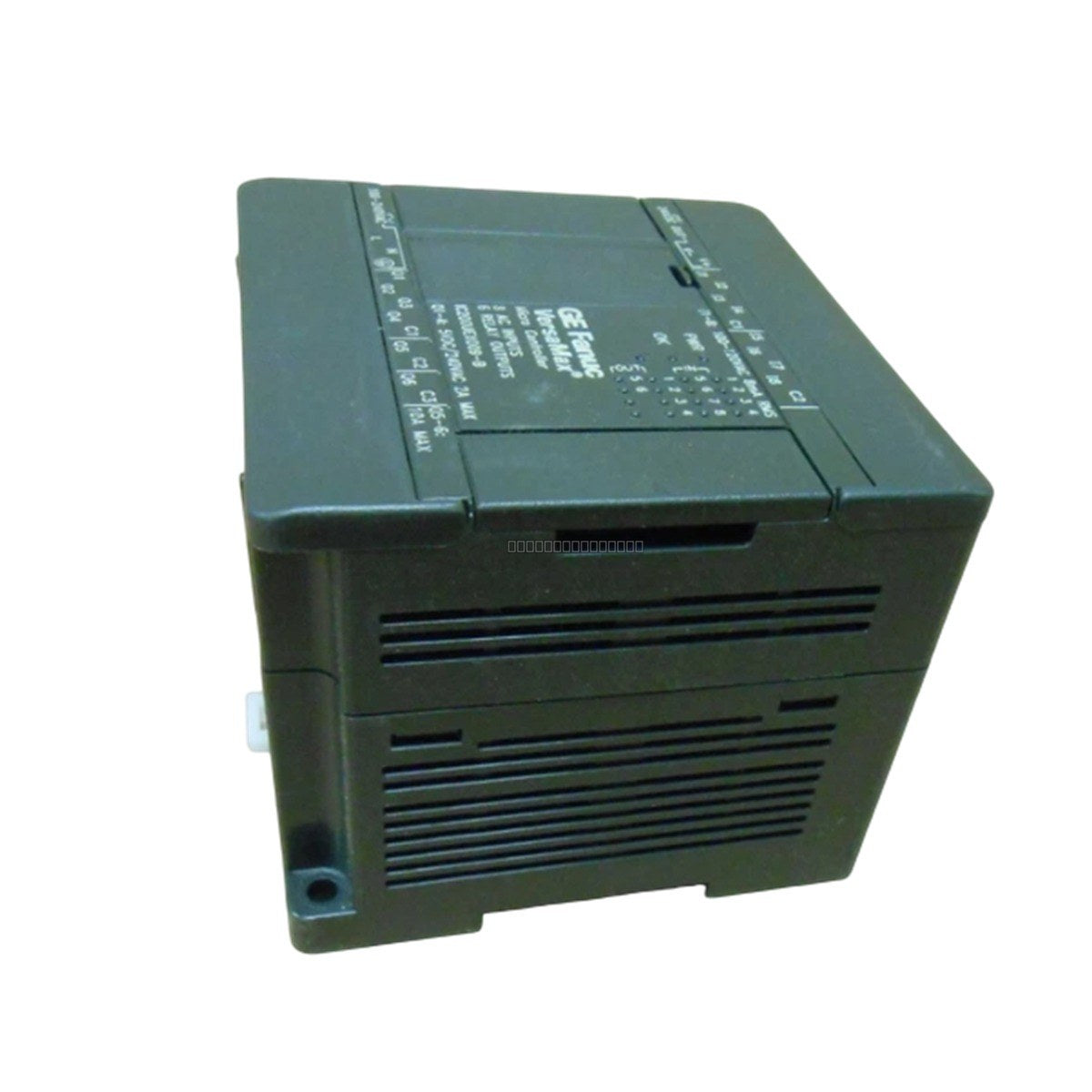

The GE Fanuc IC200UEX009 is a 14-point I/O expansion unit engineered for the VersaMax Micro PLC series. This module provides additional local I/O capacity for micro controllers in decentralized automation applications, including material handling, water treatment, and auxiliary power systems. By integrating mixed input and output types into a single compact chassis, the IC200UEX009 helps optimize cabinet space and reduce overall hardware footprint.
Features
Provides 14 total expansion I/O points for VersaMax Micro systems.
Features 8 AC inputs and 6 relay outputs for versatile field device control.
Integrated wide-range AC power supply (100 to 240 VAC) eliminates the need for external step-down transformers.
High-speed expansion bus interface for seamless communication with the master CPU.
Rugged screw-type terminals designed to withstand industrial vibration and thermal cycling.
Applications
This expansion unit is suitable for various industrial automation tasks, such as:
Material handling and conveyor control systems.
Water and wastewater pumping station monitoring.
Auxiliary power generation and distribution management.
General-purpose machine control requiring compact I/O expansion.
Technical Specifications
Model
IC200UEX009
Product Line
VersaMax Micro
Total I/O Points
14
Input Type
8 AC Inputs
Output Type
6 Relay Outputs
Power Supply
100 to 240 VAC
Connection Type
Screw Terminals
Operating Temperature
0 to 60 deg C
Storage Temperature
0 to 70 deg C
Installation Guidelines
Ensure the PLC system is powered down before connecting or disconnecting the expansion unit.
Mount the unit on a standard DIN-rail or panel as specified by the VersaMax Micro installation manual.
Use shielded cables for I/O signals to minimize EMI interference in high-noise industrial environments.
Maintain adequate clearance around the module to ensure proper ventilation and heat dissipation.
Follow standard ESD (Electrostatic Discharge) handling procedures when touching internal components or terminals.
FAQ
Is the IC200UEX009 compatible with all VersaMax Micro CPUs?
The IC200UEX009 is designed for the VersaMax Micro series. Please verify your specific CPU model's expansion bus compatibility in the system manual before installation.
Does this module require an external power supply?
No, the unit features a built-in wide-range AC power supply (100 to 240 VAC) for direct connection to utility power.
