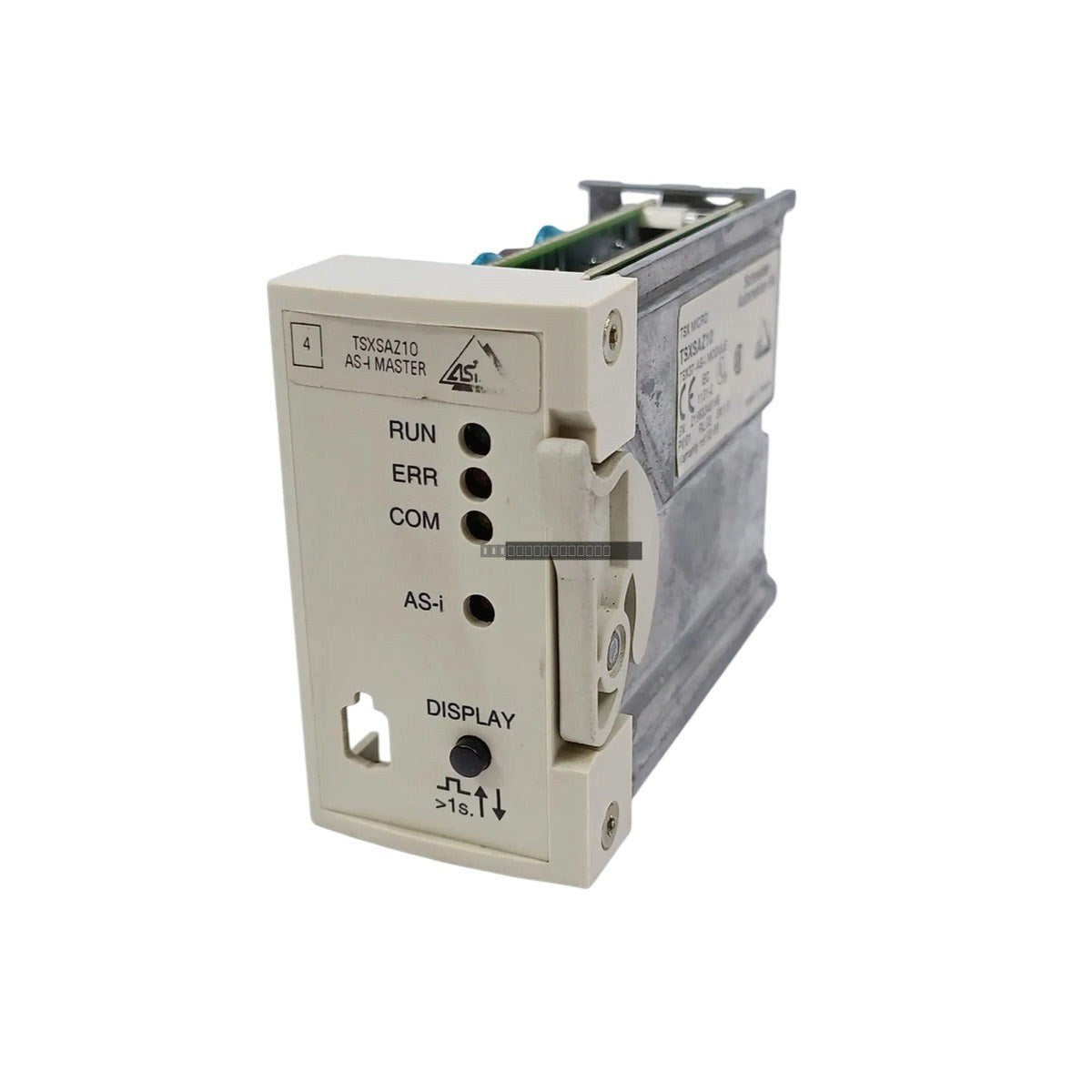

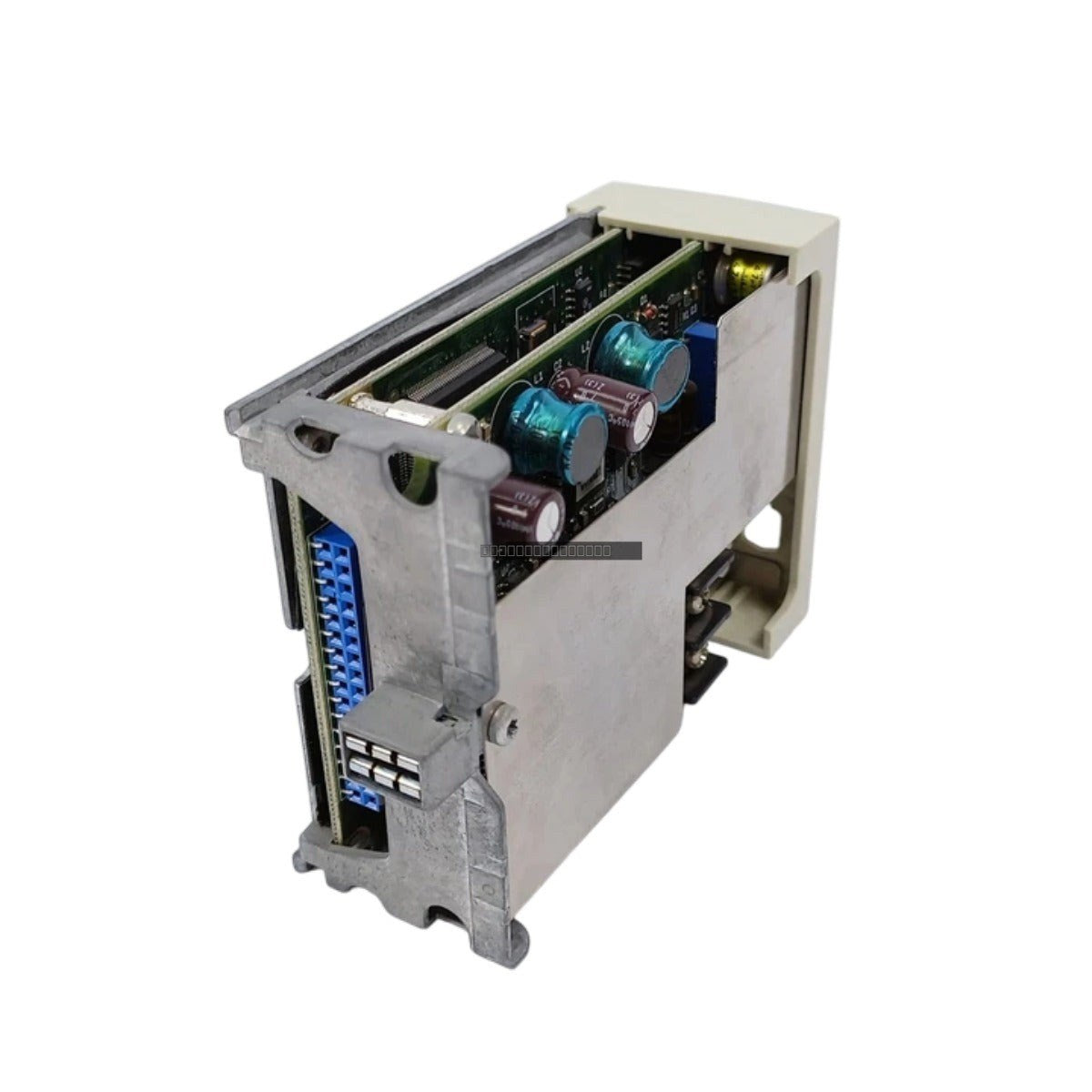

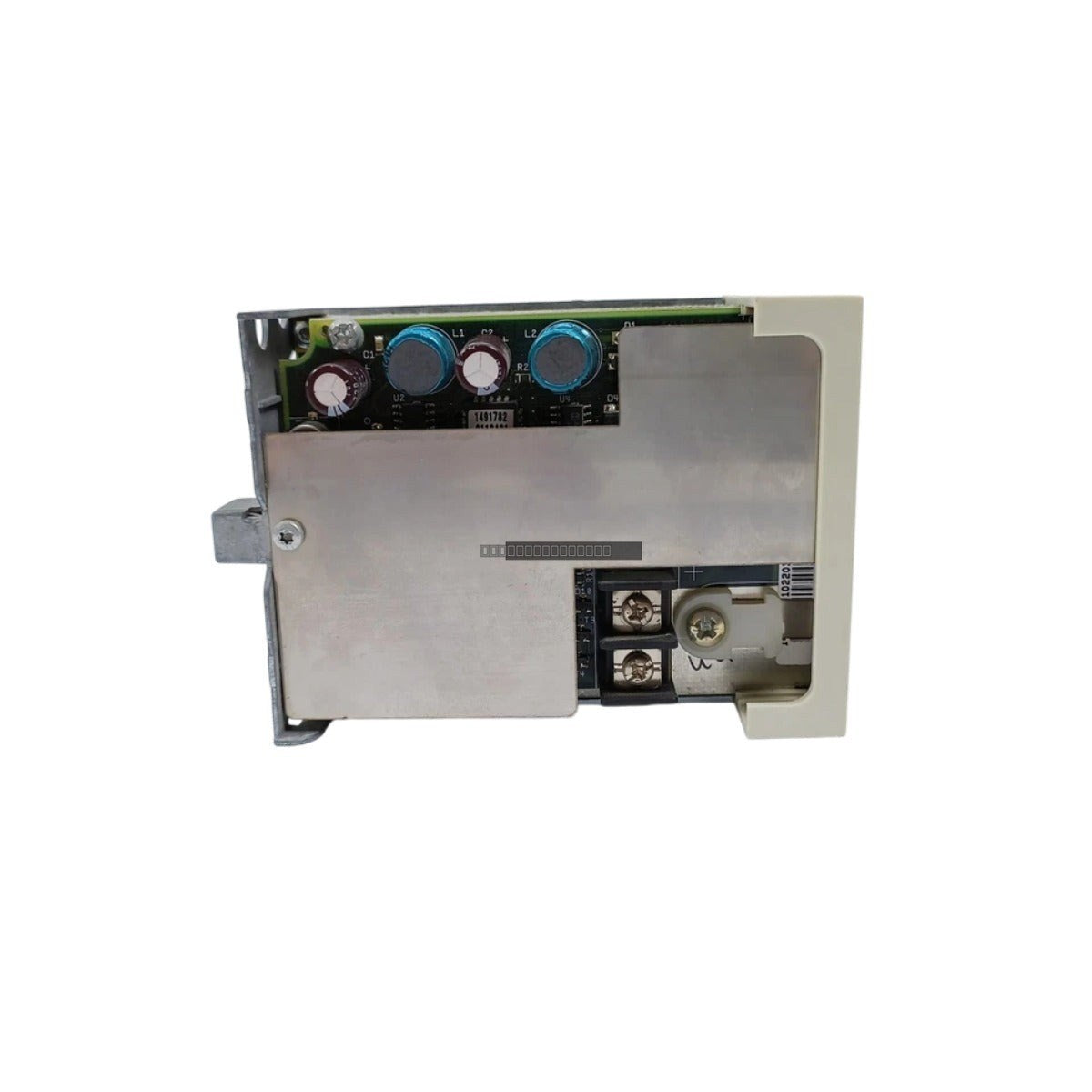

The TSXSAZ10 is a specialized AS-Interface master module designed for integration with the Schneider Electric TSX Micro PLC series. This module serves as the primary communication gateway between the PLC controller and up to 31 AS-Interface field devices, facilitating efficient, real-time data exchange in demanding industrial automation environments. By streamlining the connection of sensors and actuators, it reduces field wiring complexity and enhances overall system reliability.
Features
Dedicated AS-Interface master functionality for TSX Micro PLC systems.
Supports communication with up to 31 server devices on the AS-Interface network.
Optimized for low-latency scanning to ensure rapid control logic execution.
Compact design for seamless mounting on the TSX Micro PLC backplane.
Applications
This module is suitable for various industrial applications requiring distributed I/O management, including chemical processing plants, large-scale manufacturing lines, and automated material handling systems where reliable, real-time signal integration is essential.
Technical Specifications
Model
TSXSAZ10
Manufacturer
Schneider Electric
Product Line
TSX Micro PLC
Module Type
AS-Interface Master Module
Communication Capacity
Up to 31 server devices
Discrete Inputs
4
Discrete Outputs
4
Operating Temperature
0 to 60 deg C
Mounting
TSX Micro PLC backplane
Installation Guidelines
Ensure the PLC power supply is disconnected before installing or removing the module from the backplane.
Verify that the module is securely seated in the designated slot to ensure proper electrical contact with the backplane bus.
Use shielded cabling for AS-Interface network connections to minimize susceptibility to electromagnetic interference (EMI).
Maintain adequate spacing within the control cabinet to allow for proper ventilation and heat dissipation, keeping the ambient temperature within the 0 to 60 deg C range.
Follow standard ESD (Electrostatic Discharge) handling procedures when touching the module circuitry.
FAQ
What is the primary function of the TSXSAZ10? The TSXSAZ10 acts as an AS-Interface master module, allowing the TSX Micro PLC to communicate with and control up to 31 field devices over an AS-Interface network.
How many I/O points does this module provide? The module features 4 discrete inputs and 4 discrete outputs for direct signal integration.
