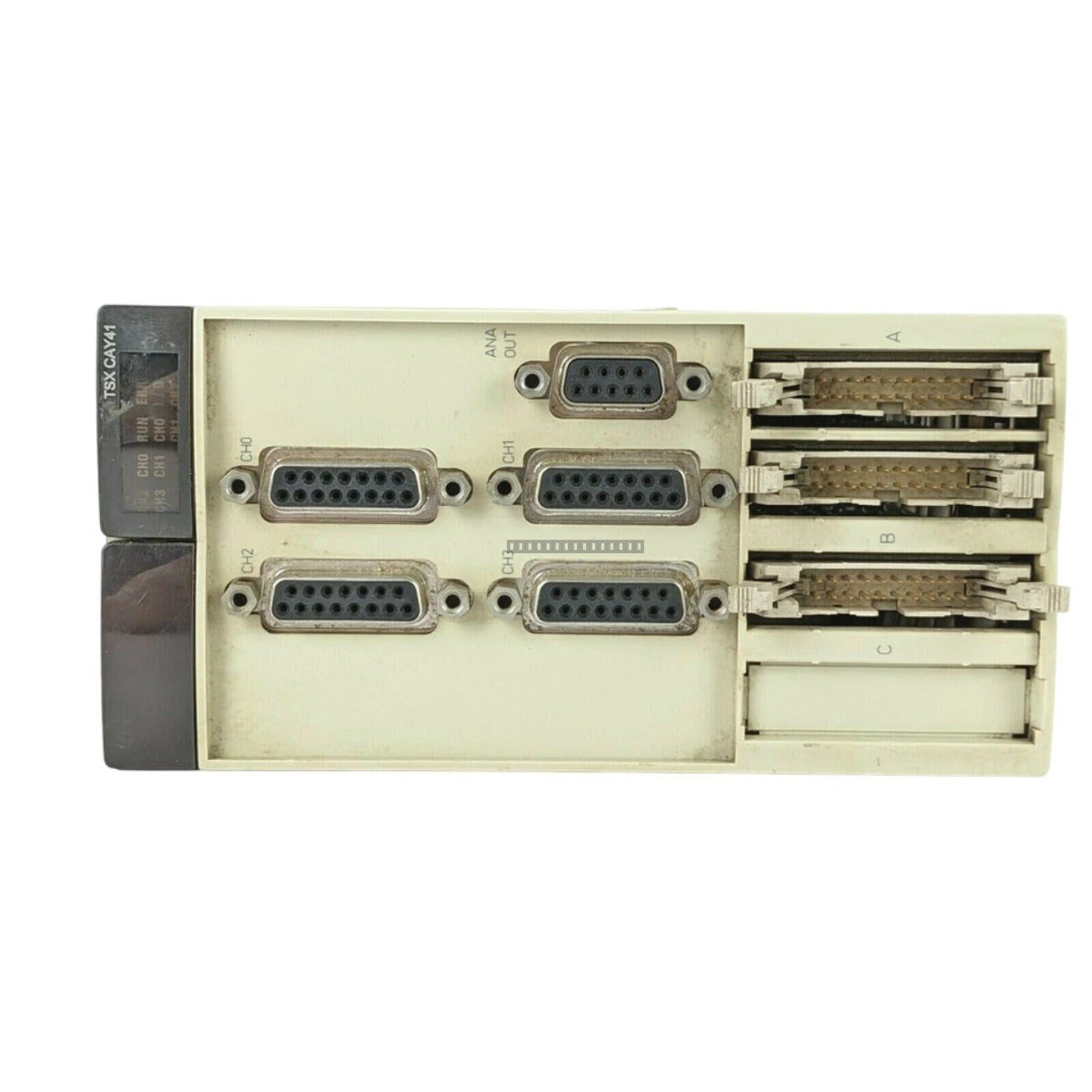

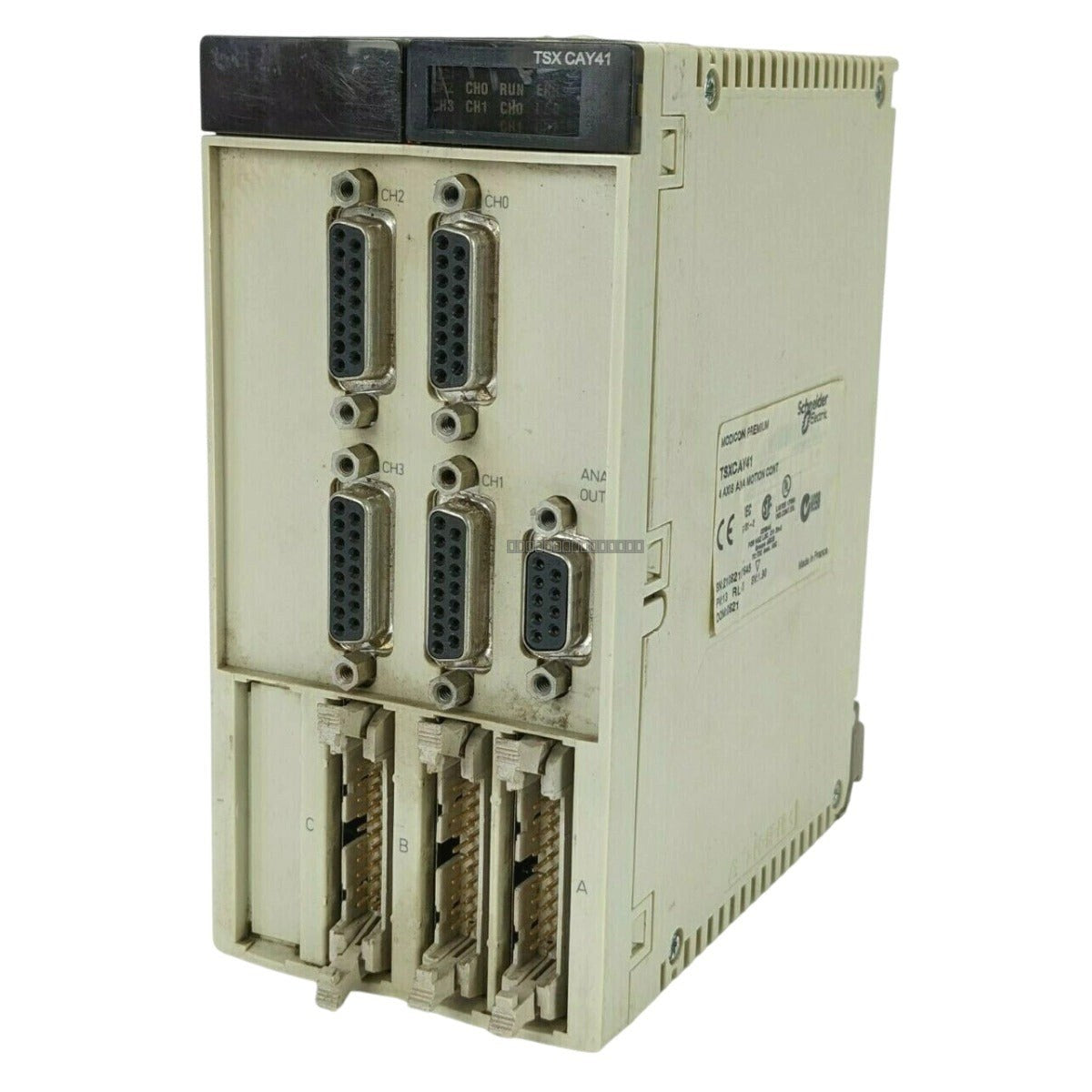

The Schneider Electric TSXCAY41 is a specialized motion control module designed for the Modicon Premium automation platform. It provides high-performance servo motor control capabilities, supporting up to four axes of motion. The module is engineered for diverse industrial applications, offering flexible operating modes including automatic, manual, and direct drive configurations to suit specific project requirements.
Features
Supports up to 4 axes of motion control.
Integrated proportional servo loop with overshoot compensation and gain switching.
Supports SSI absolute encoders (up to 200 kHz) and incremental encoders (up to 1000 kHz).
Configurable motion profiles including trapezoidal and parabolic implementations.
Adjustable acceleration times ranging from 8 ms to 10 seconds.
Positioning resolution between 0.5 and 1000 units per point.
Acquisition speed ranging from 54,000 to 270,000 points per minute.
Compatible with 10-30V and 5V DC incremental encoders.
Technical Specifications
Manufacturer
Schneider Electric
Product Line
Modicon Premium
Part Number
TSXCAY41
Power Consumption
10 to 17 W
Weight
0.45 kg
Installation Guidelines
Ensure the PLC rack is powered down before inserting or removing the TSXCAY41 module to prevent electrical damage.
Mount the module in a clean, dry environment within the specified operating temperature range.
Use shielded cabling for encoder inputs to minimize electromagnetic interference (EMI) in high-noise industrial environments.
Ensure proper grounding of the module chassis to the control cabinet backplane to maintain signal integrity.
Verify that all I/O wiring is securely terminated and conforms to local electrical codes.
FAQ
What type of encoders are compatible with the TSXCAY41? The module supports SSI absolute encoders (16 to 25 bits) and incremental encoders operating on 5V or 10-30V DC signals.
How many axes can this module control? The TSXCAY41 is capable of managing up to four axes of motion.
Which platform is this module designed for? This module is part of the Schneider Electric Modicon Premium automation platform.
