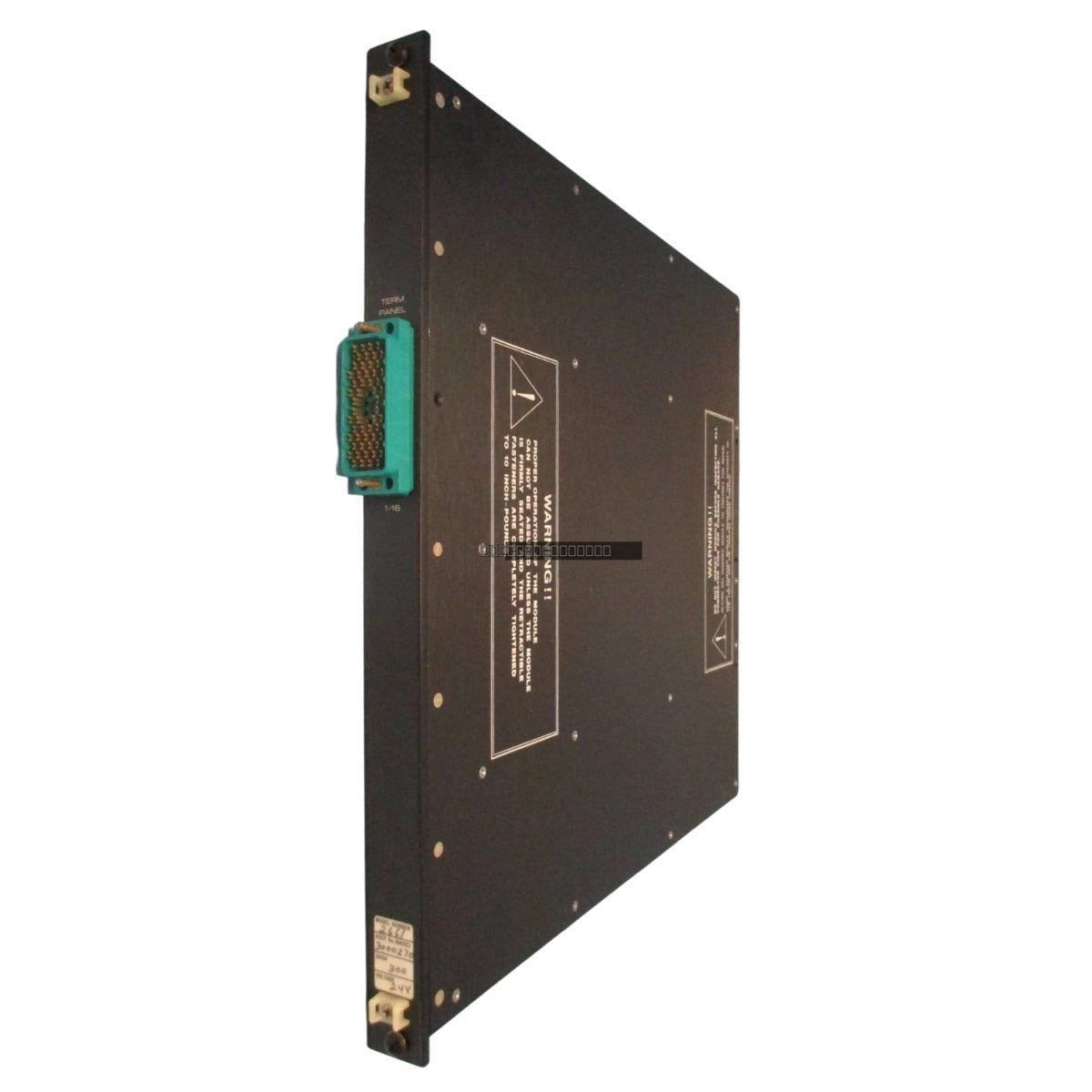

Triconex 2661 Relay External Terminator

Description

The Triconex 2661 is an engineered relay external terminator module specifically developed for signal management within Triconex safety and control systems. This component serves as a critical interface between field instrumentation and the controller, providing signal termination that minimizes signal reflection and mitigates electrical noise. By maintaining signal integrity at the field-to-controller boundary, the 2661 supports the continued reliability of legacy control infrastructures in demanding industrial environments, including power generation and automated manufacturing sectors.

Features

• Provides essential signal termination to reduce electrical interference and signal degradation.
• Optimized for 24 VDC signal levels, ensuring compatibility with standard field instrumentation.
• Robust hardware design provides a reliable physical buffer, protecting sensitive controller I/O from voltage transients and ground loops.
• High-durability relay components facilitate consistent switching and signal routing under varied industrial load conditions.
• Designed for integration into standard rack configurations to simplify maintenance and system verification.

Applications

This module is primarily utilized in industrial control loops where legacy Triconex systems require precise signal termination. It is commonly deployed in safety-critical applications such as emergency shutdown systems, process automation, and monitoring infrastructure where data integrity is paramount.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before installing or removing the 2661 module to prevent electrical damage.
• Verify that all field wiring is properly secured to the termination points to avoid intermittent signal loss.
• Handle the module using standard ESD (Electrostatic Discharge) safety protocols to prevent damage to internal circuitry.
• Ensure the installation environment meets the specified operating temperature range of 0 to 60 degC to maintain component longevity.
• Maintain proper grounding practices to maximize the effectiveness of the module's electrical noise suppression capabilities.

FAQ

Is the Triconex 2661 still supported by the manufacturer?

The 2661 is considered a legacy component. While it may be discontinued by the original manufacturer, it remains a critical spare for maintaining existing control systems, and we provide these units to help operators extend the life of their current infrastructure.

What is the primary function of the 2661 terminator?

The module acts as a signal terminator and physical buffer, which prevents signal reflection and protects the controller's input/output channels from electrical noise and voltage spikes originating from field devices.
