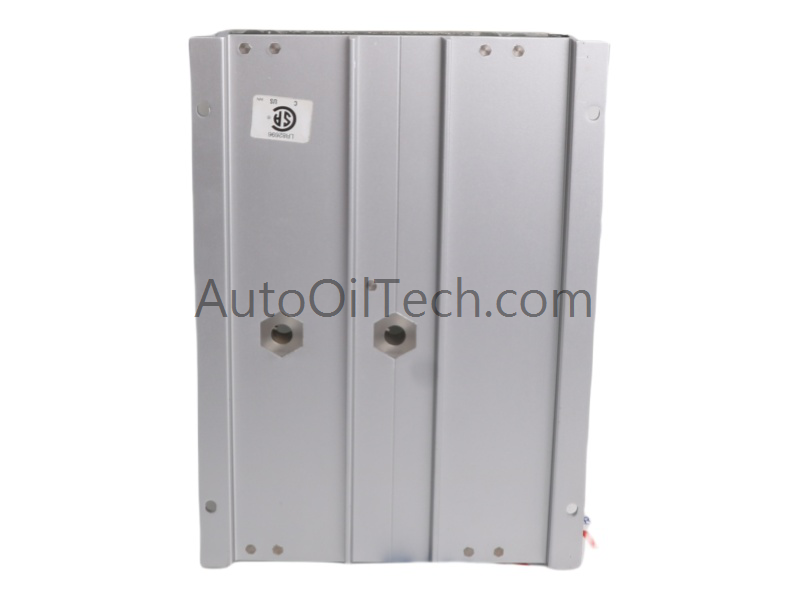

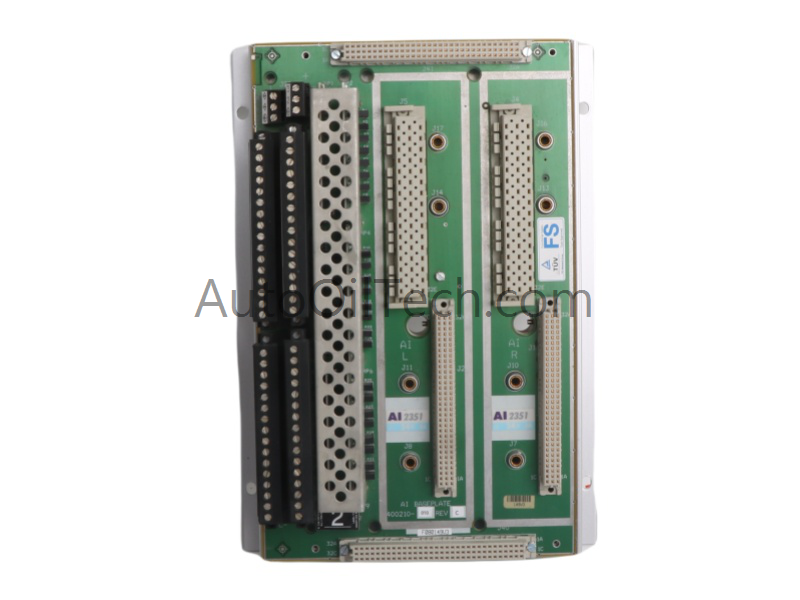

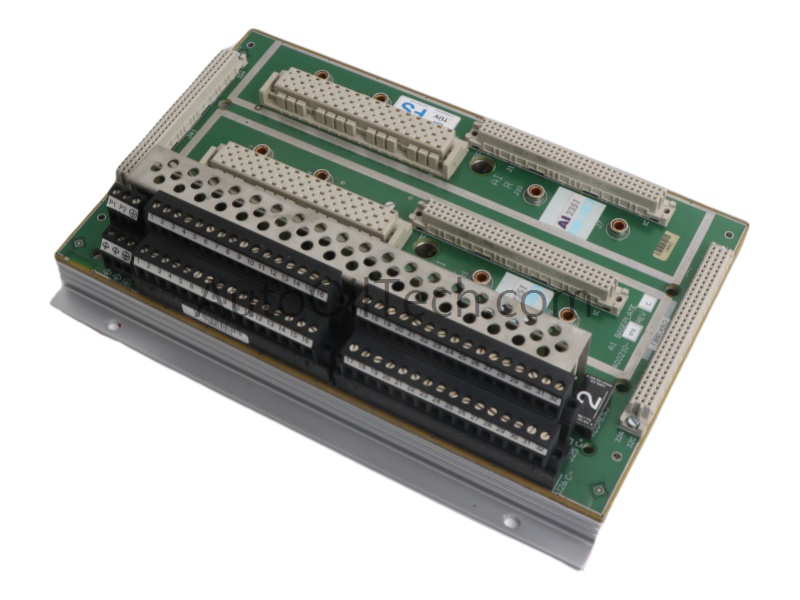

The Triconex 7400210-010 AI2351 Analog Input Baseplate is a precision-engineered 16-channel module designed for Tricon v9–v11 safety systems. It supports both current (4–20 mA / 0–20 mA) and voltage (0–10 V / ±10 V) inputs, delivering ±0.1% accuracy with 16-bit resolution for high-integrity signal acquisition.
Technical Specifications
Parameter
Specification
Model Number
7400210-010 AI2351
Manufacturer
Triconex
Product Series
Tricon Systems
Module Type
Analog Input Baseplate
System Compatibility
DCS / Tricon v9–v11
Input Channels
16
Input Signal Types
4–20 mA / 0–20 mA / 0–10 V / ±10 V
Accuracy
±0.1%
Resolution
16-bit
Isolation
1500 V AC/DC channel-to-channel
Fault Current
Max 200 mA
Power Consumption
Typical 130 mA
Communication
Ethernet router / HART support
Operating Temp
–40°C to +70°C
Storage Temp
Up to 85°C
Dimensions
24.7 × 23 × 6 cm
Weight
1.3 kg
HS Code
8537101190
Condition
Brand New
Lead Time
In Stock
Minimum Order
1 unit
Country of Origin
USA
Lifecycle Status
Active
Key Features
16 analog input channels with ±0.1% accuracy and 16-bit resolution
Supports both current and voltage signal types for flexible sensor integration
SIL3 certified for safety-critical process monitoring and shutdown systems
HART-enabled for advanced diagnostics and device configuration
Hot-swappable design allows maintenance without interrupting operations
Vibration-resistant and corrosion-protected for harsh industrial environments
