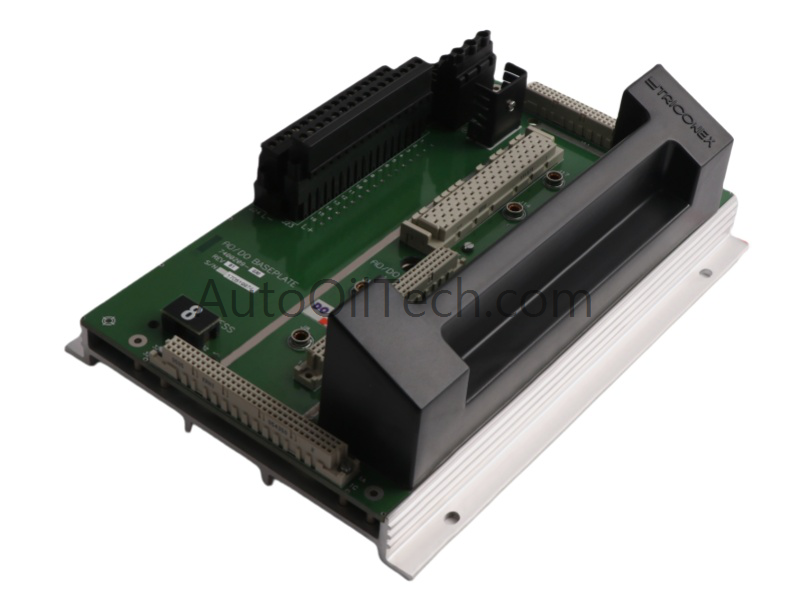

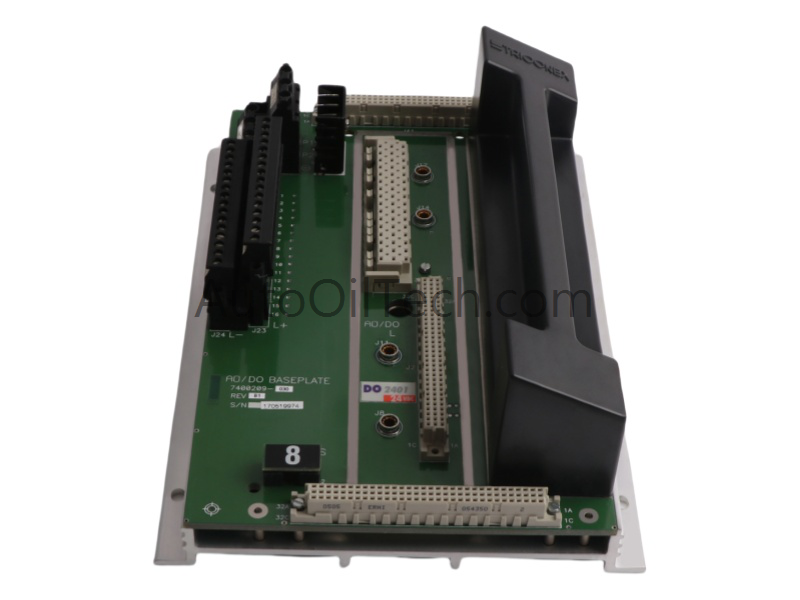

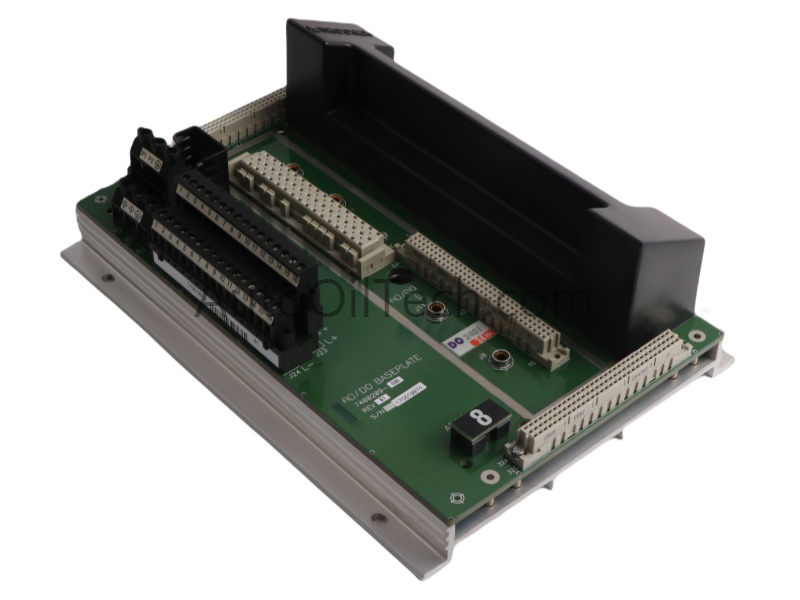

The Triconex 7400209-030 DO2401 Digital Output Baseplate is a fault-tolerant 32-channel module designed for Tricon v10–v11 safety systems. It delivers 24–48 VDC outputs at 500 mA per channel, ensuring reliable control in emergency shutdown and protection systems.
Technical Specifications
Parameter
Specification
Model Number
7400209-030 DO2401
Manufacturer
Triconex
Product Series
Tricon Systems
Module Type
Digital Output Baseplate
System Compatibility
DCS / Tricon v10–v11
Output Channels
32
Output Voltage
24–48 VDC
Channel Capacity
500 mA per channel
Isolation
1500 V AC/DC channel-to-channel
Response Time
≤50 ms
Diagnostics
LED indicators, TRISTATION 1131
Fail-Safe States
Configurable per channel
Communication
Ethernet router
Operating Temp
–40°C to +70°C
Dimensions
26.8 × 17.8 × 8 cm
Weight
1.34 kg
HS Code
8537101190
Condition
Brand New
Lead Time
In Stock
Minimum Order
1 unit
Country of Origin
USA
Lifecycle Status
Active
Key Features
32-channel digital output with 24–48 VDC range and 500 mA capacity per channel
Triple Modular Redundancy ensures fault-tolerant operation in safety-critical systems
Optical isolation prevents signal interference in high-noise environments
Hot-swappable design allows maintenance without interrupting operations
LED diagnostics and TRISTATION 1131 support enable fast fault identification
Configurable fail-safe states enhance reliability in shutdown and protection systems
