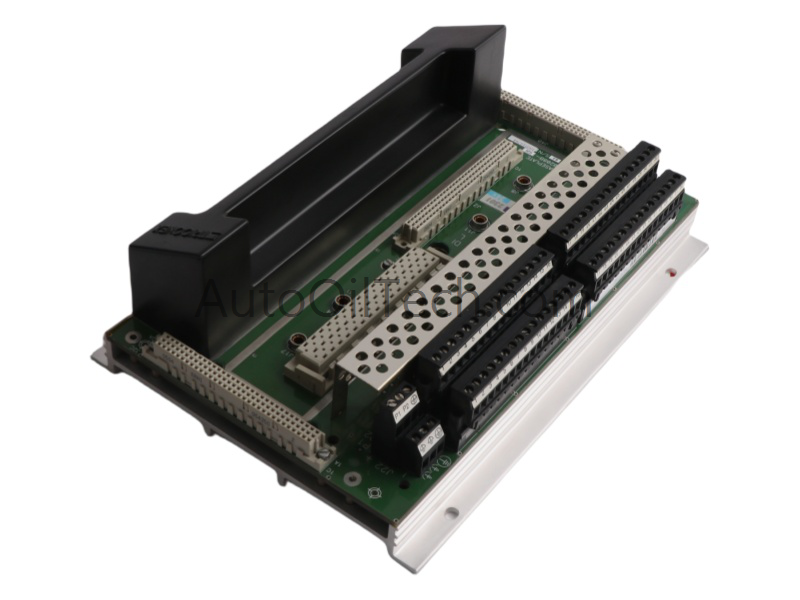

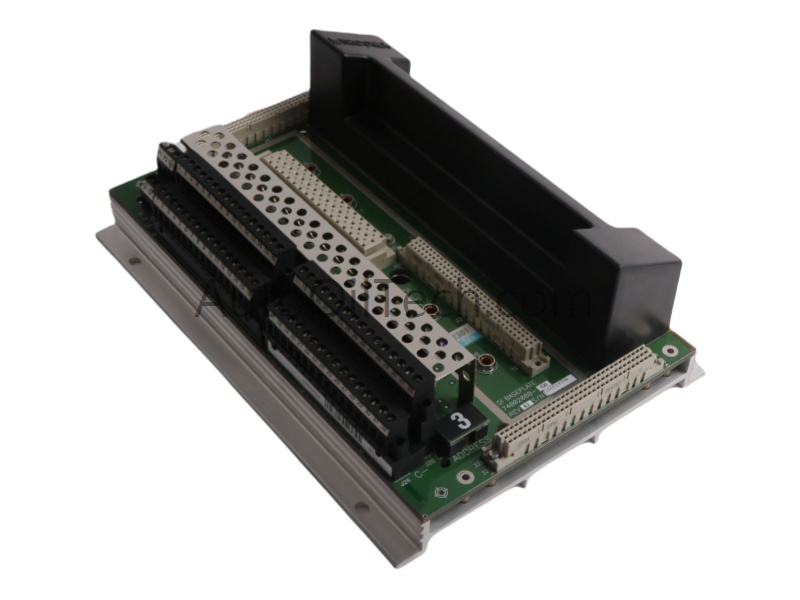

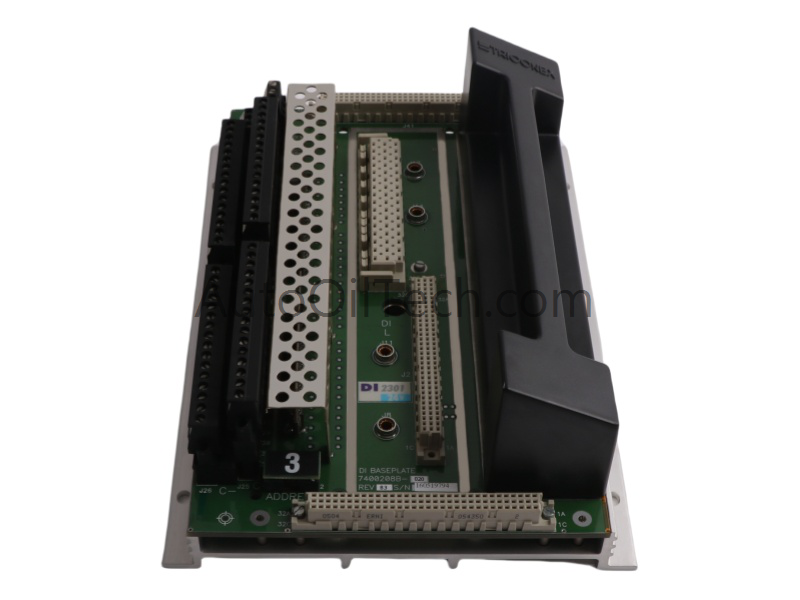

The Triconex 7400208B-020 DI2301 Card Module delivers high-speed, fault-tolerant digital input processing for Tricon v10–v11 safety systems. With <10 ms response time and 1500 V AC/DC isolation, it ensures secure signal acquisition in hazardous industrial environments.
Technical Specifications
Parameter
Specification
Model Number
7400208B-020 DI2301
Manufacturer
Triconex
Product Series
Tricon Systems
Module Type
Card Module (Digital Input)
System Compatibility
DCS / Tricon v10–v11
Input Channels
32
Input Voltage
24 VDC (15–30 V ON / 0–5 V OFF)
Channel Isolation
1500 V AC/DC
Response Time
<10 ms
Fault Current
Max 200 mA
Power Consumption
Typical 130 mA
Communication
Ethernet router
Diagnostics
LED indicators per channel
Operating Temp
–40°C to +70°C
Dimensions
24.8 × 17.8 × 8 cm
Weight
1.34 kg
HS Code
8537101190
Condition
Brand New
Lead Time
In Stock
Minimum Order
1 unit
Country of Origin
USA
Lifecycle Status
Active
Key Features
32-channel digital input with SIL3 safety certification
Hot-swappable design enables maintenance without system shutdown
LED diagnostics streamline fault identification and troubleshooting
Compact form factor supports high-density cabinet installations
Applications & Compatibility
The Triconex DI2301 is ideal for turbine control, fire and gas systems, and emergency shutdown applications. It integrates with TRISTATION 1131 engineering tools and supports Tricon v10–v11 platforms.
